ZOOMJO Group will customize silica ore processing solutions based on your ore type to maximize the recovery of silica concentrate. We also provide laboratory beneficiation test. Common silica ore processing methods: silica flotation separation process.
Silicon ore (quartz sand, silica, etc.) is widely used in glass, ceramics, photovoltaic, semiconductor and other industries, and its beneficiation process directly affects the purity and market value of the product. The main goal of silicon ore beneficiation is to remove impurities (such as iron, aluminum, mica, feldspar, etc.) and improve the purity of SiO2 (usually required to be ≥99%). After years of development, the beneficiation technology of ZOOMJO Mining has the advantages of high efficiency, low energy consumption, high output and economic rationality. The process is simple, the beneficiation equipment cost is low, and it is easy to operate.

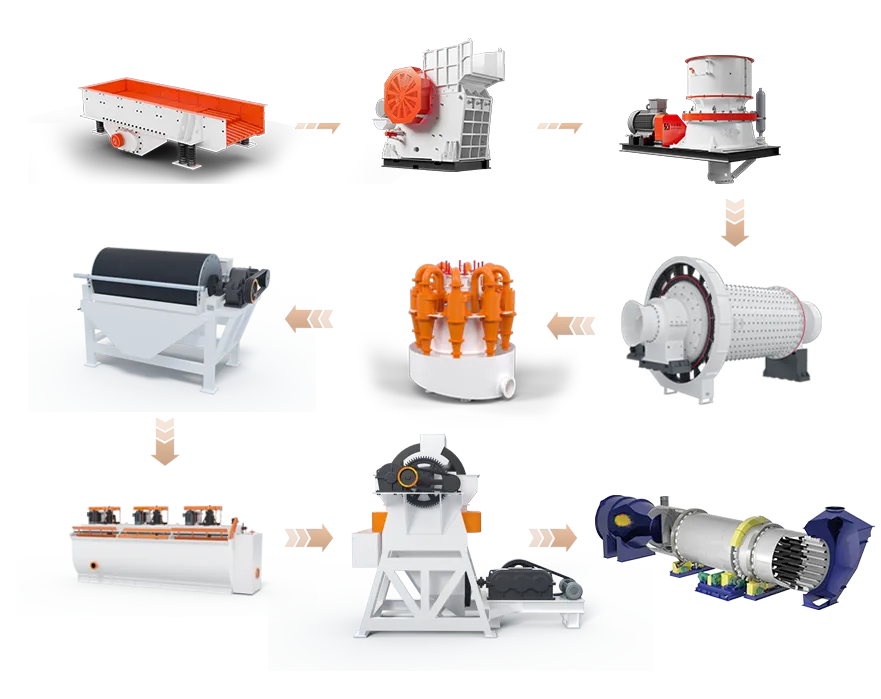

Crushing and grinding
Coarse crushing: jaw crusher (discharge ≤ 150mm).
Fine crushing: cone crusher (discharge ≤ 10mm).
Grinding: ball mill + classifier (grinding to -200 mesh accounts for 70%~90%).
Grading magnetic separation
Spiral classifier or hydrocyclone to remove ore slime (affecting flotation effect)
Weak magnetic separation (magnetic separator, 1500~3000Gs) → removal of strong magnetic minerals (magnetite).
Strong magnetic separation (high gradient magnetic separator, 8000~12000Gs) → removal of weak magnetic minerals (hematite, limonite)
Flotation acid leaching
Reverse flotation (preferentially floats out impurities):
Positive flotation (preferentially floats silica):
Mixed acid (HF+H₂SO₄) dissolves trace impurities (Al₂O₃, Fe₂O₃).
Dehydration and drying
Concentration: High-efficiency deep cone thickener (underflow concentration ≥ 65%).
Filtration: Ceramic filter (moisture ≤ 8%).
Drying (optional): Rotary dryer (moisture ≤ 1%).
With good reputation, excellent quality and sound after-sales service, it has won praise from the world.
