Product Introduction

The magnetic drum of the magnetic separator is made of ferrite material or made of rare earth magnetic steel (with a magnetic induction intensity of 100-600mT on the drum surface), suitable for wet magnetic separation of materials such as magnetite and ilmenite below 3mm, as well as iron removal operations of coal and building materials. The equipment achieves efficient separation through the synergistic effect of mineral magnetism and mechanical force, providing multiple tank types and dry/ wet operation modes such as co current/counter current/semi counter current. It has the advantages of large processing capacity (50-200t/h), easy operation and maintenance, and high sorting accuracy, and is widely used in the mining and building materials industries.

Product Advantages

Suitable for multiple industries

Specially designed for industries such as coal mining, casting sand, refractory materials, etc., providing efficient iron removal solutions.

Excellent magnetic separation performance

Quality improvement guarantee

Resource recycling

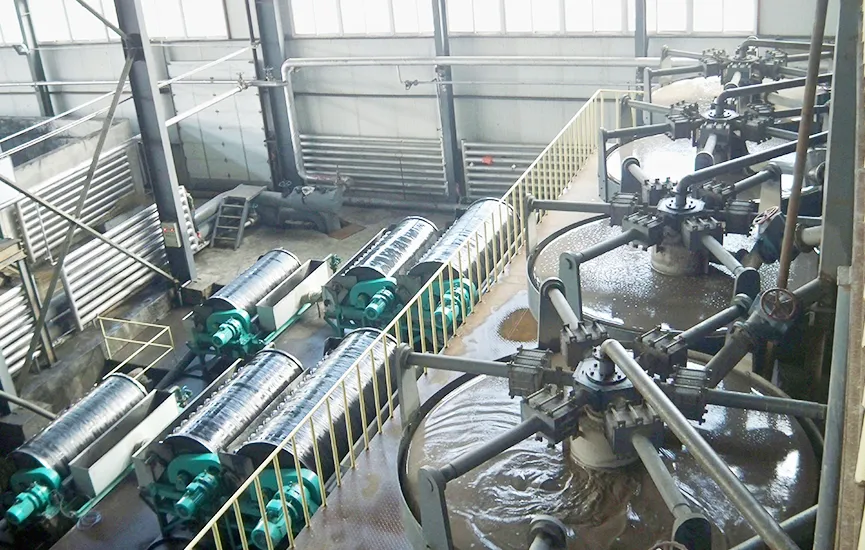

Magnetic separator for sale in South Africa

Raw material: Manganese ore
Model: CTB-1230
Capacity: 80–160 T/H
Feeding size: 0–3 mm
Finished products:Mn concentrate (≥45% Mn), Tailings (≤8% Mn)

Free Quote

Product Parameters

Model	Size	Average Value	Working Area	Midfielder Strong Magnetic Field	Capacity		Motor Power (kw)	Revolution
Model	Size	Average Value	Working Area	Midfielder Strong Magnetic Field	t/h	m³/h	Motor Power (kw)	Revolution
CTB-44	400×400	130	180	250-400	1-2	4-5	1.1	45
CTB-46	400×600	130	180	250-400	2-3	5-10	1.1	45
CTB-63	400×300	140	180	250-400	3-5	8-15	1.1	40
CTB-66	400×600	140	180	250-400	5-10	10-30	1.1	40
CTS-69	600×900	180	180	250-400	8-15	20-50	1.1	40
CTB-69	600×900	180	180	250-400	8-15	20-50	1.1	40
CTS-612	600×1200	140	180	250-400	10-20	25-50	2.2	40
CTB-612	600×1200	140	180	250-400	10-20	25-50	2.2	40
CTS-618	600×1800	140	180	250-400	15-30	40-80	2.2	40
CTB-618	600×1800	140	180	250-400	15-30	40-80	2.2	40
CTS-712	750×1200	160	200	300-500	15-30	40-80	3	35
CTB-712	750×1200	160	200	300-500	15-30	40-80	3	35
CTS-718	750×1800	160	200	300-500	20-45	60-100	3	35
CTB-718	750×1800	160	200	300-500	20-45	60-100	3	35
CTS-918	900×1800	170	200	300-500	25-55	70-120	4	28
CTB-918	900×1800	10	200	300-500	25-55	70-120	4	28
CTS-924	900×2400	170	200	300-500	35-70	80-130	4	28
CTB-924	900×2400	170	200	300-500	35-70	80-130	4	28
CTS-1018	1050×1800	180	220	300-700	40-75	110-160	5.5	22
CTB-1018	1050×1800	180	220	300-700	40-75	110-160	5.5	22
CTS-1021	1050×2100	180	220	300-700	50-100	140-200	5.5	22
CTB-1021	1050×2100	180	220	300-700	50-100	140-200	5.5	22
CTS-1024	1050×2400	180	220	300-700	80-120	170-280	5.5	22
CTB-1024	1050×2400	180	220	300-700	80-120	170-280	5.5	22
CTS-1030	1050×3000	180	220	300-700	70-150	200-320	7.5	22
CTB-1030	1050×3000	180	220	300-700	70-150	200-320	7.5	22
CTS-1218	1200×1800	180	220	300-700	60-110	160-230	5.5	19
CTB-1218	1200×1800	180	220	300-700	60-110	160-230	5.5	19
CTS-1224	1200×2400	180	220	300-700	70-130	60-300	7.5	19
CTB-1224	1200×2400	180	220	300-700	70-130	60-300	7.5	19
CTS-1230	1200×3000	180	220	300-700	80-160	250-400	7.5	19
CTB-1230	1200×3000	180	220	300-700	80-160	250-400	7.5	19
CTS-1530	1500×3000	180	220	300-700	100-180	280-480	11	14
CTB-1530	1500×3000	180	220	300-700	100-180	280-480	11	14
CTS-1540	1500×4000	180	220	300-700	115-200	300-540	11	14
CTB-1540	1500×4000	180	220	300-700	115-220	300-540	11	14
