Product Introduction

The single-cylinder cone crusher is an upgraded product of the SC series. It adopts a large eccentricity and high speed optimized design, which increases the output by 15-20% and reduces energy consumption by 15-20%. While maintaining reliability, the maintenance cost is reduced by 25%. Equipped with an IoT intelligent system, it realizes 24-hour remote monitoring and predictive maintenance, and reduces the failure rate by 30%. It is suitable for medium-hard ore crushing, large-scale sand and gravel production and intelligent mine construction, providing efficient and intelligent crushing solutions.

The equipment is superior to its peers
and the performance is unmatched

Product Advantages

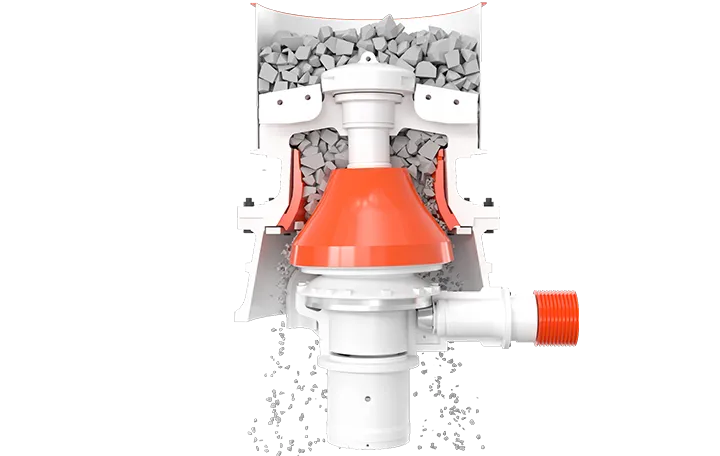

Constant crushing performance

The special cavity design ensures that the liner maintains a stable discharge particle size and capacity throughout its service life, ensuring production continuity.

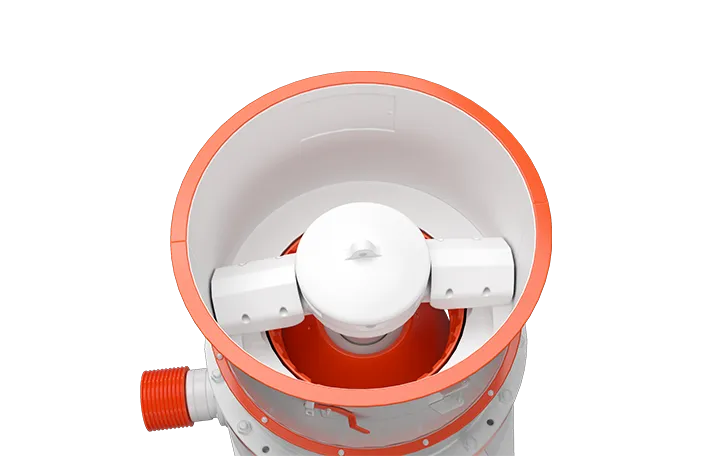

Positive pressure dust protection

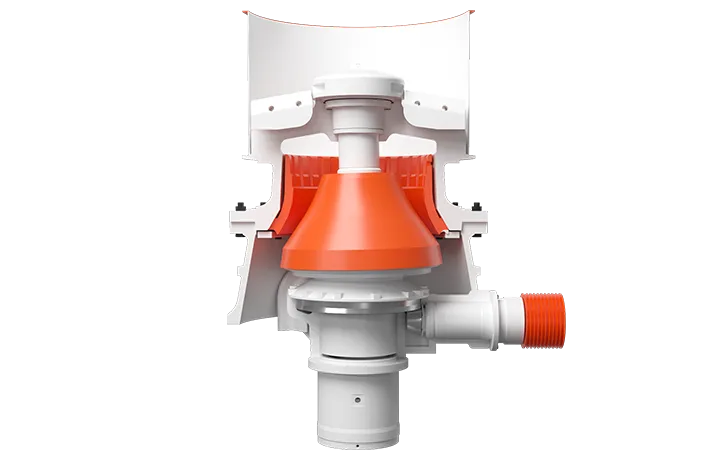

Quick replacement design

Intelligent control system

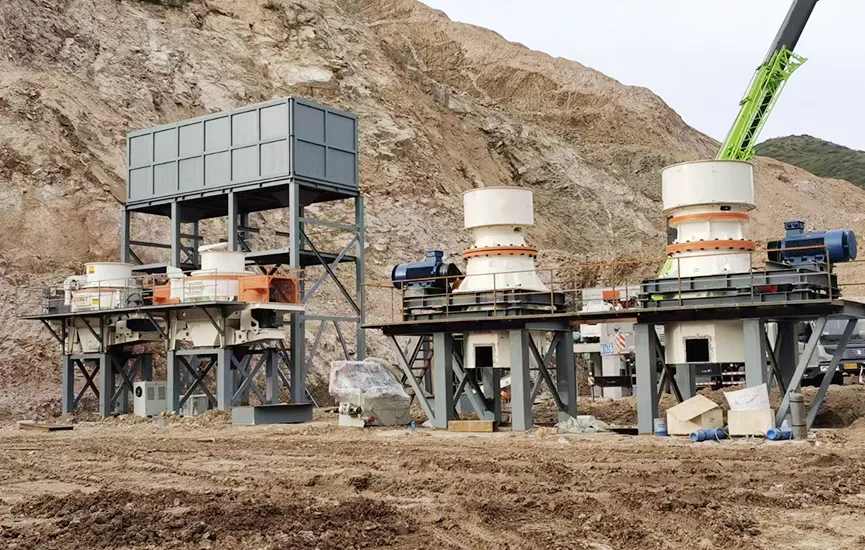

Single cylinder hydraulic cone crusher for sale in Singapore

Raw material: Granite
Model: DCH870
Capacity: 500 T/H
Feeding size: ≤300 mm
Finished products: 0–10 mm, 10–20 mm, 20–30 mm, 30–50 mm

Free Quote

Product Parameters

DCS series performance parameters

Model	Cavity Type	Power (kW)	Max Feed Size (mm)	Processing Capacity
Model	Cavity Type	Power (kW)	Max Feed Size (mm)	16	19	22	25	29	32	35	38	41	54	60	64
DCS420	Supercoarse	90	240		80-90	85-100	90-130	100-180	105-195	115-165	120-170
DCS420	Coarse	90	200	65-75	70-80	75-110	80-145	90-130	96-130
DCS430	Supercoarse	160	360			115-130	125-145	140-200	145-265	155-280	165-355	175-375	185-395	205-295	215-245
DCS430	Coarse	160	300		100-115	110-155	115-165	125-230	135-290	145-310	150-330	160-345	170-305
Model	Cavity Type	Power (kW)	Max Feed Size (mm)	Processing Capacity
Model	Cavity Type	Power (kW)	Max Feed Size (mm)	25	29	32	35	41	44	51	54	60	64	70	75
DCS440	Supercoarse	250	450					298-446	313-563	349-524	364-456
DCS440	Coarse	250	400			239-299	254-381	284-511	298-448	333-420
DCS660	Supercoarse	315	560			295-340	315-360	349-420	368-460	410-718	428-856	465-929	489-978	525-1050	526-983
DCS660	Coarse	315	500					336-420	353-618	394-788	411-823	446-892	469-822	504-631

DCH series performance parameters

Model	Cavity Type	Power (kw)	Max feedsize (mm)	Processing capacity
Model	Cavity Type	Power (kw)	Max feedsize (mm)	6	8	10	13	16	19	22	25	32	38	44	51
DCH420	Supercoarse	90	135			45-55	50-100	55-105	60-115	60-120	65-130	74-125
	Coarse	90	90			45-60	45-105	50-110	55-120	55-125	60-135	70-180
	Fine	90	65		35-50	40-85	40-90	40-90	50-70
	Fine	90	50	35-40	40-75	40-80	45-80	45-60
DCH430	Supercoarse	160	190				70-125	70-170	80-185	85-196	90-210	105-240	115-240
	Coarse	160	145			70-85	65-150	70-165	75-175	80-185	85-200	100-225	110-170
	Medium coarse	160	115			55-65	60-160	65-175	70-185	75-200	80-210	96-165
	Fine	160	90		60-75	65-100	70-150	75-165	80-175	85-185	90-175	105-120
	Super fine	160	75		60-70	65-120	70-130	75-145	80-175	85-130	90-105
DCH440	Supercoarse	250	215					114-200	122-276	131-294	139-313	159-357	175-395	192-384
	Coarse	250	175				100-180	109-218	117-292	125-312	133-332	151-378	167-335	183-229
	Medium coarse	250	140				97-122	105-262	113-282	120-301	128-320	146-328	161-242
	Fine	250	110				117-187	126-278	136-298	145-318	154-339	176-281	194-328
	Super fine	250	85			114-180	124-227	134-245	144-263	153-28	163-299	186-248
DCH660	Supercoarse	315	275					177-220	190-338	203-436	216-464	246-547	272-605	298-662	328-511
	Coarse	315	215					171-190	184-367	196-480	209-501	238-582	263-643	288-512	317-353
	Medium coarse	315	175					162-253	174-426	186-455	198-484	226-552	249-499	273-364
	Fine	315	135					197-295	211-440	226-470	240-500	274-502	302-403
	Super fine	315	115				192-285	207-369	220-396	233-423	252-450	287-451	318-363
DCH870	Supercoarse	500	300								480-640	547-1277	605-1411	662-1546	703-1702
	Coarse	500	240								540-772	616-1232	681-1362	746-1492	821-1643
	Medium coarse	500	195							541-580	576-864	657-1321	726-1361	795-1490	876-1642
	Fine	500	155							552-613	587-1043	669-1189	739-1314	810-1400	892-1586
	Super fine	500	100						400-563	549-933	584-993	666-1132	736-1251	806-1370	888-1420
