Flotation Machine-ZOOMJO

Product Introduction

Flotation machines are mainly used for the selection of non-ferrous metals such as gold, copper, and zinc. It can also be used for rough and fine selection of ferrous and non-metallic materials. Suitable for materials such as gold ore, copper ore, quartz ore, aluminum ore, etc.

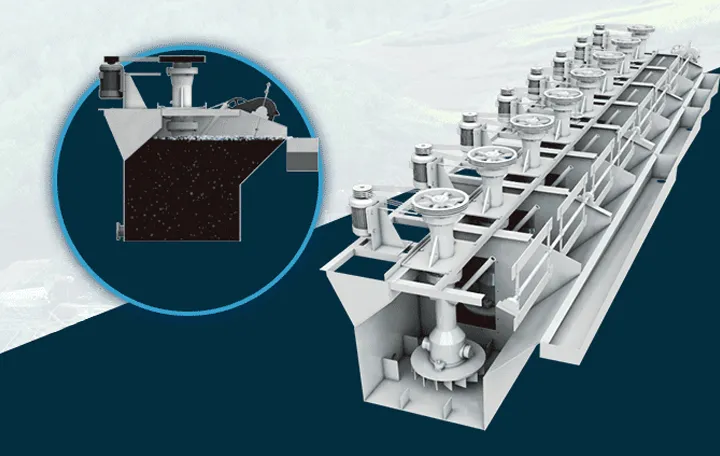

Product Advantages

Efficient and energy-saving design

Adopting a unique structure to achieve high buoyancy rate, energy consumption is reduced by 30%, and operating costs are significantly reduced, too.

Low maintenance and long lifespan

Intelligent Control System

Precise mineral separation

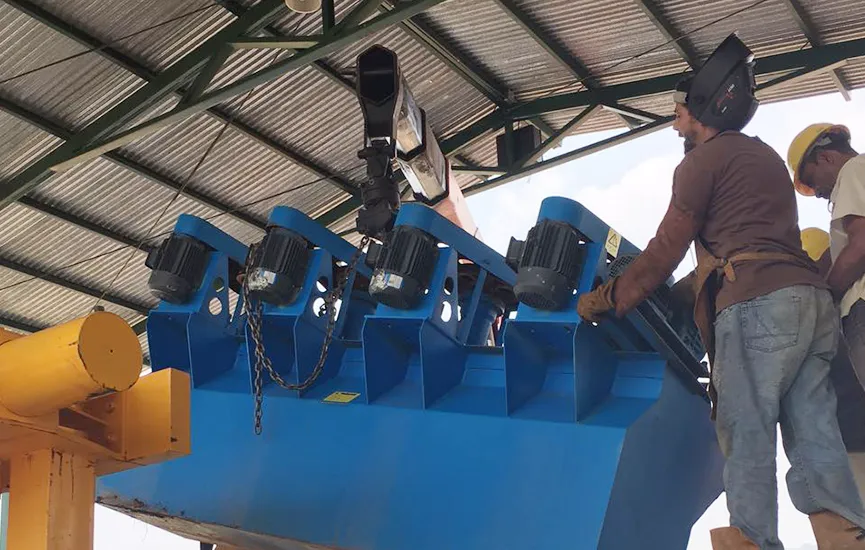

Flotation machine for sale in Zambia

Raw material: Copper ore
Model: XCF-24
Capacity: 4–24 m³/min
Feeding size: ≤0.3 mm
Finished products:Cu concentrate (≥25% Cu), Tailings (≤0.3% Cu)

Free Quote

Product Parameters

Performance parameters of SF mechanical agitating flotation cell with auto air suction

Model	Effective Volume (m³)	Capacity (m³/min)	Diameter of Impeller (mm)	Revolution of Impeller (r/min)	Motor Power for Agitating (kw)	Motor Power for Scraper (kw)	Weight (t)
SF-0.37	0.37	0.2-0.4	300	352-442	1.5	0.55	0.94
SF-0.7	0.7	0.3-1.0	350	336	3	1.1	1.94
SF-1.2	1.2	0.6-1.2	450	312	5.5	1.1	2.8
SF-2.8	2.8	1.5-3.5	550	280	11	1.5	4.24
SF-4	4	2-4	650	235	15	1.5	5.2
SF-6	6	3-6	760	191	22	2.2	6
SF-8	8	4-8	760	191	30	1.5	8.584
SF-16	16	5.0-16	850	169-193	45	1.5	14.83
SF-20	20	5.0-20	730	186	30×2	1.5	19.646

Performance parameters of XCF pneumatic mechanical agitating flotation cell

Model	Effective Volume (m³)	Capacity (m³/min)	Diameter of Impeller (mm)	Revolution of Impeller (r/min)	Air Pressure of Blower (kpa)	Max of Air Filling (m³/m²·min)	Motor Power for Agitating (kw)	Motor Power for Scraper (kw)	Weight (t)
XCF-1	1	0.2-1	400	358	≥12.6	2	5.5	1.1	1.154
XCF-2	2	0.4-2	470	331	≥14.7	2	7.5	1.1	1.659
XCF-3	3	0.6-3	540	266	≥19.8	2	11	1.5	2.259
XCF-4	4	1.2-4	620	215	≥19.8	2	15	1.5	2.669
XCF-8	8	3.0-8	720	185	≥21.6	2	22	1.5	3.968
XCF-16	16	4-16	860	160	≥25.5	2	37	1.5	6.52
XCF-20	20	5-10	910	155	≥25	2	45	1.5	9.2
XCF-24	24	4-24	950	153	≥30.4	2	55	1.5	9.66
XCF-30	30	7-15	1000	141	≥31	2	55	1.5	14.81
XCF-38	38	10-38	1050	136	≥34.3	2	55	1.5	17
XCF-40	40	10-38	1050	138	≥34.3	2	75	1.5	17.5
XCF-50	50	10-25	1120	110	≥33	2	90	1.5	22
XCF-70	70	13-50	1200	103	≥35	2	90	1.5	26.2

Performance parameters of KYF pneumatic mechanical agitating flotation cell

Model	Effective Volume (m³)	Capacity (m³/min)	Diameter of Impeller (mm)	Revolution of Impeller (r/min)	Air Pressure of Blower (kpa)	Max of Air Filling (m³/m²·min)	Motor Power for Agitating (kw)	Motor Power for Scraper (kw)	Weight (t)
KYF-1	1	0.2-1	340	281	≥12.6	2	4	1.1	0.826
KYF-2	2	0.4-2	410	247	≥14.7	2	5.5	1.1	1.419
KYF-3	3	0.6-3	480	219	≥19.8	2	7.5	1.5	1.885
KYF-4	4	1.2-4	550	200	≥19.8	2	11	1.5	2.206
KYF-8	8	3.0-8	630	175	≥21.6	2	15	1.5	3.6
KYF-16	16	4.0-16	740	160	≥25.5	2	30	1.5	5.9
KYF-20	20	5-20	780	155	≥25	2	37	1.5	8.24
KYF-24	24	4-24	800	150	≥30.4	2	37	1.5	8.54
KYF-30	30	7-30	900	141	≥31	2	45	1.5	13.82
KYF-38	38	10-38	880	139	≥34.3	2	45	1.5	16.5
KYF-40	40	10-38	950	138	≥34.3	2	55	1.5	17
KYF-50	50	10-40	1030	120	≥33	2	75	1.5	22
KYF-70	70	13-50	1120	110	≥35	2	90	1.5	26.2

Performance parameters of model BF flotation cell

Model	Effective Volume (m³)	L×W×H (mm)	Diameter of Impeller (mm)	Revolution of Impeller (r/min)	Max Air Filling (m³/m²·min)	Capacity (m³/min)	Motor Model	Motor Power (kw)	Weight (t)
BF-0.15	0.15	550×550×600	200	6	0.9-1.05	0.06-0.16	Y112M-6	2.2	0.27
BF-0.25	0.25	650×600×700	250	6	0.9-1.05	0.12-0.28	Y100L-6	1.5	0.37
BF-0.37	0.37	740×740×750	286	7.2	0.9-1.05	0.2-0.4	Y90L-4	1.5	0.47
BF-0.65	0.65	850×950×900	300	7.35	0.9-1.10	0.3-0.7	Y132S-6	3	0.932
BF-1.2	1.2	1050×1150×1100	450	7.02	0.9-1.10	0.6-1.2	Y132M2-6	5.5/4	1.37
BF-2.0	2	1400×1450×1120	500	7.5	0.9-1.10	1.0-2.0	Y160M-6	7.5	1.75
BF-2.8	2.8	1650×1650×1150	550	8.06	0.9-1.10	1.4-3.0	Y180L-8	11	2.13
BF-4.0	4	1900×2000×1200	650	8	0.9-1.10	2.4-4.0	Y200L-8	15	2.585
BF-6.0	6	2200×2350×1300	700	7.5	0.9-1.10	3.0-6.0	Y225S-8	18.5	3.3
BF-8.0	8	2250×2850×1400	760	7.5	0.9-1.10	4.0-8.0	Y225M-8	22	4.13
BF-10	10	2250×2850×1700	850	7.52	0.9-1.10	5.0-10	Y225M-8	22	4.5
BF-16	16	2850×3800×1700	850	8.7	0.9-1.10	8
