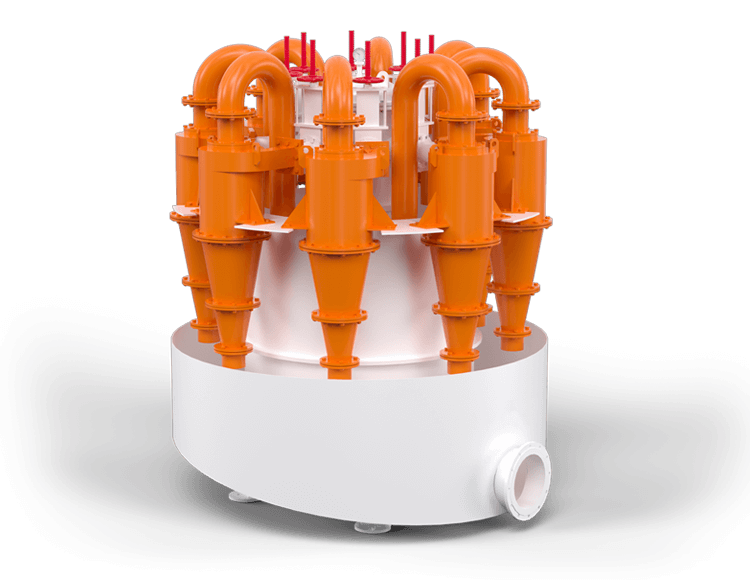

Hydrocyclone-ZOOMJO

Product Introduction

The cyclone group can meet the ore volume requirements of large-scale mines. Our company can customize cyclone groups for users. According to different feed particle sizes, underflow concentrations and production volumes, etc., the cyclone is selected and the number of cyclones is determined. Its classification efficiency is 20-30% higher than that of the spiral classifier, reaching 70-85%.

Product Advantages

Efficient classification

Centrifugal force enhances particle separation, and the overflow fineness is controllable.

Energy conservation and consumption reduction

Wear-resistant design

Intelligent control

Hydrocyclone for sale in Australia

Raw material: Copper ore slurry
Model: Φ500
Capacity: 450–600 t/d
Feeding size: ≤1.0 mm (80% passing)
Finished products: <Overflow (to flotation): -150 μm (P₈₀ = 75 μm)
Underflow (to regrind): +150 μm (≤30% solids)

Free Quote

Product Parameters

Perfomance parameters of high efficiency hydrocycone

Model	Pressure of overflow (Mpa)	Capacity (t/d)	Particle size of overflow (mm)	Weight (t)
φ100	0.05-0.3	25-40	0.025-0.25	31.3
φ125	0.05-0.3	40-60	0.025-0.25	78
φ150	0.05-0.3	80-120	0.025-0.25	105
φ200	0.05-0.3	150-250	0.025-0.25	125
φ250	0.05-0.3	250-350	0.025-0.25	151
φ350	0.05-0.3	350-450	0.025-0.25	280
φ500	0.05-0.3	450-600	0.025-0.25	718

Performance parameters of JAX polymer hydraulic cycone

Model	Diameter (mm)	Height (mm)	Pressure at the Feeder (Mpa)	Particle Size (μm)	Weight (t)
JAX-75	75	472.5	0.1-0.5	20-60	4
JAX-100	100	499	0.05-0.4	20-60	8
JAX-125	125	590	0.05-0.4	25-65	10
JAX-150	150	786	0.05-0.4	30-75	22
JAX-200	200	1114	0.05-0.4	40-100	36
JAX-250	250	1380	0.05-0.4	40-100	63
JAX-300	300	1490	0.03-0.4	50-150	88
JAX-350	350	1674	0.03-0.4	50-150	135
JAX-500	500	2280	0.03-0.4	74-200	416
JAX-660	660	2720	0.03-0.4	74-200	950
