Product Introduction

A primary crushing equipment with excellent performance. Compared with traditional jaw crushers, it occupies less space, has a larger crushing ratio, runs more smoothly, and has more advantages in transportation, installation, maintenance and adjustment. It is particularly suitable for fixed crushing production lines and mobile crushing stations.

The equipment is superior to its peers
and the performance is unmatched

Product Advantages

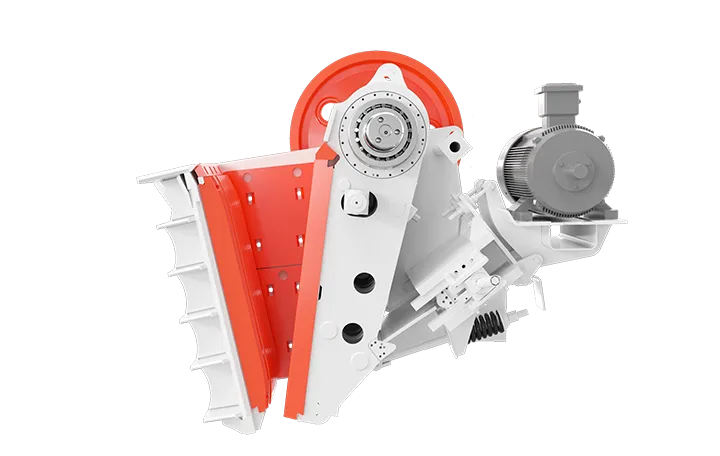

High efficiency crushing chamber

The deep V-shaped design increases feeding capacity by 30% and crushing efficiency by 25%.

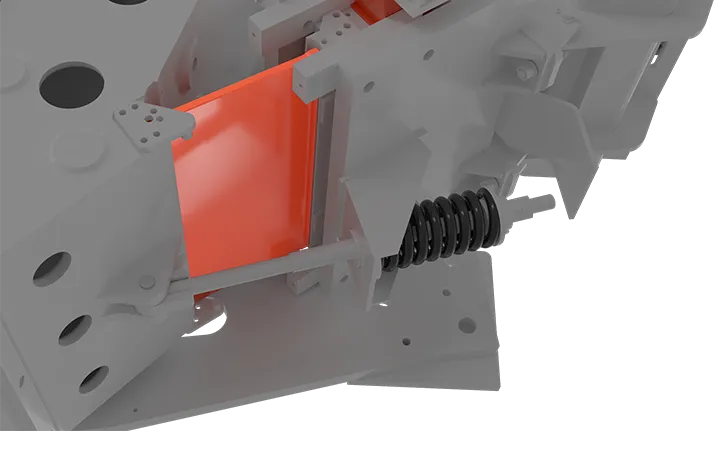

Intelligent protective toggle plate

Quick disassembly structure

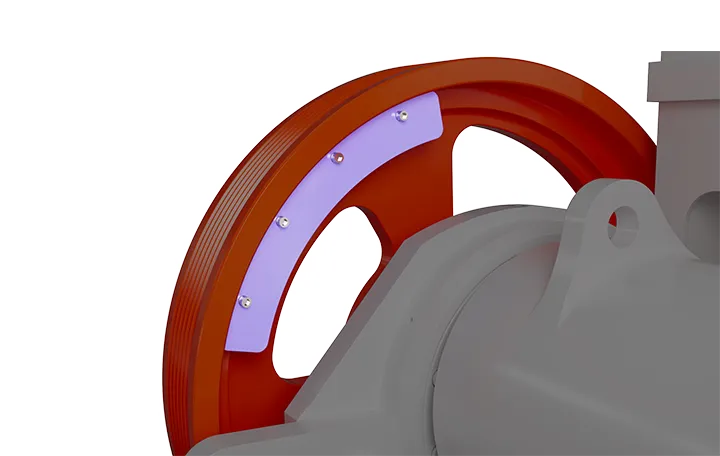

Dynamic balance optimization

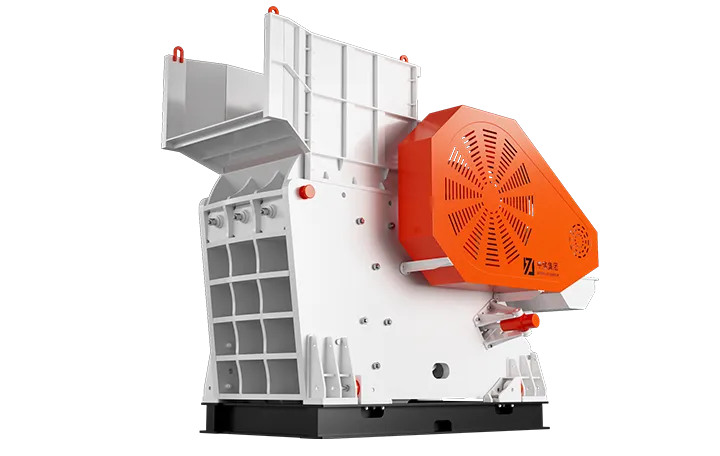

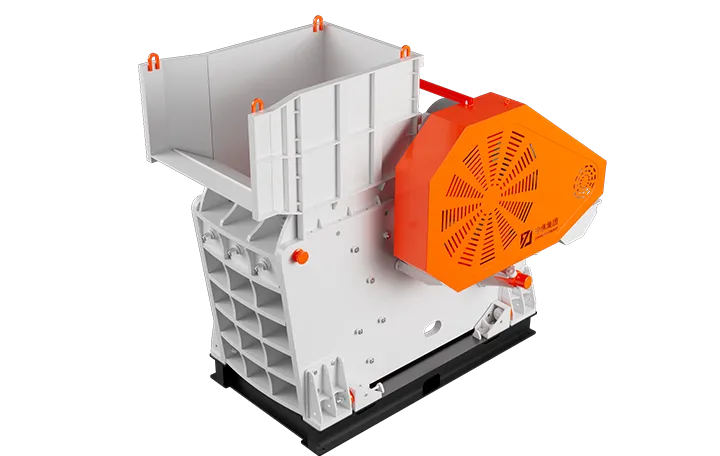

Compact design

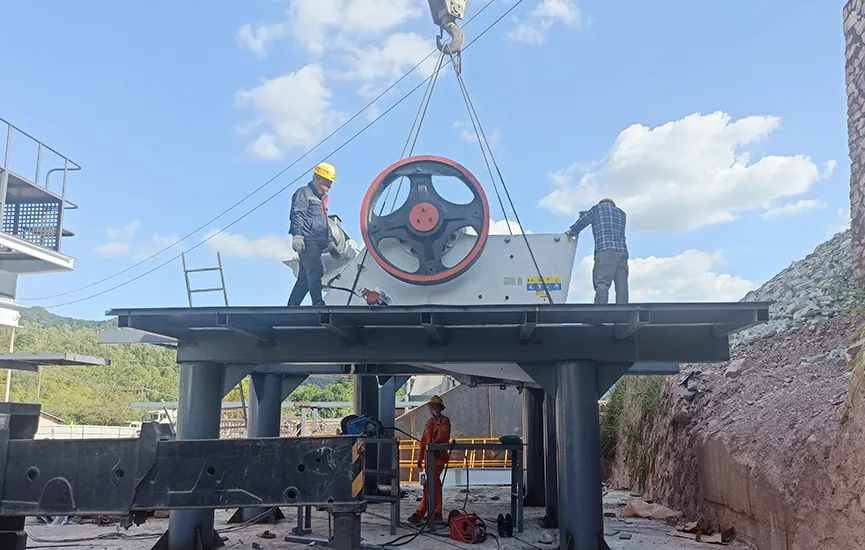

Jaw crusher for sale in Indonesia

Raw material: Limestone
Model: PE1200×1500
Capacity: 800 T/H
Feeding size:＜1,020 mm
Finished products: ≤0–10 mm, 10–20 mm,
20–40 mm, 40–80 mm

Free Quote

Product Parameters

Model	Feed size(mm)	Maximum feed size(mm)	Discharge size(mm)	Capacity(t/h)	Motor(KW)
C100	630×1000	580	80-180	110-230	90
C110	870×1100	720	85-220	160-380	110
C130	1100×1300	960	120-260	260-680	185
C145	1100×1450	1080	130-275	320-950	220
C160	1200×1600	1180	165-320	550-1100	250
C200	1500×2000	1200	175-320	760-1375	400

Model	Feeding Size(mm)	Discharge Size(mm)	Processing Capacity (t/h)	Motor Power(kw)	Overall Dimension(mm)
PE150×250	≤130	15-45	1-4	5.5	896×745×935
PE250×300	≤150	15-55	3-6	7.5	1050×987×1000
PE250×400	≤210	25-60	5-20	15	1215×1520×1030
PE400×600	≤350	40-90	15-60	30	1650×1588×1050
PE500×750	≤425	50-100	40-110	45	1956×1918×1920
PE600×900	≤500	60-125	90-180	55	2250×2733×2280
PE800×900	≤600	80-140	100-220	75	2450×2950×2490
PE750×1060	≤630	60-150	110-380	110	2531×2455×2783
PE900×1060	≤700	100-160	230-390	110	2900×2657×2950
PE900×1200	≤750	110-165	220-450	132	3100×2760×3260
PE1000×1200	≤900	110-185	315-500	132	3200×2760×3260
PE1200×1500	≤950	115-195	550-1000	220	3710×3446×4075
PE1500×1800	≤1200	135-225	600-1200	280	5100×4700×4300
PEX150×750	≤120	10-40	8-25	15	1310×1118×1145
PEX250×750	≤210	15-50	15-35	22	1400×1751×1515
PEX350×750	≤300	15-50	18-40	30	1485×1680×1648
PEX250×1000	≤210	15-60	15-60	30	1550×1964×1380
PEX250×1200	≤210	15-60	20-60	37	1530×1946×1380
PEX300×1300	≤250	25-60	16-105	55-75	2000×2320×1730
PEX300×1500	≤250	25-60	18-122	15-90	2200×2320×1730
PEX500×1500	≤425	50-100	50-220	90-110	2300×2420×1840
