Copper Ore Processing Plant

Production Capacity : 5-200 t/h

Processing Method : flotation separation

Related Equipment : ball mill, flotation machine, spiral classifier, hydrocyclone, thickener

Equipment configuration:

System Overview

ZOOMJO Group will customize copper ore processing solutions based on your ore type to maximize the recovery of copper concentrate. We also provide laboratory beneficiation test. Common copper ore processing methods: copper flotation separation process.

Flotation separation process is commonly used in copper ore processing plants. Before reagent addition and flotation, copper ores are first coarsely ground into small pieces, then ground to a certain particle size, and beneficiation reagents are added. In this way, mineral particles float up, and the final foam products are collected, further dewatered to obtain copper concentrate, which is sent to the smelter for copper smelting.

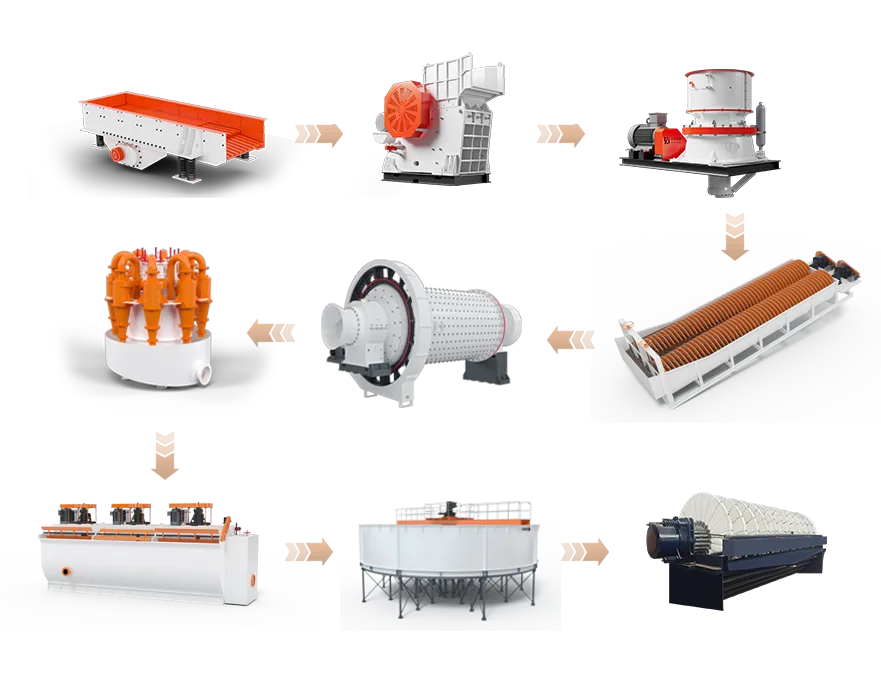

Process Flow

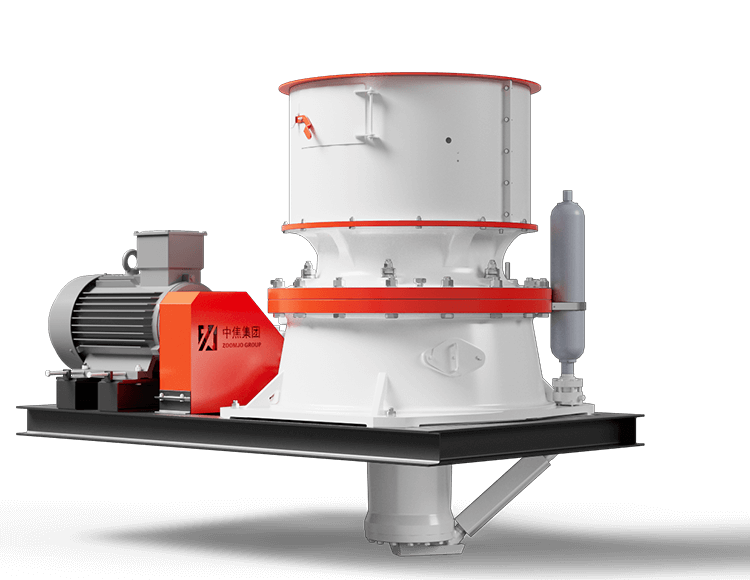

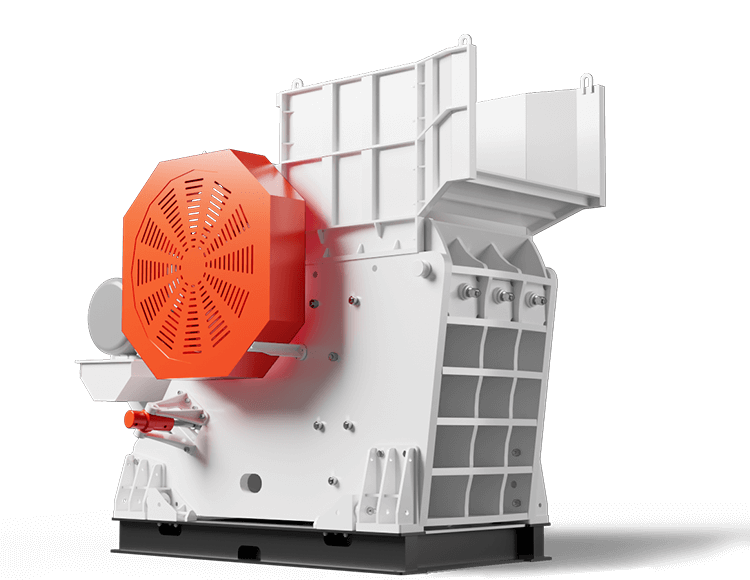

Crushing and Screening: Three-stage closed-circuit crushing (jaw crusher + cone crusher + vibrating screen) to 10-15mm

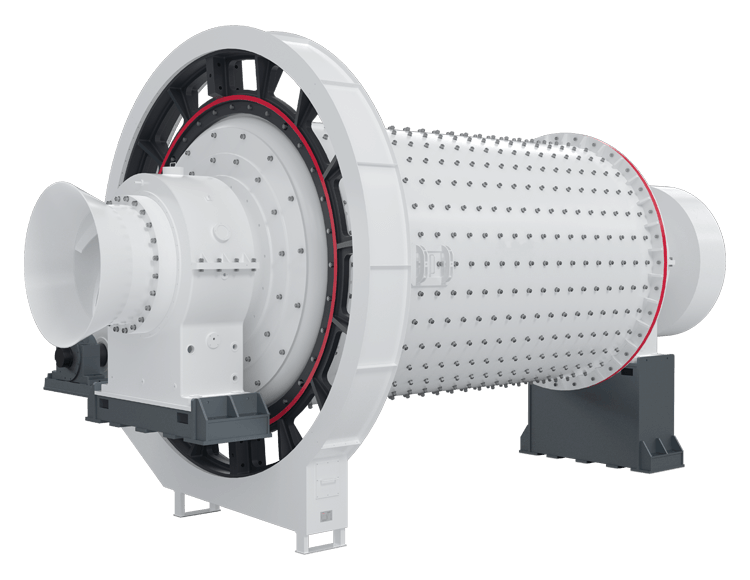

Grinding and Classification: Two-stage closed-circuit grinding (ball mill + spiral classifier + hydrocyclone), fineness -200 mesh accounts for 50%-70%.

Preferential Copper Flotation:The roughing foam is copper concentrate, and the tailings enter the subsequent sulfur and iron recovery process

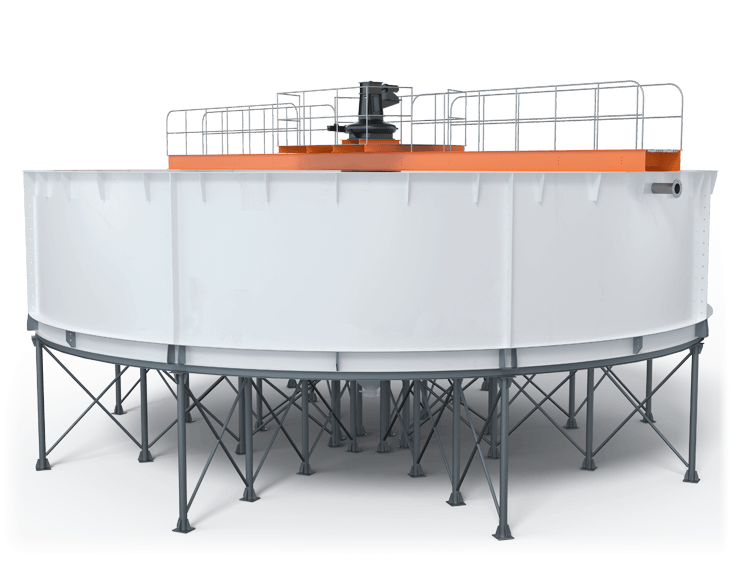

Concentration and Dewatering:Two-stage dewatering of copper concentrate (thickener + filter).

Key Equipment and Parameters

Link	Equipment	Technical Parameters
Grinding and Classification	Ball mill + hydrocyclone	Fineness -200 mesh accounts for 50%-95%

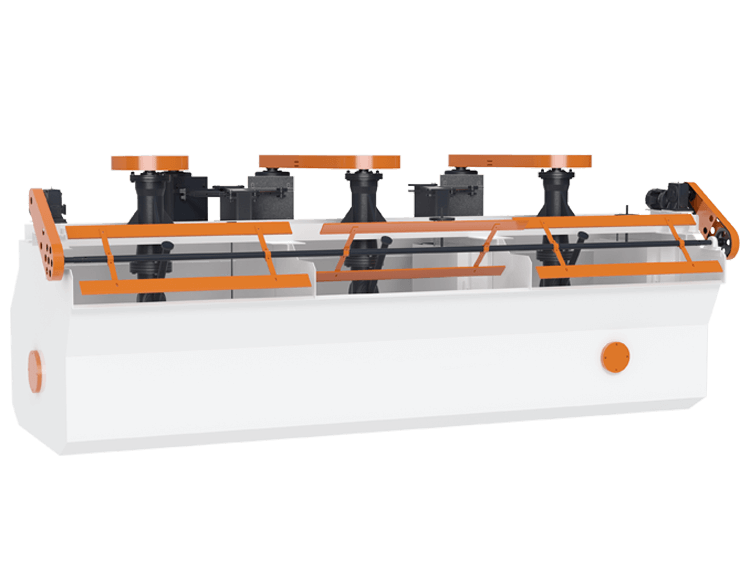

Flotation machine	Pneumatic type	Air inflation volume 0.8-1.2m³/(m²·min)
Reagent system	Butyl xanthate + No.2 oil	Dosage 50-150g/t

Customer site

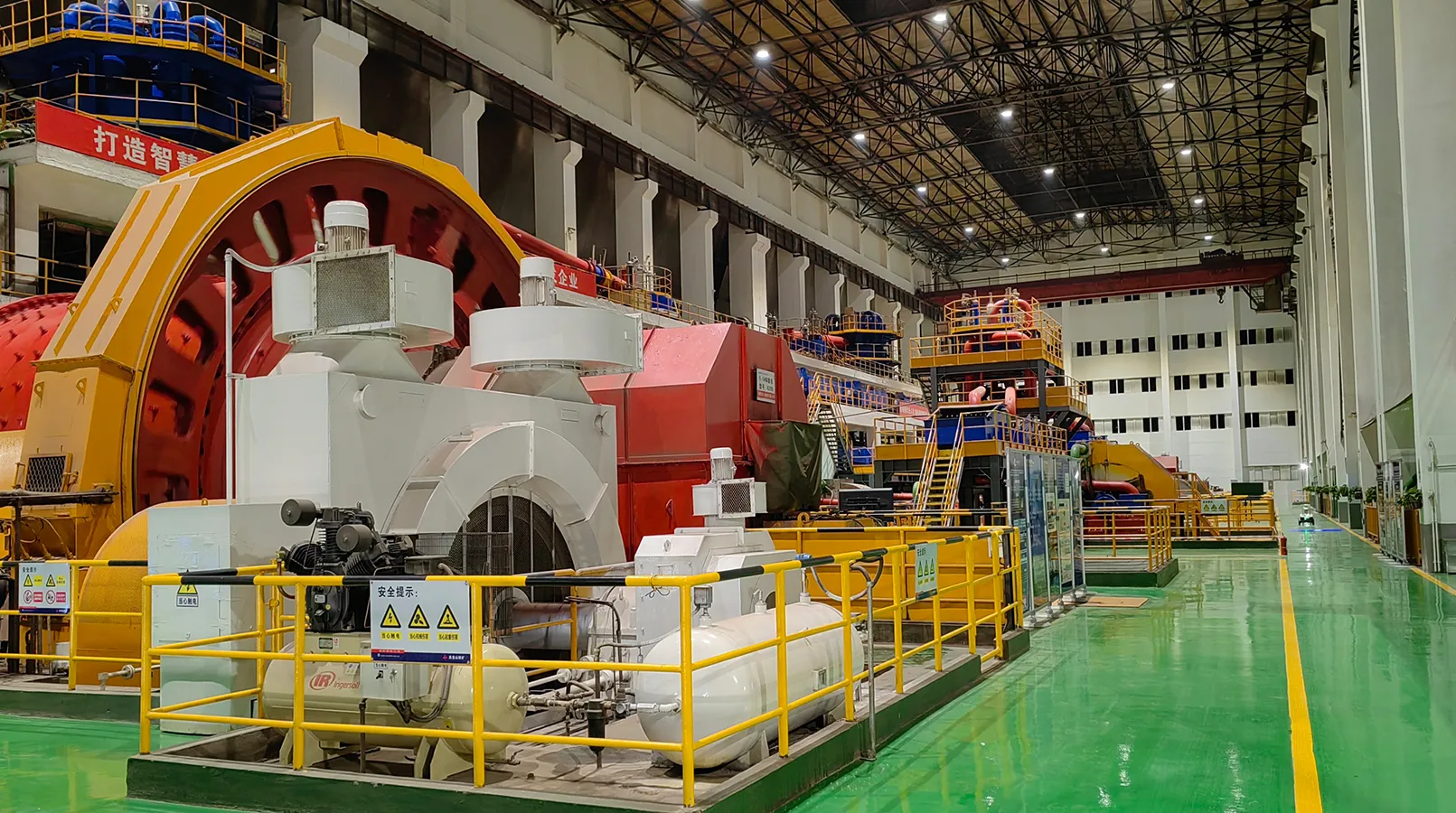

Jiangsu Skarn Copper Ore Processing Plant

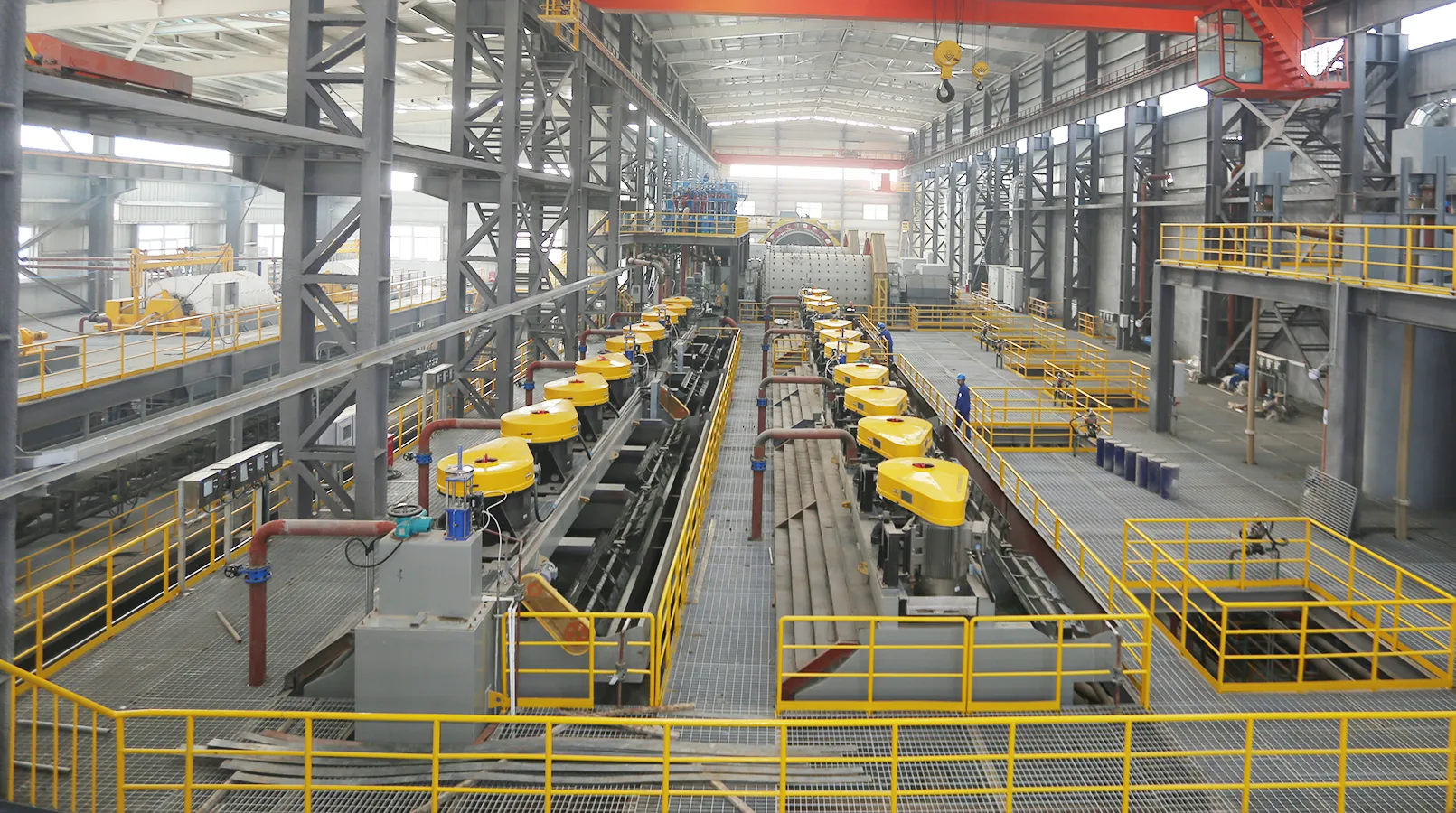

Zimbabwe Copper Oxide Ore Flotation

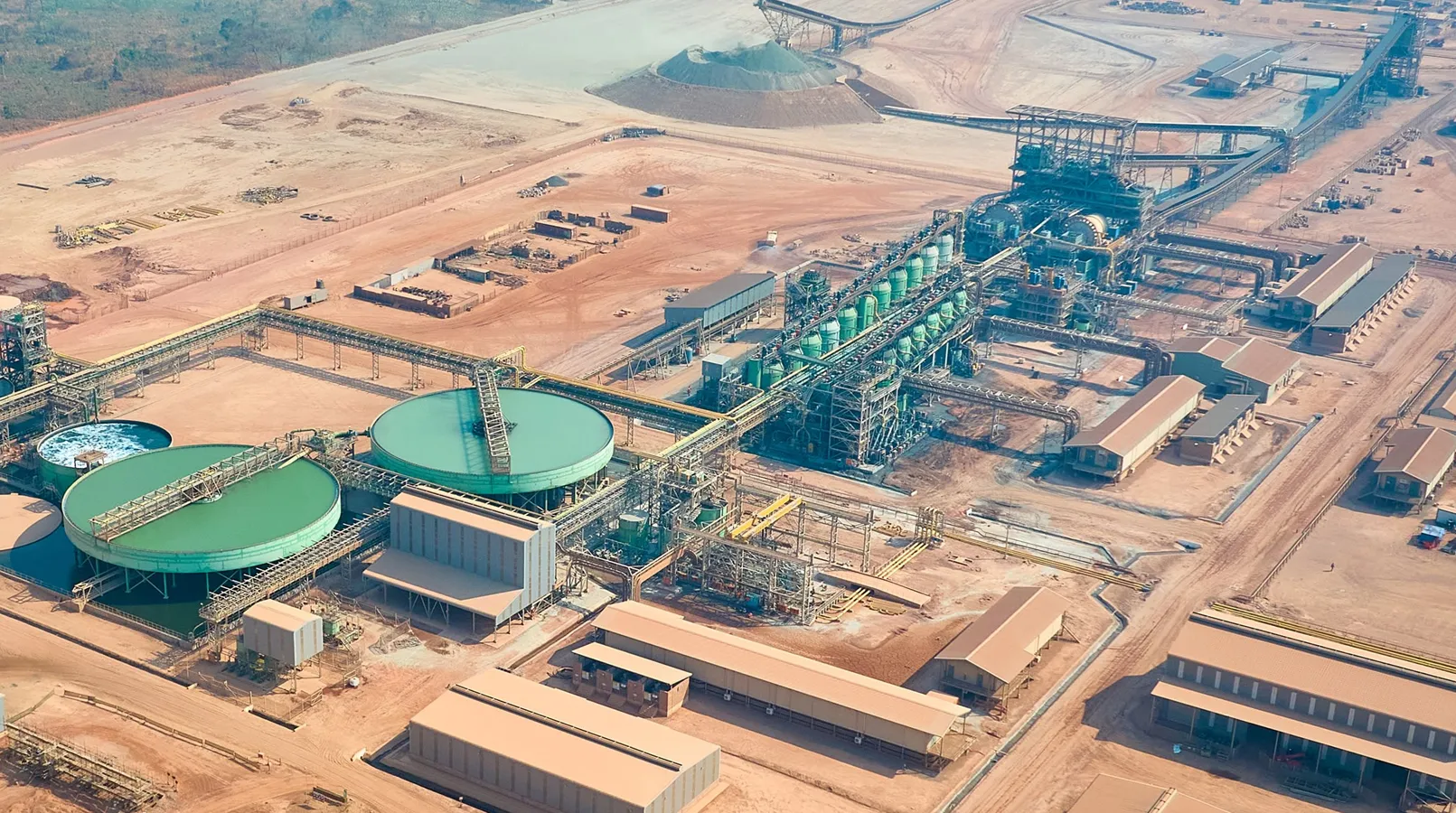

Tanzania Copper Ore Processing Plant

We provide on-site testing

Start the equipment on-site to run at no load or load
Measure key indicators such as production capacity, energy consumption, and particle size of the output.
The technical team explains the key points of operation throughout the process
You send the raw materials to our test center, and we provide production data reports.
