Magnetic Separation Plant

Production capacity : 50-3000t/h

Processed materials : magnetite, hematite, ilmenite, nickel laterite, manganese ore, tin ore, chrome ore, titanium ore, etc.

Equipment configuration:

System Overview

Magnetic separation is a mineral separation method based on the magnetic differences of minerals. It is widely used in the enrichment of minerals such as iron, manganese, nickel, and titanium.

Process Flow

jaw crusher (discharge size ≤ 150mm)

cone crusher/high pressure roller mill (discharge particle size ≤ 10mm)

ball mill + classifier (grinding to -200 mesh accounts for 65%~95%)

Weak magnetic separation (0.1-0.3T): used for strongly magnetic minerals (such as magnetite).

Strong magnetic separation (0.8-1.5T): used for weakly magnetic minerals (such as hematite and limonite).

High gradient magnetic separation (1.5-2.5T): used for fine-grained minerals (such as ilmenite and manganese ore).

concentrator + filter (moisture ≤ 10%),dry discharge (filter pressure) or return water utilization.

Customer site

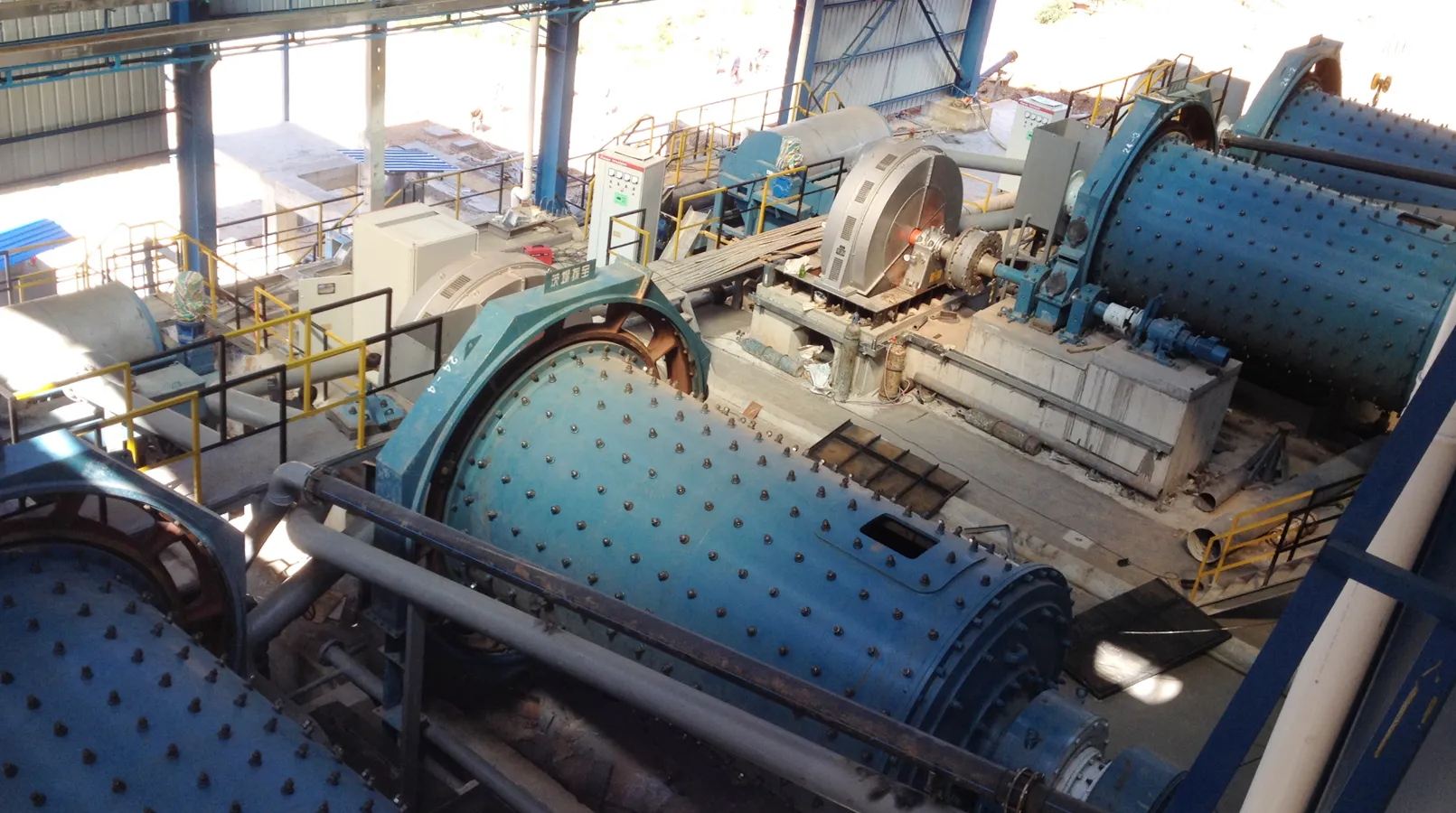

Brazil Dry Magnetic Separation Project

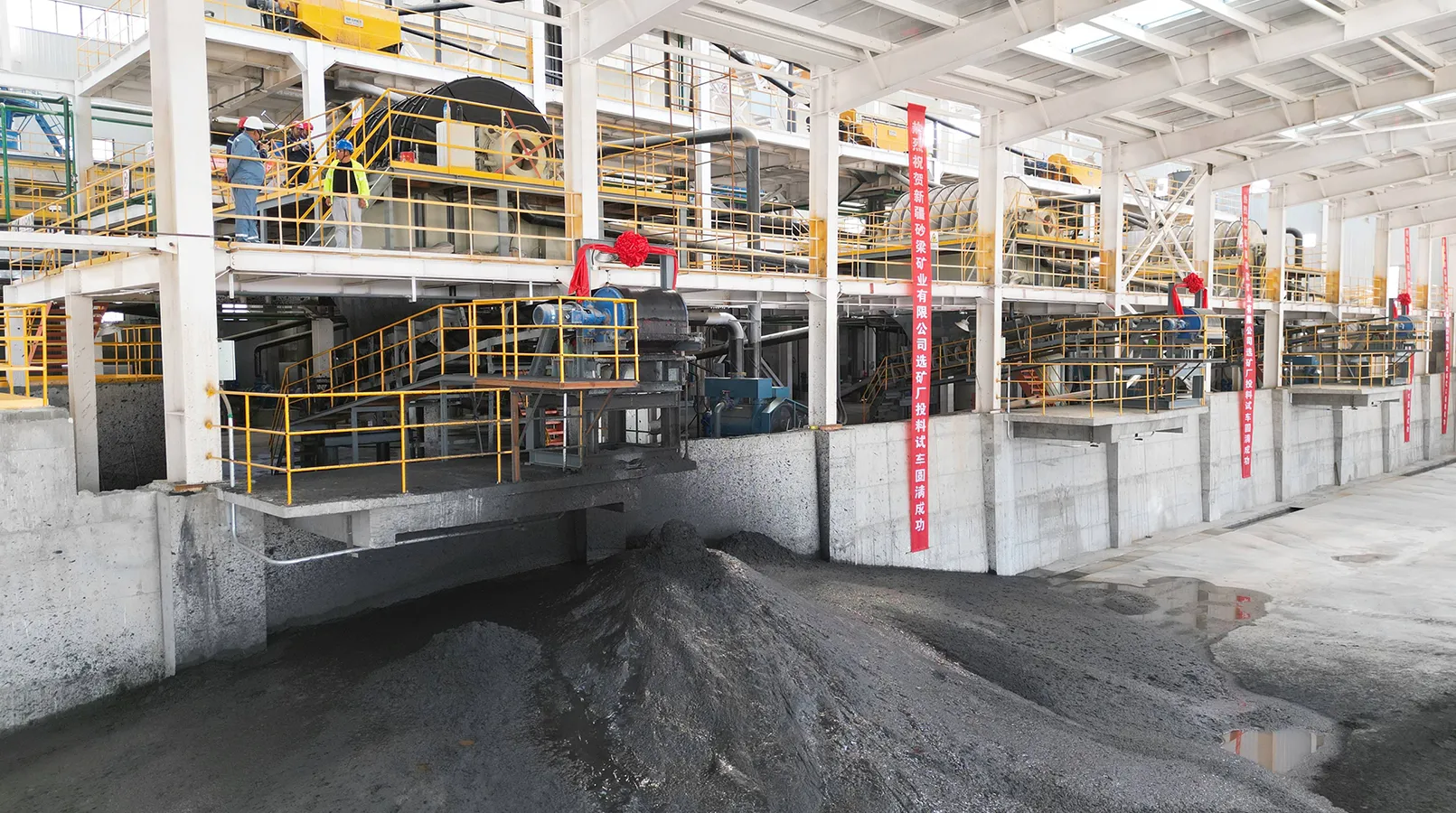

Xinjiang Iron Ore Project

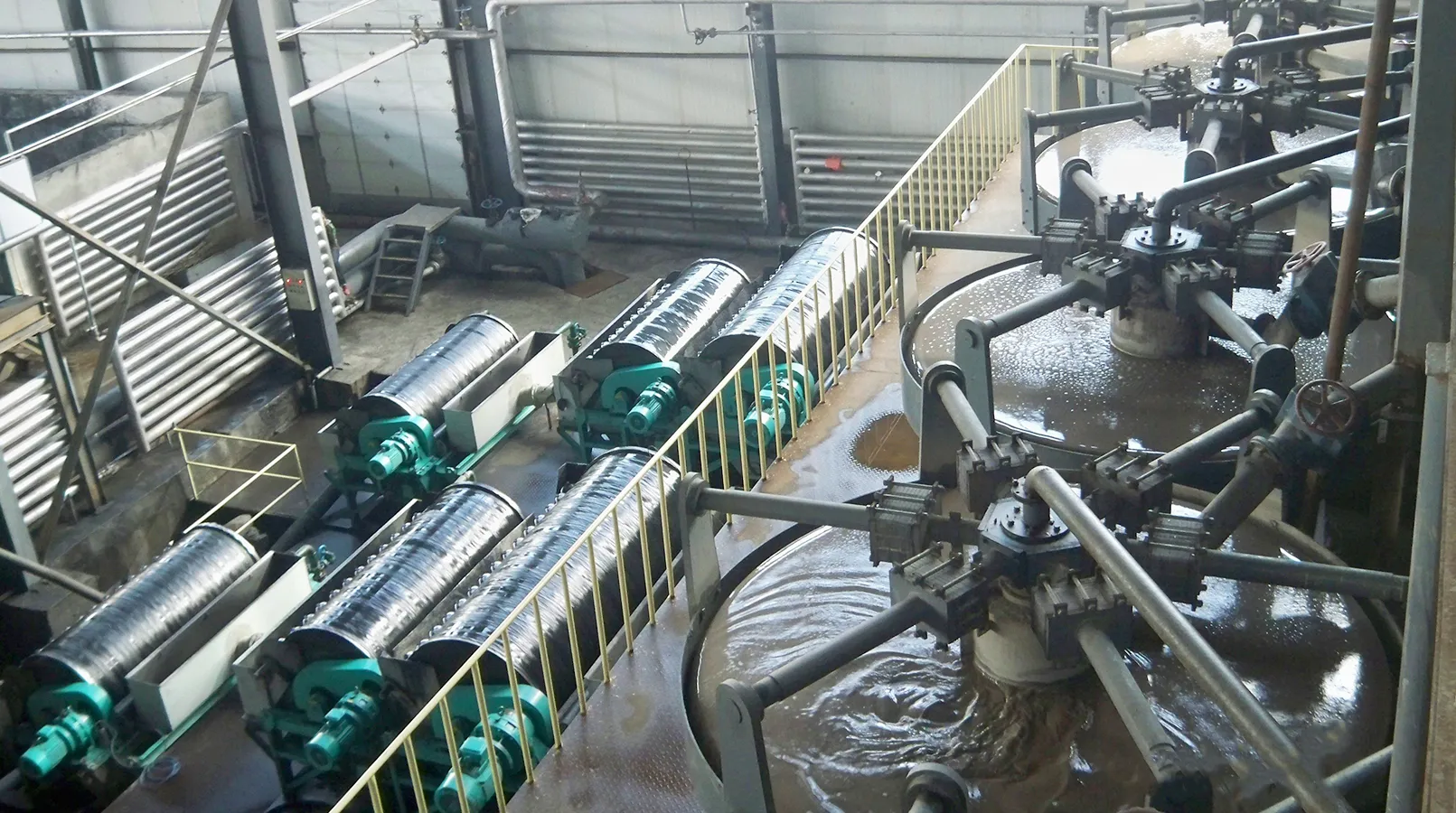

Australian Manganese Ore Project

We provide on-site testing

Start the equipment on-site to run at no load or load
Measure key indicators such as production capacity, energy consumption, and particle size of the output.
The technical team explains the key points of operation throughout the process
You send the raw materials to our test center, and we provide production data reports.
