ZOOMJO Group will customize lithium ore processing solutions based on your ore type to maximize the recovery of lithium concentrate. We also provide laboratory beneficiation test. Common lithium ore processing method:lithium flotation separation process.
ZOOMJO Group's lithium beneficiation plant is of mature technology, diverse configurations and a short payback period.
Tailor-made lithium beneficiation solutions for you: high efficiency, low consumption, high recovery rate and low investment.

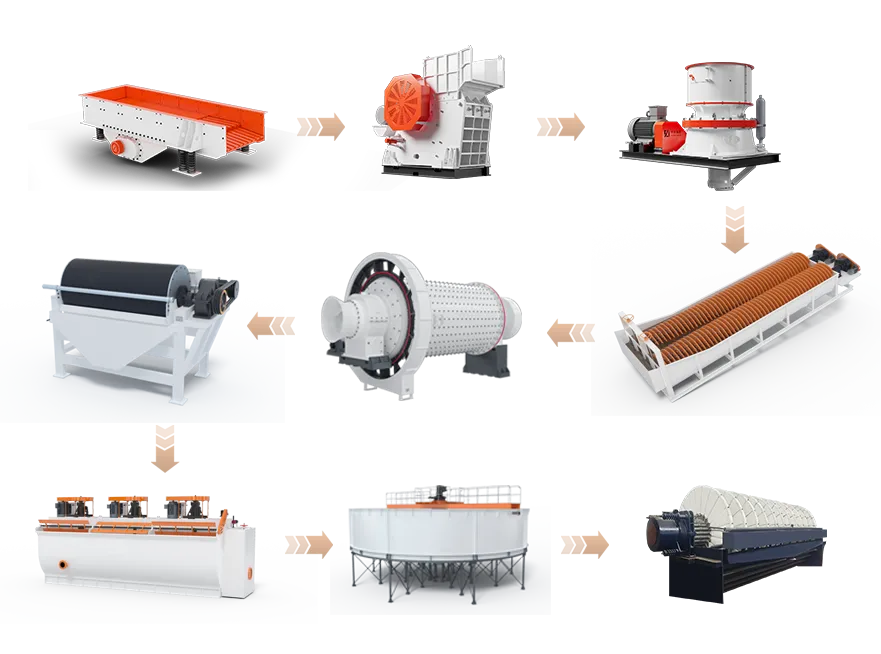

Crushing and grinding
Coarse crushing: jaw crusher (discharge particle size ≤ 150mm)
Fine crushing: cone crusher/high pressure roller mill (discharge particle size ≤ 10mm)
Grinding: ball mill + spiral classifier (grinding to -200 mesh accounts for 70%~85%)
Magnetic separation pretreatment (removal of iron impurities)
Weak magnetic separation (permanent magnetic drum separator, magnetic field strength 150~175kA/m) → Recover strong magnetic minerals (such as magnetite)
Strong magnetic separation (high gradient magnetic separator, magnetic field strength 770~950kA/m) → Recover weak magnetic minerals (such as hematite, lepidolite)
Magnetic separation concentrate: can further recover iron or tantalum niobium minerals
Magnetic separation tailings: enter the flotation system
Flotation operation (recovering lithium minerals)
One roughing, two sweeping, and two refining (medium ore is not returned to the roughing to improve stability)
Concentrate dehydration
Concentration: High-efficiency deep cone thickener (underflow concentration ≥ 65%)
Filtration: Ceramic filter (water content ≤ 9%)
