Mobile Stone Crushing Plant

Production capacity : 50-1000t/h

Processing Materials : Natural ores: limestone, granite, basalt, river pebbles, etc. Construction waste: concrete blocks, bricks, and asphalt pavement waste. Industrial waste: slag, coal gangue

Finished product particle size : 0-5mm, 5-10mm, 10-20mm

Equipment configuration:

System Overview

The mobile aggregate production line usually includes feeding, crushing, screening, conveying and other links. Depending on the characteristics of the materials and the demand for finished products, single-stage, two-stage or three-stage crushing processes can be adopted. Due to its flexibility, rapid production, and low infrastructure costs, it is widely used in fields such as mining, construction waste treatment, and highway and railway construction.

Process Flow

Feeding: The vibrating feeder evenly feeds, and some equipment is equipped with pre screening function (such as bar screen to remove soil).

Rough crushing: Jaw crusher crushes to below 150-200mm.

Medium to fine crushing:Cone crusher is used for hard rocks (granite, basalt).Impact crusher is used for medium hard rocks (limestone, sandstone).

Screening: vibrating screen classification, returning large particles for closed-loop crushing.

Stone shaping (optional): Optimize the particle shape by the sand making machine to improve the quality of the aggregate.

Finished product transportation: belt conveyor for stacking or direct Bulk cargo loading.

Customer site

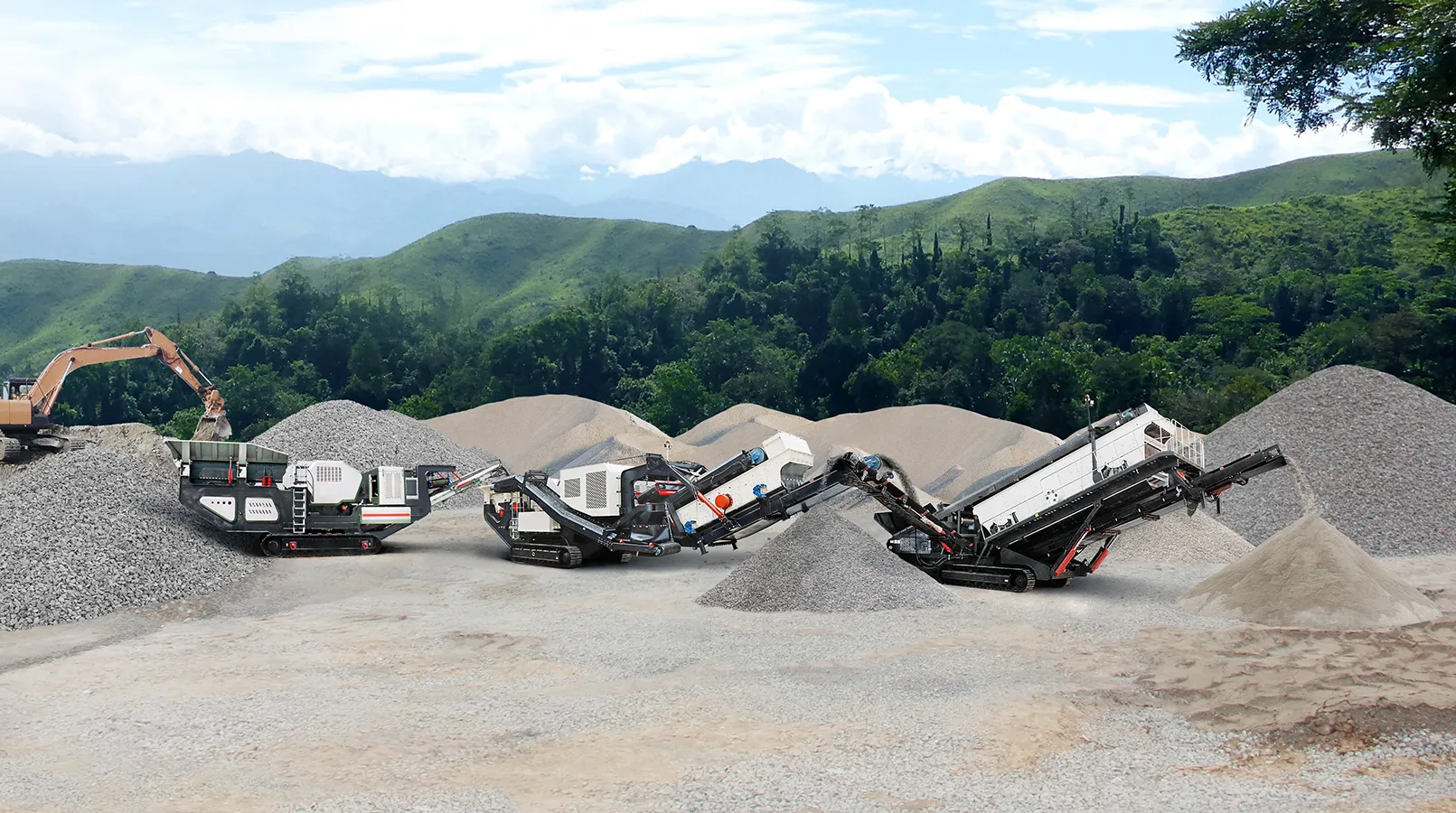

Russian Limestone Project

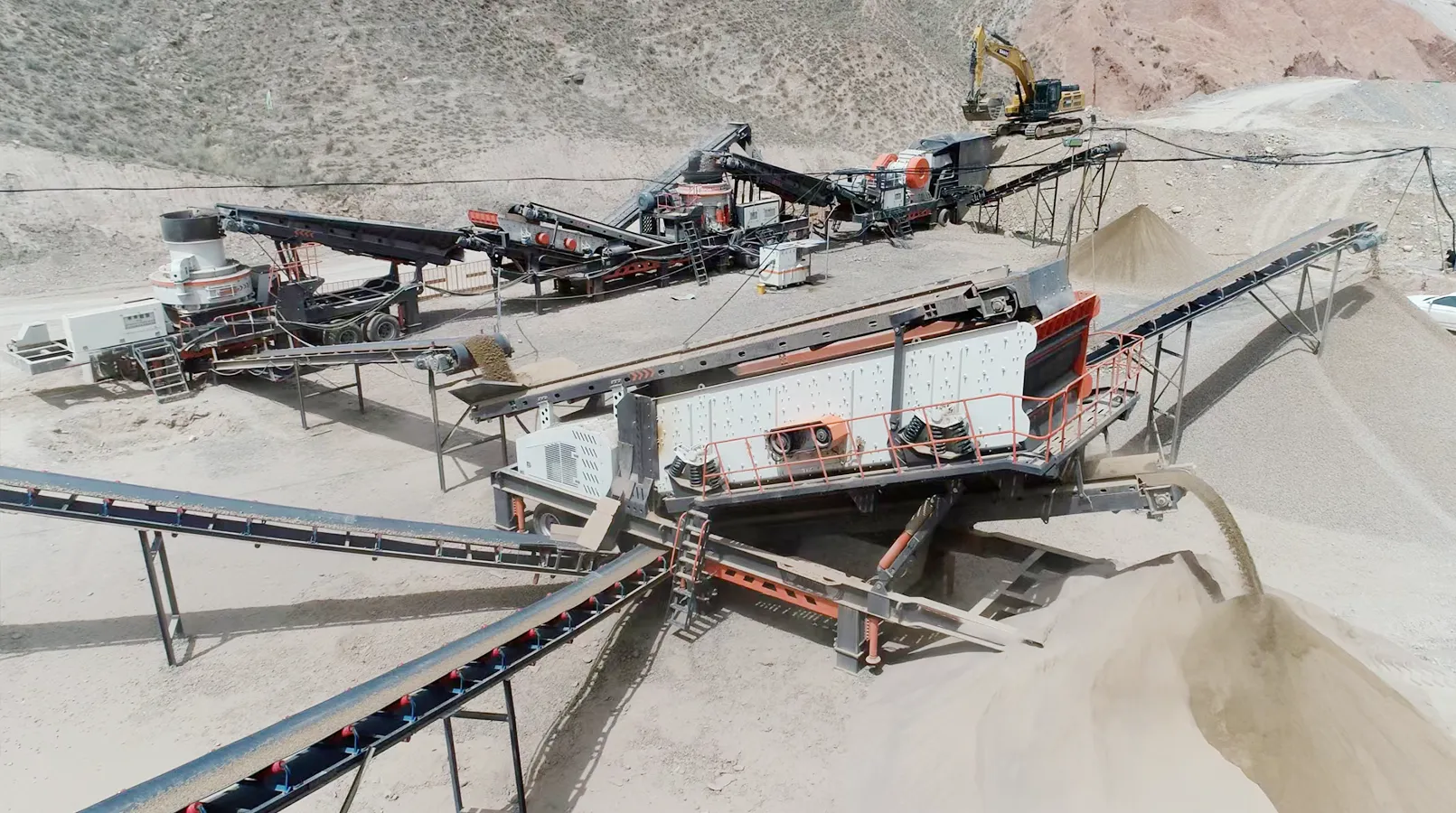

Tanzania Granite Project

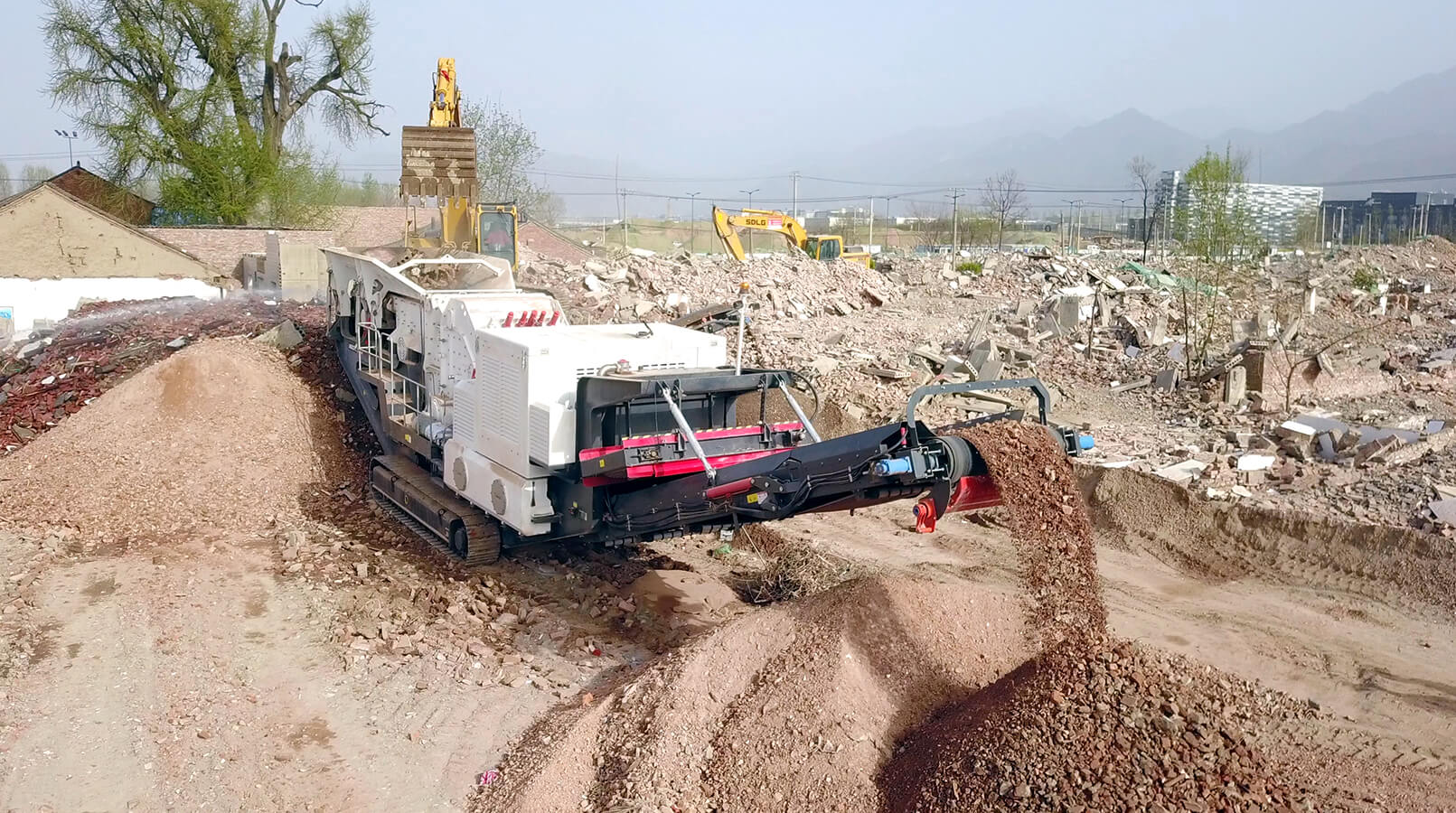

Guangxi Construction Waste Project

We provide on-site testing

Start the equipment on-site to run at no load or load
Measure key indicators such as production capacity, energy consumption, and particle size of the output.
The technical team explains the key points of operation throughout the process
You send the raw materials to our test center, and we provide production data reports.
