Product Introduction

The new oil-electric hybrid tracked impact crusher adopts a double-cavity heavy-duty rotor design, with a large crushing ratio and high production capacity. It is optimized for the crushing of construction waste (concrete/asphalt) and medium-hard stone materials (≤150MPa), combining the advantages of efficient crushing and convenient site transfer.

The equipment is superior to its peers
and the performance is unmatched

Product Advantages

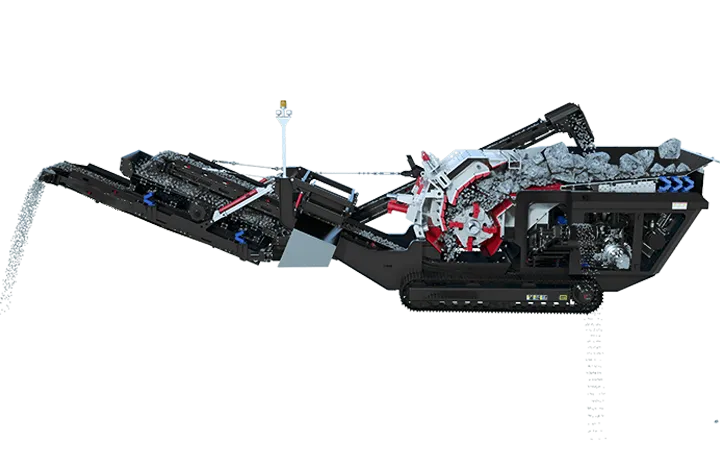

High Capacity and Good Particle Shape

High-performance impact crusher main machine with high capacity and good particle shape.

Real-Time Adjustment, Convenient and Quick

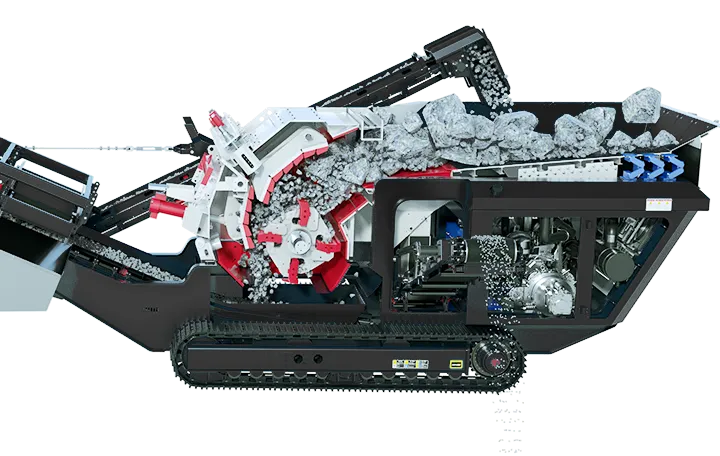

Integrated Unit

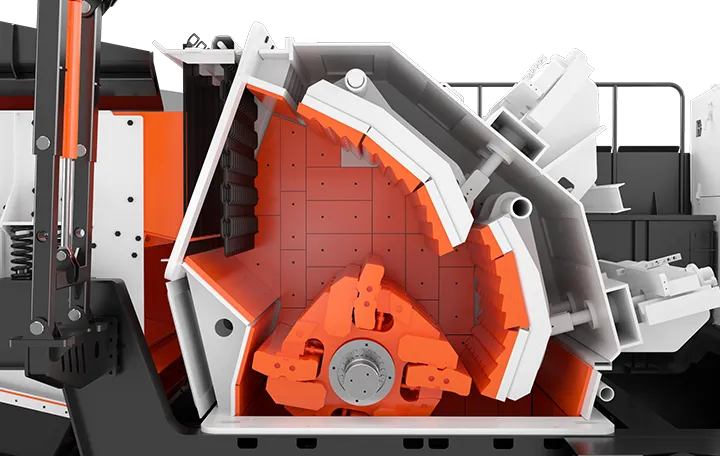

Large Crushing Chamber, Large Feed Particle Size

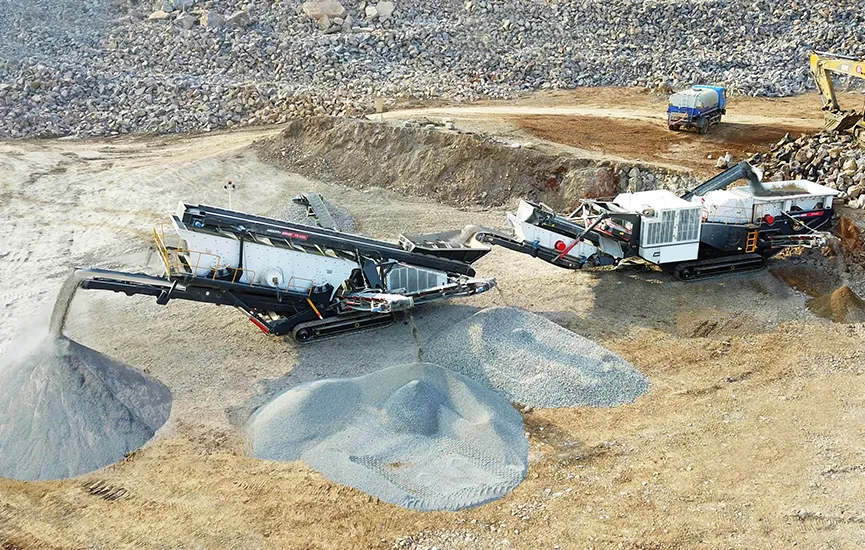

Crawler-type Mobile Impact Crushing Station for sale in Ecuador

Raw material: Granite
Model: TF150
Capacity: 350 T/H
Feeding size: ≤500 mm
Finished products: 0–10 mm, 10–20 mm, 20–40 mm, 40–60 mm

Free Quote

Product Parameters

model	TF150	‌T250 counterattack vehicle	‌TTF250 counterattacks against standard vehicles
Feeder
Model	GZD1038	ZDG1228	ZDG1228
Vibration Motor	2x3.7KW	5.5KW*2	5.5KW*2
Vibration Motor	Motor drive	Motor drive	Motor drive
Crusher
Model	LF150	LF250	LF250
Maximum feed siz	400mm	500mm	500mm
Motor and drive mode	160KW	250KW	250KW
Motor and drive mode	Motor drive	Motor drive	Motor drive
Chassis
NS415E	NS415E	NS415E
Boat-shaped frame	Q345B welding	Q345B welding	Q345B welding
Main belt conveyor
B800*11m	B1200*11m	B1200*11m
Motor reducer	11KW	电机减速器驱动15KW	电机减速器驱动15KW
Endless polyester canvas belt		EP300-B1200*5(6.0+1.5)	EP300-B1200*5(6.0+1.5)
Transfer belt conveyor
Specification	B500*2m	B500*2.4m	B500*2.4m
Motor reducer	4KW	Motor reducer drive 4KW	Motor reducer drive 4KW
Endless polyester canvas belt		EP200-B500*3(4.5+1.5)	EP200-B500*3(4.5+1.5)
Under-screen belt conveyor
Specification	B1000*5m	B1200*6.2m	B1200*6.2m
Motor reducer	5.5KW	Motor reducer drive7.5KW	Motor reducer drive7.5KW
Endless polyester canvas belt		EP300-B1200*5(4.5+1.5)	EP300-B1200*5(4.5+1.5)
Return belt conveyor
Specification	B500*7.7m	B500*9.3m	B500*9.3吗、
Motor reducer	5.5KW	Motor reducer drive 4KW	Motor reducer drive 4KW
Endless polyester canvas belt		EP200-B500*3(4.5+1.5)	EP200-B500*3(4.5+1.5)
Return screen
Specification	2YK1530	YS1320	GLS1630FA
Motor	11KW	3.7KW*2	3KW*2
Motor drive	Motor drive	ROST spring
Iron remover
Specification	RCYQ-13	RCYQ-13	RCYQ-13
Motor reducer	3KW	Motor reducer drive 3KW	Motor reducer drive 3KW
Powertrain
Generator Set	320KW Cummins generator set	500KW generator set	500KW generator set
Electrical System	It adopts PLC intelligent control system, has fault alarm and fault record query functions, visual workflow, simple operation, screen display of various parameters monitoring, and the engine can automatically adjust speed according to load conditions.	The main motor of the impact crusher is frequency conversion started, and other motors are directly started. The main electrical components are Schneider	The main motor of the impact crusher is frequency conversion started, and other motors are directly started. The main electrical components are Schneider
Hydraulic system	Belt conveyor folding cylinder and impact crusher main engine cylinder hydraulic pump, valve, station and oil pipe accessories	Unpacking and discharging gap adjustment, side discharging folding and return part disassembly, load sensitive, electro-hydraulic proportional valve travel valve group	Unpacking and discharging gap adjustment, side discharging folding and return part disassembly, load sensitive, electro-hydraulic proportional valve travel valve group
