Product Introduction

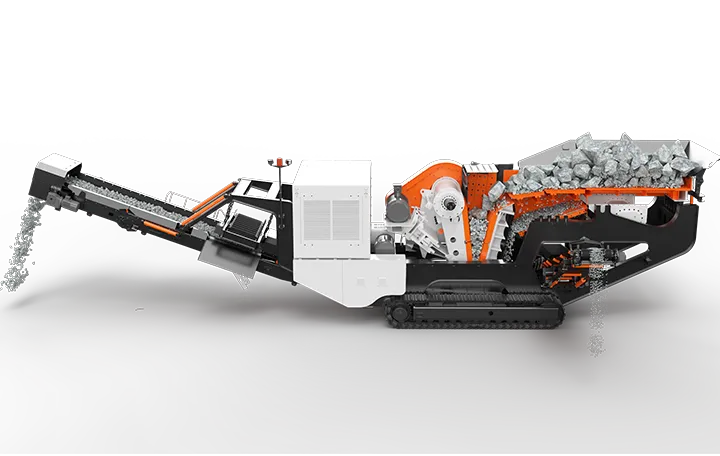

Suitable for the coarse crushing of all natural stone materials. The equipment adopts a tracked vehicle chassis, full hydraulic drive, and is equipped with a large crushing ratio jaw crusher, feeder, belt conveyor, and other auxiliary equipment to form an integrated group operation mode. It solves the coarse crushing problem of materials in one stop, with high reliability, high adaptability, and no fear of narrow terrain and harsh environments.

The equipment is superior to its peers
and the performance is unmatched

Product Advantages

Powerful and Stable

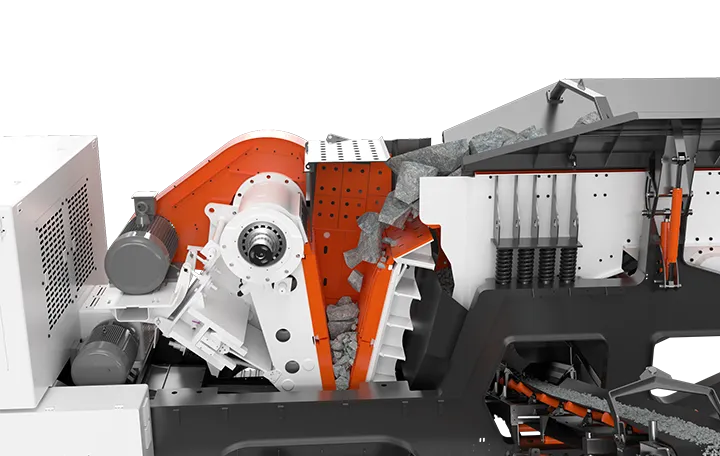

Large Crushing Force, Convenient and Fast

Reduce Downtime

Intelligent Operation, Real-Time Adjustment

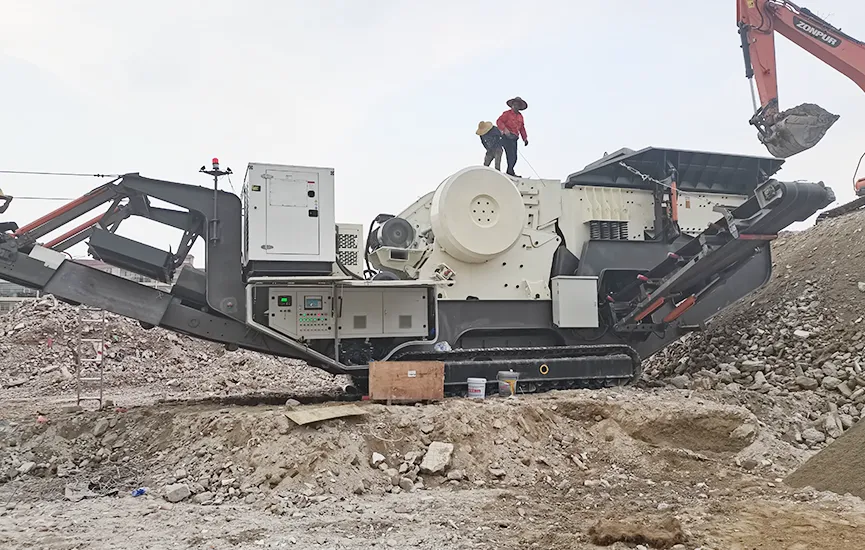

Crawler-type Mobile Jaw Crushing Station for sale in Vietnam

Raw material: Limestone
Model: TC106
Capacity: 400 T/H
Feeding size: ≤800 mm
Finished products: 0–100 mm

Free Quote

Product Parameters

Model	TC96	TC106	TC116	TC120
Feeder
Equipment	GZD9638	ZSW1042	GZD1142	GZD1248
Motor	5.5KW*2	7.5KW*2	7.5KW*2	7.5KW*2
Driving method	motor drive	motor drive	motor drive	motor drive
Crushe
Equipment	SC96	SC106	SC116	SC120
Maximum feed siz	550mm	650mm	700mm	800mm
Electrical machiner	90KW	110KW	132KW	160KW
Driving metho	motor drive	motor drive	motor drive	motor driv
Fram
Hydraulic Crawler Chassi	35T	DL385V	DL385V	NS415E
Boat fram	Q345B Welding	Q345B Welding	Q345B Welding	Q345B Weldin
Main Conveyo
Specification	B1000*12.9m	B1000*12m	B1000*12m	B1200*12.9m
Driving metho	Motor reducer drive 11KW	Motor reducer drive 11KW	Motor reducer drive 11KW	Motor reducer drive 11K
Ring polyester canvas bel	EP300-B1000*5(6.0+1.5)	EP300-B1000*5(6.0+1.5)	EP300-B1000*5(6.0+1.5)	EP300-B1200*5(6.0+1.5)
Unearthed belt conveyo
Specification	B650*6.8m	B650*6.8m	B650*6m	B650*6.8m
Driving metho	Motor reducer drive 4KW	Motor reducer drive 4KW	Motor reducer drive 4KW	Motor reducer drive 4K
Ring polyester canvas bel	EP200-B650*3(4.5+1.5)	EP200-B650*3(4.5+1.5)	EP200-B650*3(4.5+1.5)	EP200-B650*3(4.5+1.5)
Iron remove
Specificatio	RCYQ-13	RCYQ-13	RCYQ-13	RCYQ-13
Driving metho	Motor reducer drive 3KW	Motor reducer drive 3KW	Motor reducer drive 3KW	Motor reducer drive 3KW

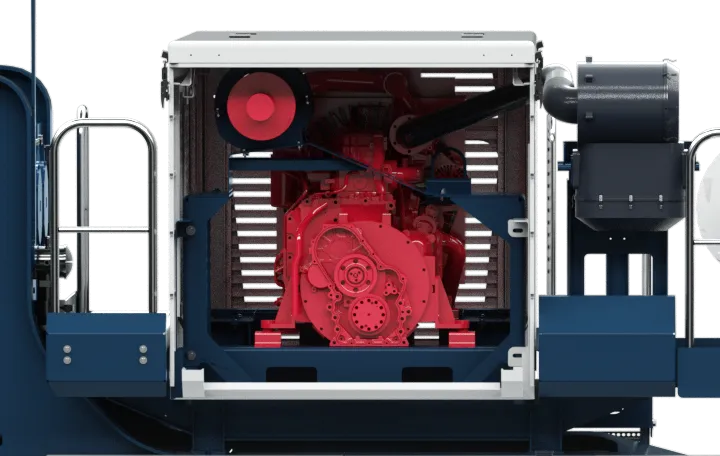

Power syste
Generating se	240KW发动机组	300KW engine set	300KW engine set	300KW engine set
Electrical syste
Electrical control cabinets	Jaw crusher motor soft start, other motors direct start, main electrical components Schneider	Jaw crusher motor soft start, other motors direct start, main electrical components Schneider	Jaw crusher motor soft start, other motors direct start, main electrical components Schneider	Jaw crusher motor soft start, other motors direct start, main electrical components Schneider
Hydraulic syste
Sil	Hydraulic automatic folding	Hydraulic automatic folding	Hydraulic automatic folding	Hydraulic automatic folding
Belt press folding cylinder	Hydraulic automatic foldin	Hydraulic automatic folding	Hydraulic automatic folding	Hydraulic automatic folding
Hydraulic pumps, valves, accessories	Load sensitive, electro-hydraulic proportional valve group	Load sensitive, electro-hydraulic proportional valve group	Load sensitive, electro-hydraulic proportional valve group	Load sensitive, electro-hydraulic proportional valve group
