Vibrating Feeder

Discounts

Production capacity:

80-1000t/h

Feed size:

300-1050mm

Applicable materials:

river pebbles, granite, basalt, iron ore, limestone, quartz, coal gangue, construction waste, etc.

60s

Manual response

30Min

Give technical reply

24h

Free customized solution

Hands-on guidance on factory construction

Special vehicle pick-up for factory visits

One-to-one after-sales service

Inspection of the production site nearby

Product Introduction

It can feed the crushing machinery continuously and evenly and screen the materials. It is widely used in the combined crushing and screening equipment in the mineral processing, building materials, silicate and chemical industries.

Product Advantages

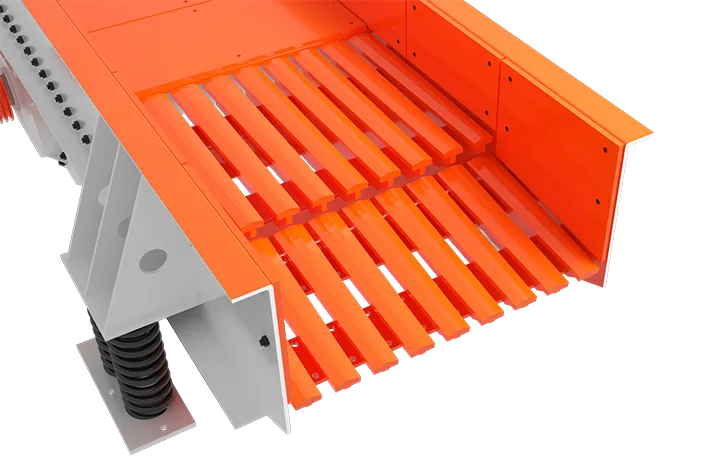

Anti-blocking and efficient design

The special grate structure is used to effectively prevent material blockage and achieve primary screening, increasing production efficiency by 30%.

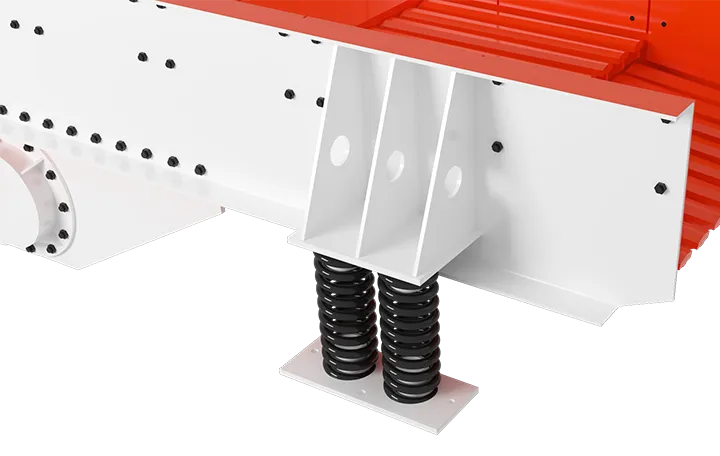

Stable vibration reduction system

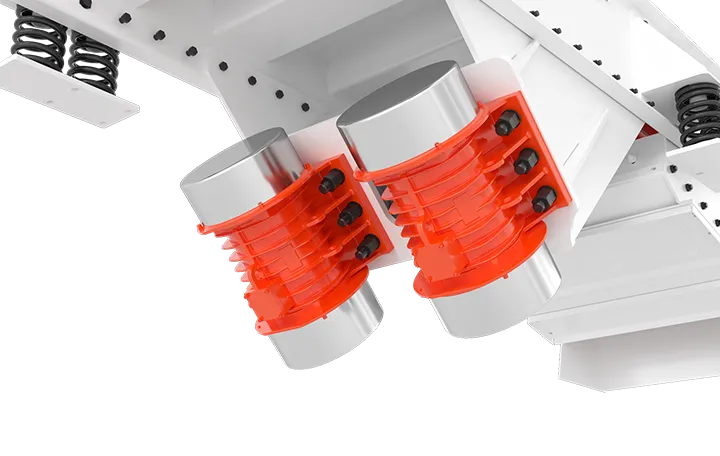

Energy-saving power configuration

Product Parameters

Model	Maximum Feed Particle Size (mm)	Processing Capacity (t/h)	Motor Power (kw)	Installation Inclination Angle (°)	Tank Body Dimensions (mm)
GZD-650x2300	300	80-100	2×1.1	10-20	650×2300
GZD-750x2500	350	100-130	2×1.1	10-20	750×2500
GZD-850x3000	400	120-150	2×3	10-20	850×3000
GZD-1000x3600	500	150-200	2×3.7	10-20	1000×3600
GZD-1100x3600	580	240-300	2×3.7	10-20	1100×3600
GZD-1300x3600	650	450-600	2×5.5	10-20	1300×3600
GZD-1500x3600	1050	450-1000	2×7.5	10-20	1500×3600
GZD-2000x3600	1200	550-1000	2×10	10-20	2000×3600
GZD-2500x5000	1500	650-1500	2×18	10-20	2500×5000
ZSW-380x95	500	100-280	8p 11	0-5-10-15	3800×960
ZSW-490x110	630	150-400	6p 15	00-5-10	4900×1100
ZSW-490x130	750	400-700	6p 22	00-5-10	4900×1300
ZSW-600x130	750	400-700	4p 22	00-5-10	6000×1300
ZSW-600x150	800	500-900	4p 30	00-5-10	6000×1500
ZSW-600x180	900	700-1300	4p 37	00-5-10	6000×1800
ZSW-600×200	1200	800-1500	4p 55	00-5-10	6000×2000
