Multi-Cylinder Hydraulic Cone Crusher-ZOOMJO

Product Introduction

Multi-cylinder hydraulic cone crusher adopts multi-cylinder hydraulic system to replace the traditional spring structure. It is composed of core components such as fixed cone, dynamic cone and intelligent adjustment device. It is specially designed for fine crushing of high hardness materials in mining, metallurgy and other industries. It has the advantages of efficient crushing, precise adjustment and stable operation.

The equipment is superior to its peers
and the performance is unmatched

Product Advantages

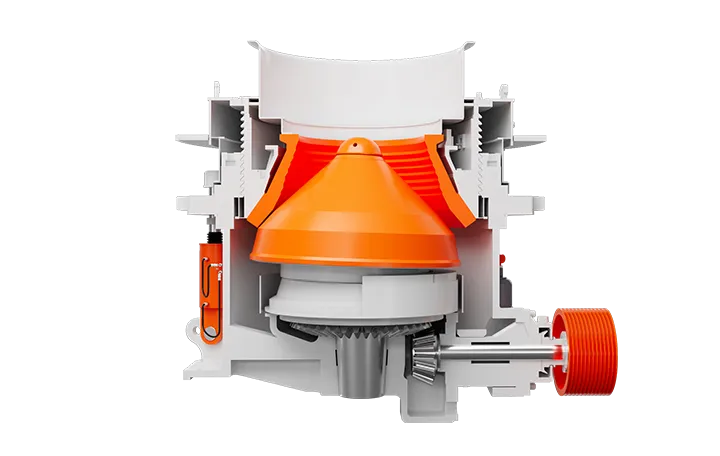

Laminated crushing technology

Adopting the lamination crushing principle, the crushing efficiency is improved by mutual extrusion between materials, and the loss of wearing parts is reduced by more than 30%.

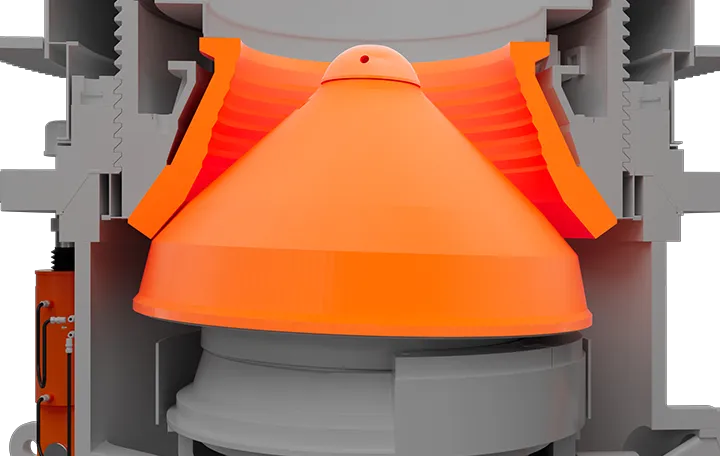

High wear-resistant structure design

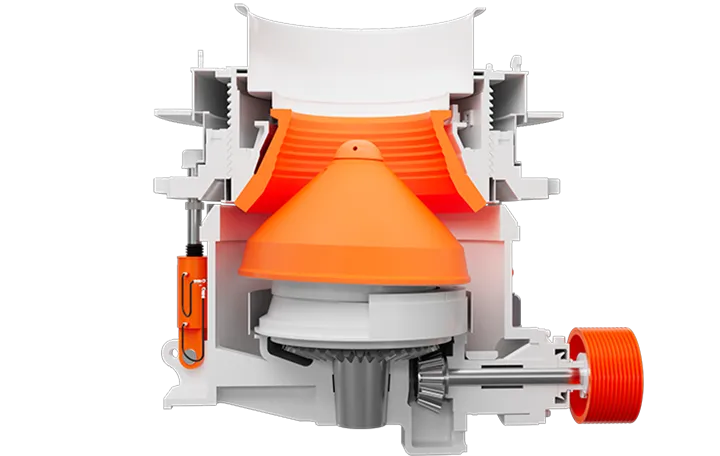

Multiple protection devices

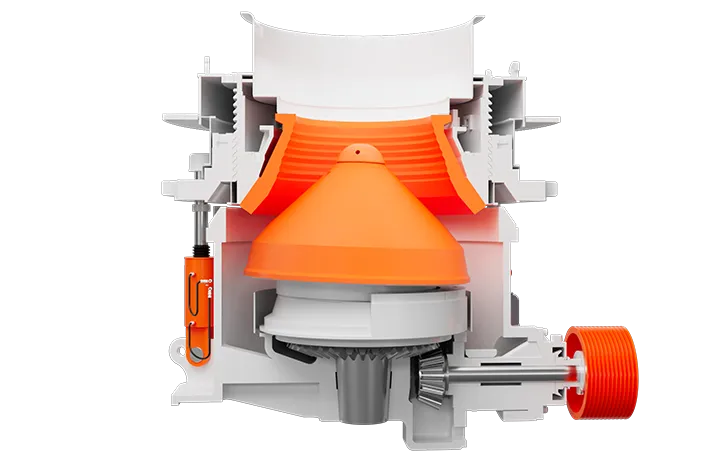

Precision adjustment system

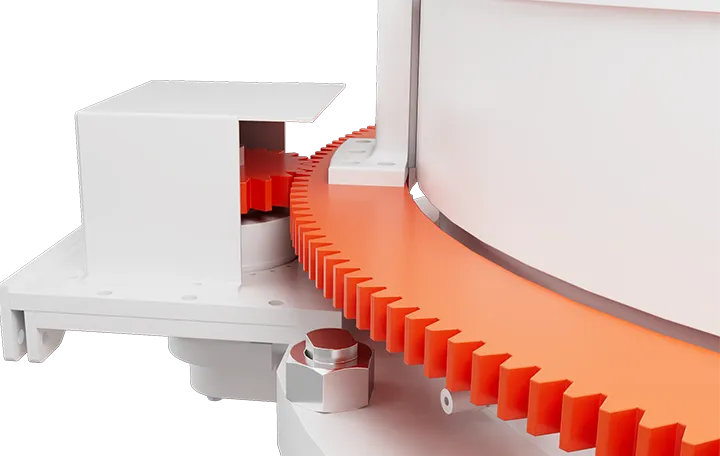

Efficient transmission structure

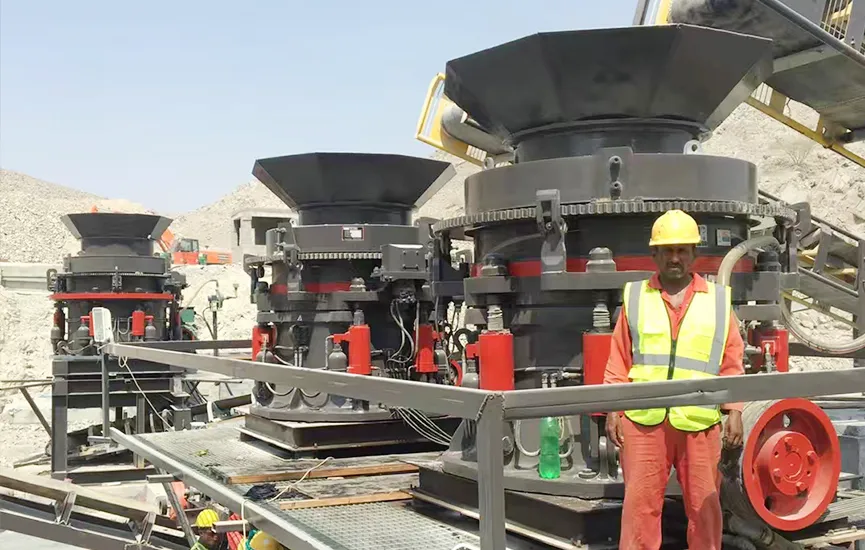

Multi-cylinder hydraulic cone crusher for sale in Zimbabwe

Raw material: Iron Ore
Model: XHP500
Capacity: 550 T/H
Feeding size: ≤300 mm
Finished products: 0–32 mm (Primary target)

Free Quote

Product Parameters

Model	Cavity Type	Feeding Size(mm)	Closed Side Feeding Size(mm)	Minimum Discharge Opening(mm)	Motor Power(kw)	Capacity(t/h)
XHP100	EC	175	140	19	90	45-140
	C	125	105	13
	MC	100	70	10
	M	71	50	9
	MF	33	20	6
XHP200	C	235	190	19	160	65-250
	MC	171	120	16
	M	150	95	13
	MF	116	70	8
XHP300	EC	265	230	25	220	85-440
	C	240	210	20
	MC	190	150	15
	M	145	105	11
	MF	120	80	8
XHP400	EC	360	290	30	315	135-625
	C	310	250	25
	MC	260	196	20
	M	182	110	13
	MF	135	90	10
XHP500	EC	370	330	38	400	200-790
	C	320	290	28
	MC	245	210	22
	M	180	130	13
	MF	150	95	10
XHP800	EC	450	352	38	630	265-1200
	C	373	298	32
	MC	340	275	25
	M	280	230	16
	MF	235	150	10
