Impact Crusher-ZOOMJO

Product Introduction

It integrates the current excellent impact crushing technology at home and abroad, optimizes the rotor and crushing cavity according to different applications, and adopts new high wear-resistant materials, which greatly improves the equipment performance and processing capacity.

The equipment is superior to its peers
and the performance is unmatched

Product Advantages

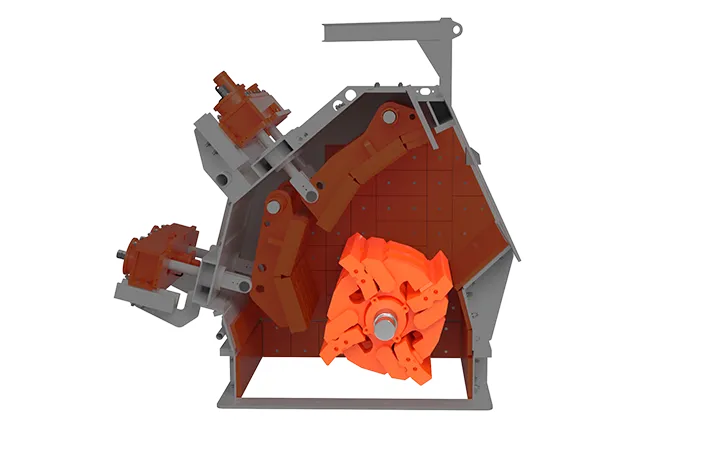

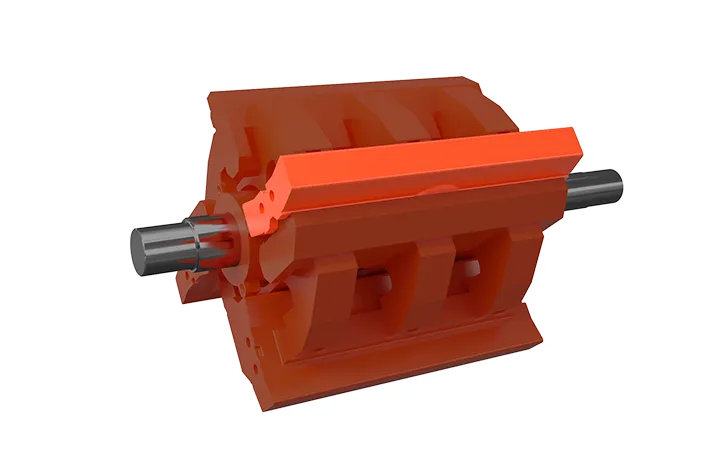

Wear-resistant blow bar system

The use of high impact resistance and wear resistance plate hammer ensures stable discharge particle size and extends the service life by more than 30%.

New wear-resistant materials

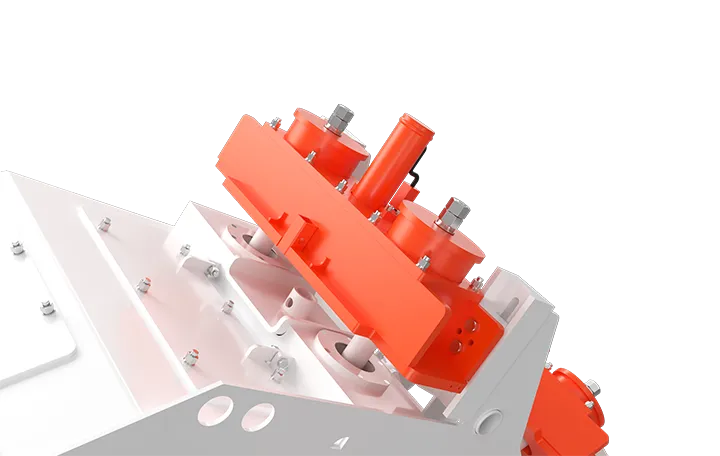

Intelligent hydraulic control

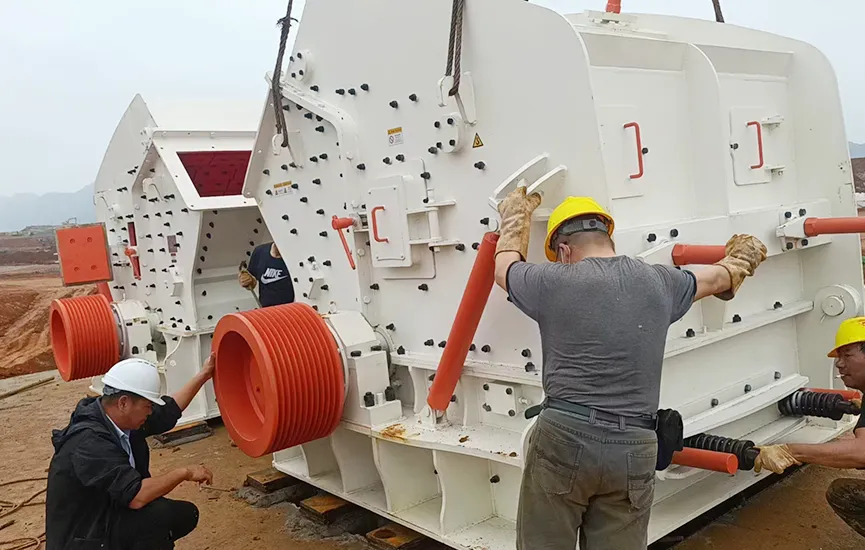

Impact Crusher for sale in South African

Raw material: Gold Ore
Model: PFV-1520
Capacity: 500 T/H
Feeding size: ≤250 mm
Finished products: ≤0–25 mm, 25–50 mm

Free Quote

Product Parameters

PF counterattack

Model	Specification	Feed Opening Size (mm)	Feeding Size (mm)	Capacity (t/h)	Motor Power (kw)	Overall Dimension (mm)
PF-1007	φ1000×700	400×730	≤250	15-60	45	2319×1654×2558
PF-1010	φ1000×1050	400×1080	≤300	50-90	55	2319×2001×2558
PF-1210	φ1250×1050	450×1060	≤300	80-150	90	2585×2053×2809
PFV-1214	φ1250×1400	450×1440	≤300	100-200	132	2582×2403×2809
PFV-1315	φ1320×1500	550×1530	≤350	210-220	185	2930×2761×3053
PFV-1320	φ1320×2000	610×1900	≤500	220-250	220	3224×3175×2706
PFV-1520	φ1500x2000	830×2040	≤700	300-550	(220-250)×2	3959×3564×3330
PFV-1820	φ1800x2000	1260×2040	≤800	600-800	630-710	4400×3866×4009

European version of the counterattack

Model	Adjustable range of discharge port (mm)	Feed size (mm)	Processing Capacity (t/h)	Power (kw)
PS-1010	20-100	600	100-200	90-110
PS-1210	20-100	900	140-285	110-160
PS-1214	20-100	900	200-400	160-200
PS-1317	20-200	950	250-500	200-315
PS-1520	20-200	1000	400-600	220x2
PS-1620	20-200	1000	550-700	280x2
