Roller Crusher
Discounts

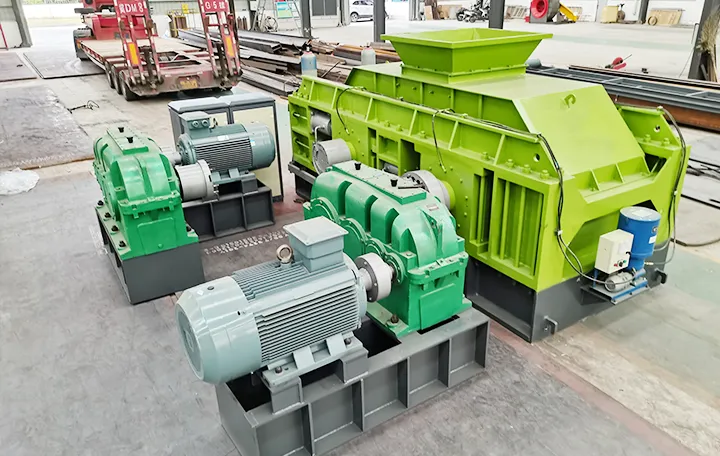

There are different types of roller crushers, single roller crusher, double roller crusher, smooth roller crusher, and toothed roller crusher in ZOOMJO. The crusher we commonly use is a double roller crusher. Roller crusher is a high-efficiency crushing equipment with integrated mechanical, electrical and hydraulic design, and adopts advanced structural design and intelligent control system. This equipment performs particularly well in aggregate and grinding systems, and can increase production capacity by 30%-40%, while reducing energy consumption by 20%-30%. It has significant advantages such as stable operation, easy maintenance, energy saving and high efficiency, and is an ideal choice in the field of modern crushing and processing.


The heavy-duty thickened roller skin is used with an automatic lubrication system to greatly extend the service life of the equipment.






| Model | Roller diameter (mm) |
Roller width (mm) |
Maximum feed size (mm) |
Corresponding processing capacity of discharge port(t/h) | Motor power(kw) | ||
| 5mm | 10mm | 15mm | |||||
| 2PGY1008 | ø 1000 | 800 | ≤40 | 20-80 | 30-110 | 50-150 | 2×55 |
| 2PGY1210 | ø 1200 | 1000 | ≤60 | 25-100 | 50-180 | 80-240 | 2×90 |
| 2PGY1510 | ø 1500 | 1000 | ≤80 | 30-130 | 60-240 | 90-330 | 2×160 |
| 2PGY1810 | ø 1800 | 1000 | ≤100 | 40-170 | 80-320 | 120-450 | 2×250 |
| 2PGY2012 | ø 2000 | 1200 | ≤120 | 60-220 | 110-400 | 170-600 | 2×315 |
Do you need to know the product price? Model? Configuration plan? Output?
Please leave your correct information and we will reply to you within 24 hours.
