Product Introduction

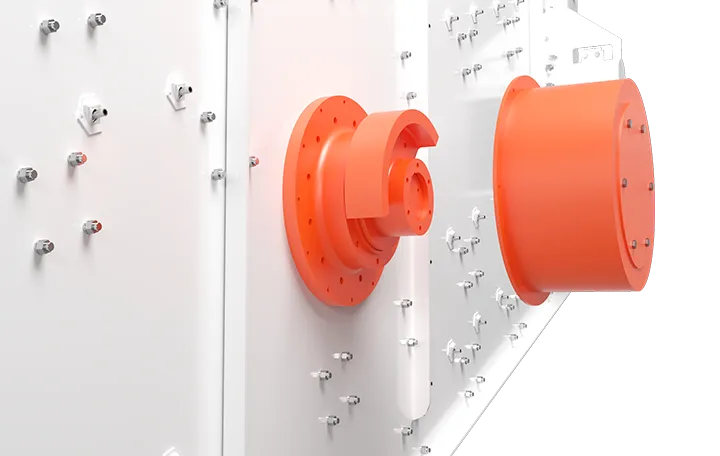

YK series vibrating screen adopts block eccentric vibrator, and the motor is directly connected to the drive through a flexible coupling. It has the characteristics of advanced structure, strong exciting force, low vibration noise, easy maintenance, firmness and durability.

Product Advantages

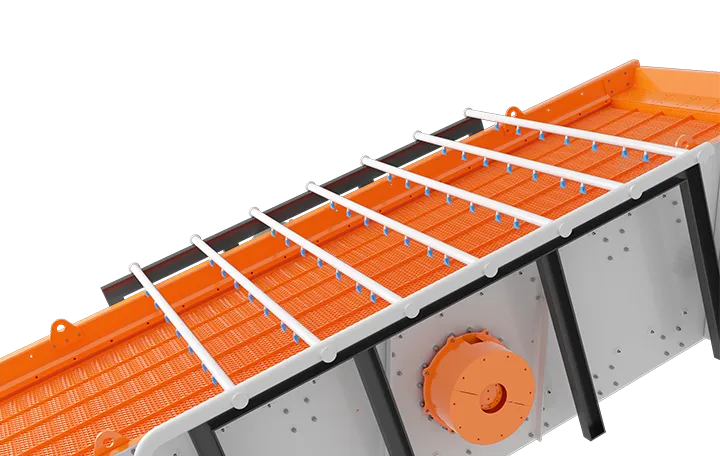

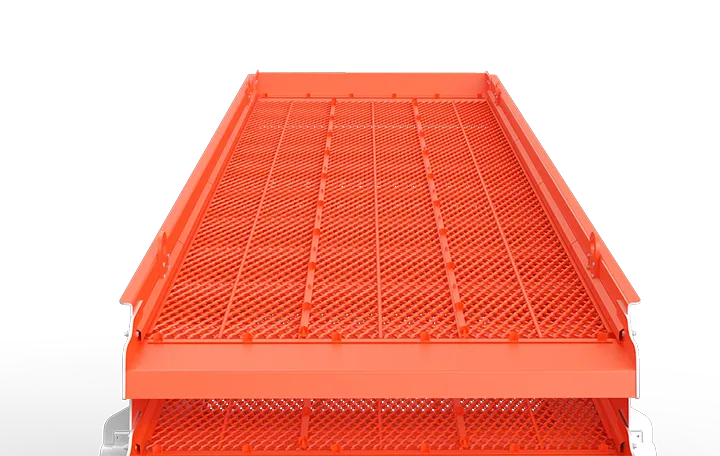

Efficient screening

Strong vibration effectively prevents hole blockage, improves screening efficiency by 30% and increases production capacity by 25%

Convenient maintenance

Energy saving and environmental protection

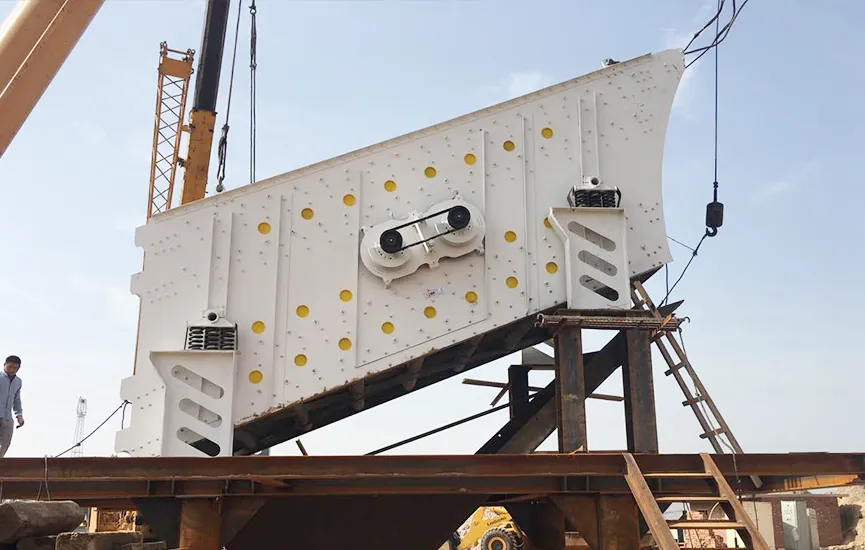

Circular vibrating screen for sale in Namibia

Raw material: Limestone
Model: 3YK3075
Capacity: 450 T/H
Feeding size: ≤40 mm
Finished products: 0–5 mm, 5–10 mm, 10–20 mm, 20–30 mm

Free Quote

Product Parameters

Model	Screen Surface Specification (mm)	Layers	Feeding Size(mm)	Sieve Pore Size (mm)	Capacity (t/h)	Power (kw)	Vibrating Frequency (r/min)	Stroke (mm)
2YK1237	3700x1200	2	≤400	3-50	30-100	5.5	970	5-9
3YK1237	3700x1200	3	≤400	3-50	30-100	7.5	970	5-9
2YK1548	4800x1500	2	≤400	3-100	30-275	15	970	5-9
3YK1548	4800x1500	3	≤400	3-100	30-275	15	970	5-9
2YK1848	4800x1800	2	<400	3-100	56-330	18.5	970	5-9
3YK1848	4800x1800	3	≤400	3-100	56-330	18.5	970	5-9
4YK1848	4800x1800	4	<400	3-80	56-330	22	970	5-9
2YK1860	6000x1800	2	<400	3-100	65-586	18.5	970	5-9
3YK1860	6000x1800	3	≤400	3-100	65-586	22	970	5-9
4YK1860	6000x1800	4	≤400	3-100	65-586	30	980	5-9
2YK2160	6000×2100	2	≤400	3-100	81-720	22	980	5-9
3YK2160	6000x2100	3	≤400	3-100	81-720	30	970	5-9
4YK2160	6000x2100	4	≤400	3-100	81-720	30	980	5-9
2YK2460	6000×2400	2	≤400	3-150	100-810	22	970	5-9
3YK2460	6000×2400	3	<400	3-150	100-810	30	980	5-9
4YK2460	6000x2400	4	≤400	3-150	150-850	37	980	5-9
2YK2870	7000x2800	2	≤400	5-100	120-680	22×2	750	8
3YK2870	7000x2800	3	≤400	5-100	180-720	22x2	750	8
2YK3075	7500x3000	2	≤400	5-100	200-700	22x2	750	8
3YK3075	7500x3000	3	≤400	5-100	230-800	30×2	750	8
