Product Introduction

The shaking table is an efficient gravity separation equipment. Through the combined effect of mechanical vibration and water washing, it can precisely separate mineral particles with a size of 0.1-2mm, and the processing capacity can reach 5-15t/h. This equipment can be used as an independent mineral processing unit or combined with jigs, flotation machines and other devices to form a composite mineral processing system. The separation efficiency is increased by 40% compared with traditional equipment, and it is particularly suitable for the density separation operation of fine-grained ores.

Product Advantages

Efficient sorting

The enrichment ratio is high, the separation efficiency is increased by 30%, and the operation is simple.

High-quality finished products

Energy conservation and environmental protection

Economical and practical

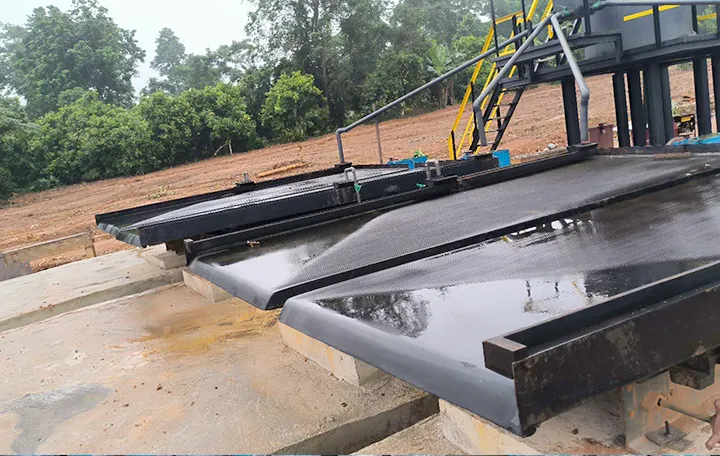

Shaking table for sale in South Africa

Raw material: Gold ore slurry (post-grinding)
Model: 6S-4450
Capacity: 15–25T/D
Feeding size: 0.019–2 mm
Finished products: <Concentrate:500–800:1 upgrade ratio (≥92% Au recovery)
Middlings:Recycled to regrind
Tailings:≤0.08 g/t residual Au

Free Quote

Product Parameters

Name		Coarse sand shaker	Fine sand shaker	Slime Shaker
Bed size	Length （mm）	4450	4450	4450
	Transmission end width（mm）	1855	1855	1855
	Concentrate end width（mm）	1546	1546	1546
Maximum feed size（mm）		2	0.5	0.15
Feeding amount（t/d）		30-60	10-20	15-25
Feed concentration(%)		25-30	20-25	15-25
Route （mm）		16-22	11-16	8-16
Frequency (f)		45-48	48-53	50-57
Bed surface cleaning water volume（t/d）		80-150	30-60	10-17
Horizontal slope of bed surface(°)		2.5-4.5	1.5-3.5	1-2
Longitudinal slope of bed surface(%)		1.4	0.92	----
Bed surface angle(°)		32-42	40	42
Mineral processing area（㎡）		7.6	7.6	7.6
Bed length ratio		2.6	2.6	2.6
Bed end shape		Rectangle	Zigzag	Triangle
Motor power(kw)		1.1	1.1	1.1
Transmission mechanism		Eccentric connecting rod mechanism
