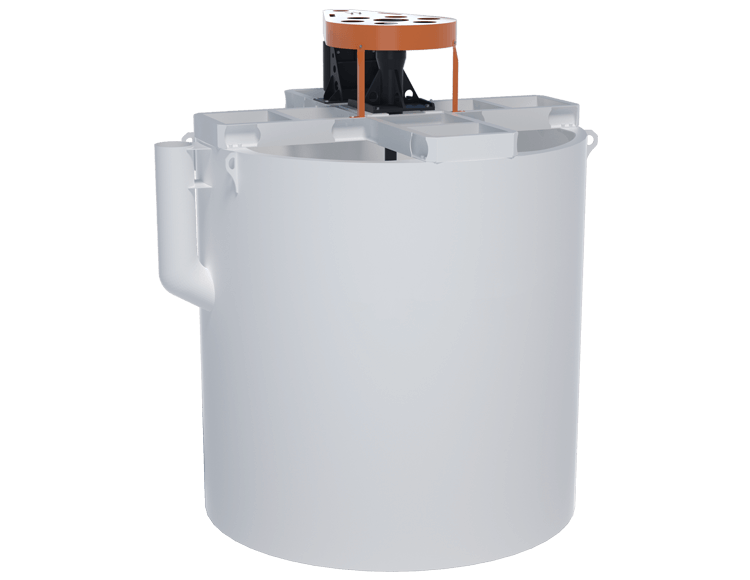

Mixing Tank-ZOOMJO

Product Introduction

The mixing bucket is a necessary equipment driven by an electric motor V-belt to rotate the impeller, fully mix the drug and slurry evenly, increase the reaction time of the drug, and enhance the quality of the drug reaction. This machine is suitable for mining and can also be used for mixing various chemical ingredients.

Product Advantages

Efficient sealing design

The compact structure, combined with a dust blocking plate, effectively prevents dust and water mist from entering, and improves sealing performance by 50%.

Uniform mixing technology

Intelligent regulation system

Advanced structural configuration

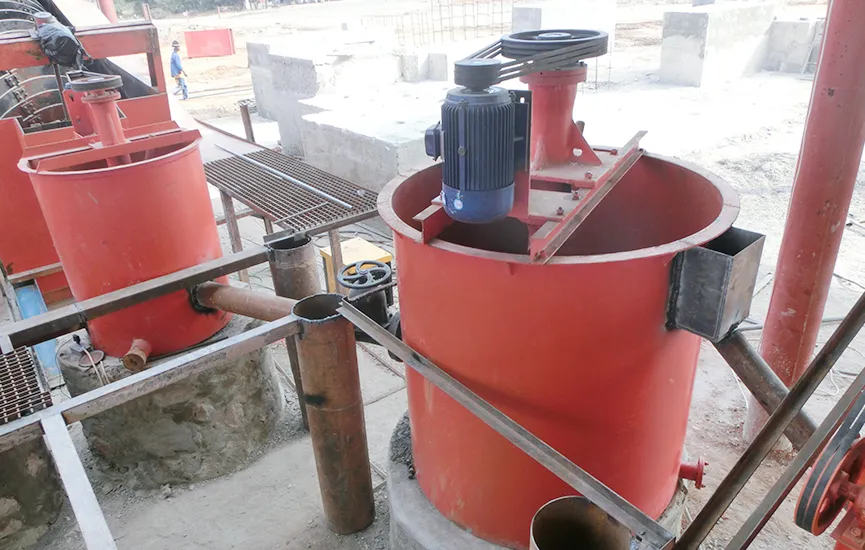

Mixing tank for sale in Vietnam

Raw material: Gold ore slurry
Model: BJ-3000×3000
Capacity: 80–120 T/H (slurry processing)
Feeding size: ≤0.3 mm (80% passing size)
Finished products:Uniformly conditioned slurry for leaching (pH 10.5–11.5, reagent dispersion ≥98%)

Free Quote

Product Parameters

Performance parameters of nomal agitation tank

Model	Effective Volume (m³)	Impeller Speed (r.p.m)	Diameter of Impeller (mm)	Motor Type	Motor Power (kw)	Weight (kg)
BJ-500×500	0.074	525	240	Y802-4	0.75	162
BJ-750×750	0.25	530	240	Y10OL-6	1.5	305
BJ-1000×1000	0.58	513	230	Y90L-4	1.5	680
BJ-1250×1250	1.4	401	380	Y100L1-4	2.2	1008
BJ-1500×1500	2.1	332	380	Y132M1-6	4	1310
BJ-1600×1600	2.56	332	380	Y132M2-6	5.5	1630
BJ-2000×2000	5.46	305	550	Y160M-6	7.5	1900
BJ-2000×2500	5.97	285	630	Y160M-6	7.5	2360
BJ-2500×2500	10	285	630	Y160L-6	11	2766
BJ-3000×3000	19.1	200	800	Y225M-8	22	4808
BJ-3500×3500	29.5	190	800	Y225M-8	22	5580
BJ-3550×4000	35	194	850	Y250M-8	30	5939
BJ-4000×4000	46	210	1000	Y280S-8	37	8036

Performance parameters of high-density agitation tank

Model	Effective Volume (m³)	Impeller Speed (r.p.m)	Diameter of Impeller (mm)	Motor Type	Motor Power (kw)	Weight (kg)
BJN-1000×1000	0.58	530	400	Y132M2-6	5.5	1700
BJN-1500×1500	2.25	280	500	Y180L-6	15	2210
BJN-2000×2000	5.8	250	650	Y200L2-6	22	2985
BJN-3000×3000	19.1	210	700	Y225M-8	30	4660
BJN-3500×3500	30	194	850	Y250M-8	37	5639
BJN-4000×4000	46	121.6	1000	Y280S-8-B3	45	8156

Performance parameters of chemical agitation tank

Model	Effective Volume (m³)	Impeller Speed (r.p.m)	Diameter of Impeller (mm)	Motor Type	Motor Power (kw)	Weight (kg)
BJW-500×500	0.074	525	240	Y802-4	0.75	142
BJW-500×600	0.094	525	240	Y802-4	0.75	210
BJW-750×750	0.25	530	240	Y100L-6	1.5	280
BJW-1000×1000	0.58	513	230	Y90L-4	1.5	420
BJW-1250×1250	1.4	401	380	Y100L1-4	2.2	973
BJW-1500×1500	2.2	320	380	Y132M1-6	4	1265
BJW-1600×1600	2.56	332	380	Y132M2-6	5.5	1530
BJW-2000×2000	5.46	233	550	Y132M2-6	5.5	1850
BJW-2500×2500	11.2	285	630	Y160L-6	11	2681
BJW-3000×3000	17.5	200	800	Y225M-8	22	4620
BJW-3500×3500	29.5	190	800	Y225M-8	22	5380
BJW-4000×4000	46	200	1000	Y250M-8	30	7850
