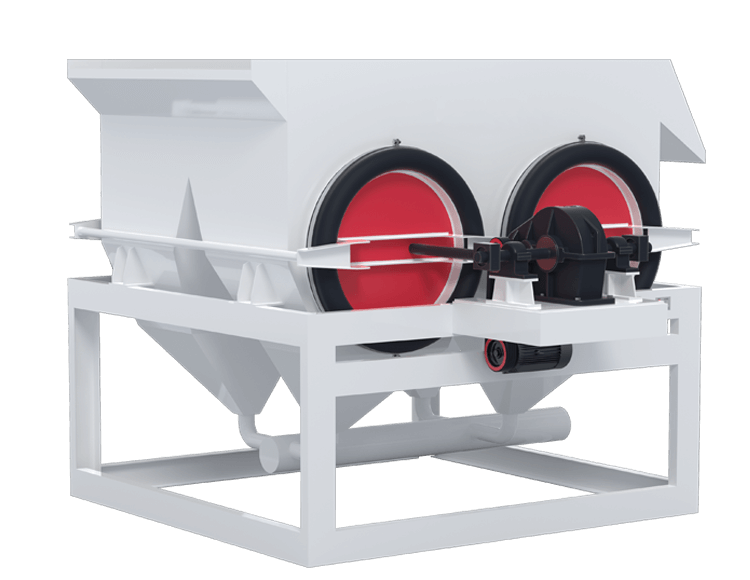

Product Introduction

The sawtooth wave jigging machine is one of the key equipment in gravity mineral processing. Due to its large processing capacity, wide range of particle size separation, high recovery rate and good effect, the sawtooth wave jigging machine is widely used in the separation of placer gold, tin, tungsten, lead, zinc, antimony, manganese, diamond, iron ore and other non-ferrous metallurgical mines and gold mining ships.

Product Advantages

Efficient sorting

The sawtooth wave pulsation curve is optimized for the recovery of fine-grained minerals to reduce tailing.

Energy conservation and environmental protection

Strong adaptability

Automated control

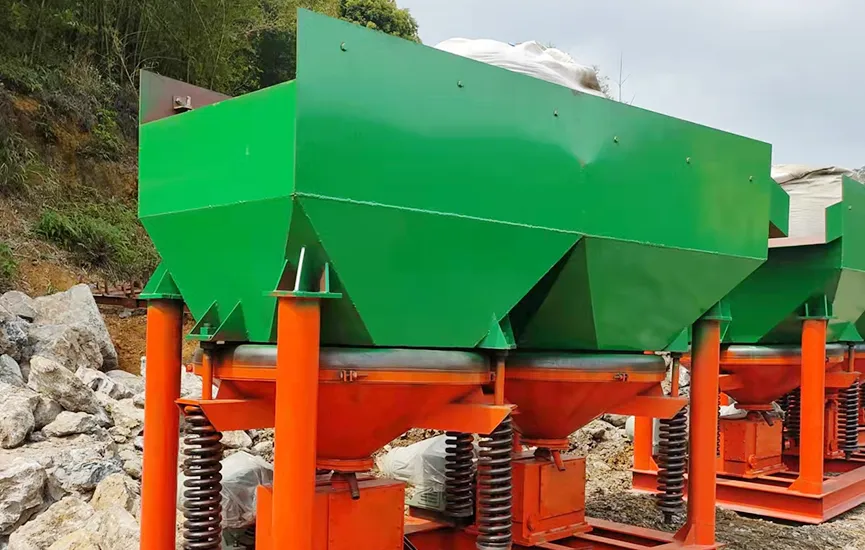

Jig separator for sale in Congo (DRC)

Raw material: Alluvial gold ore / Eluvial deposits
Model: JT5-2
Capacity: 12–18 T/H (dry feed)
Feeding size: 0–50 mm
Finished products: Concentrate: 80–100:1 upgrade ratio (≥88% Au recovery)
Middlings: Recycled to feed
Tailings: ≤0.15 g/t residual Au

Free Quote

Product Parameters

Model	Jigging room		Diaphragm		Feed size (mm)	Water replenishment under the sieve (m³/t)	Make-up water pressure (Mpa)	Processing power (t/h)	power (Kw)	Dimensions (mm)	weight (Kg)
Model	shape	area (m²)	stroke (mm)	Rush (r/min)	Feed size (mm)	Water replenishment under the sieve (m³/t)	Make-up water pressure (Mpa)	Processing power (t/h)	power (Kw)	Dimensions (mm)	weight (Kg)
JT0.57-1	Trapezoid	0.57	8.5—12 10—17 12-21	80-180	<6	1-2	≥0.05	1.5-3	1.5	1550×780×1530	610
JT1-1	Trapezoid	1.04			<10	2-3		2.5-5	2.2	2270×1110×1890	900
JT2-2	rectangle	2.28			<10	2-4		5-10	3	3225×1550×2050	1640
JT3-1	Trapezoid	3	12-30	50-125	<10	3-6		7.5-15	5.5	2745×2000×3030	3085
JT4-2	rectangle	4	25-57		<25	4-8		8-20	7.5	4240×1990×2750	3098
JT4-2S	rectangle	4	25-57		<25	4-8		8-20	4×2	4240×1990×2750	3500
JT5-2	Trapezoid	4.86	12-30		<10	3-6		12-25	7.5	3600×2000×2600	4500

Contact Us

Do you need to know the product price? Model? Configuration plan? Output?
Please leave your correct information and we will reply to you within 24 hours.
