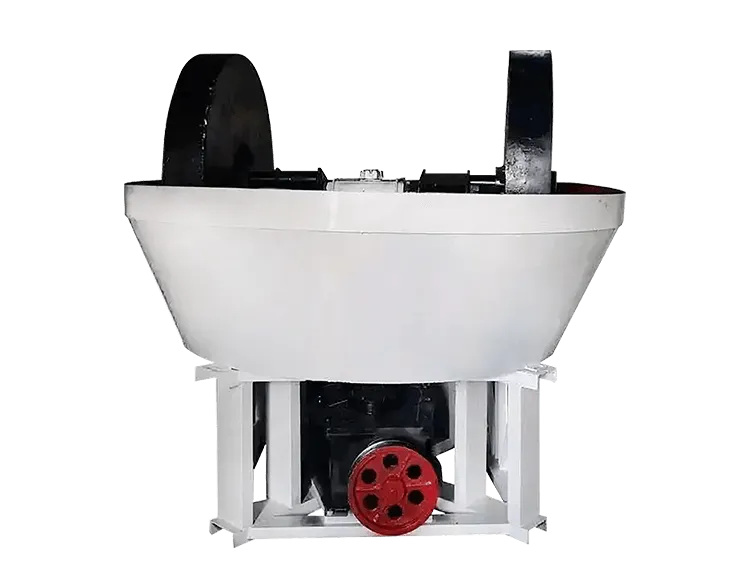

Gold Grinding Machine-ZOOMJO

Product Introduction

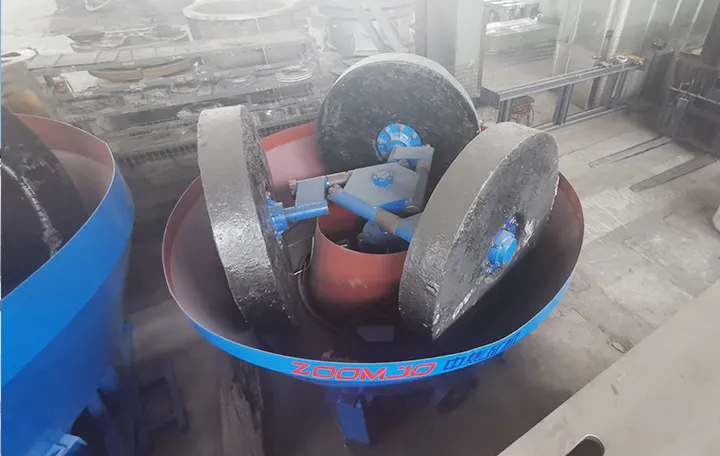

This gold grinding machine, also known as an electric mill, wet mill, or wheel mill, is a mechanical equipment used for the beneficiation of metal minerals such as gold, silver, lead, zinc, iron, and molybdenum. It can adapt to the type of ore suitable for ball mills, and improve the material forming rate and quality through processes such as stirring, rolling, and crushing. The processed ore has the characteristics of high density, good strength, and no pores.

Product Advantages

Efficient Recycling

By adopting wet grinding technology, the mercury recovery rate can reach over 95%, significantly improving the efficiency of gold extraction.

Wear resistant and durable

Energy conservation and environmental protection

Strong flexibility and adaptability

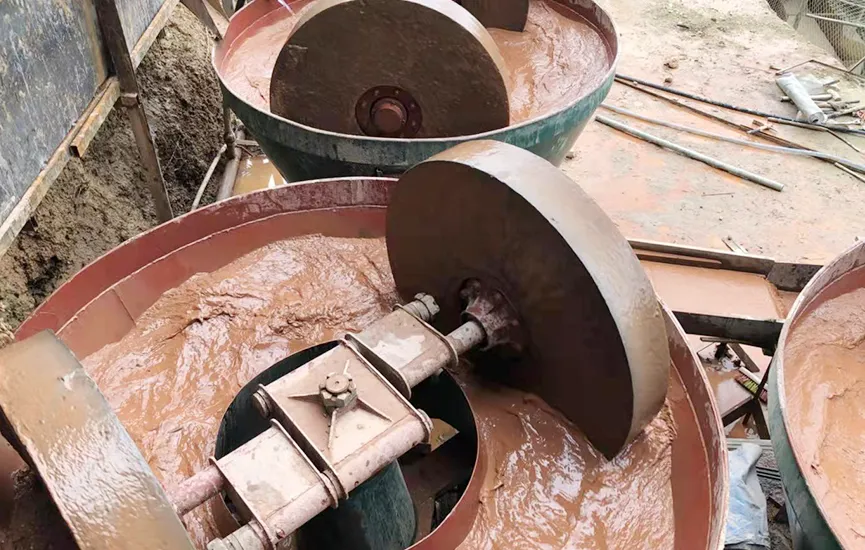

Gold grinding mill (wet pan mill) for sale in Sudan

Raw material: Gold-bearing quartz veins / oxidized ore
Model: GD1200A
Capacity:0.9–1.2 T/H (dry ore)
Feeding size:≤30 mm/li>
Finished products: 85–90% passing 0.074 mm (liberated gold slurry)
Gold concentrate (≥88% Au recovery)

Free Quote

Product Parameters

Model	Specification (mm)	Feeding Particle Size (mm)	Processing Capacity (t/h)	Rotation Speed (r/min)	Power (kw)	Weight (kg)
GD1600	1600×400×200×500	>30	4	20-22	30	14.5
GD1500A	1500×350×200×460	>30	3	20-22	22	13.3
GD1500B	1500×350×150×460	>30	2.5-3	20-22	22	13.3
GD1500C	1500×350×150×420	>30	2-2.5	20-22	22	12.3
GD1400	1400×250×150×350	>30	1.5-2	16-18	18.5	11.3
GD1300	1300×250×150×350	>30	1.5	21-23	15	8.5
GD1200A	1200×220×80×270	>30	0.9-1.2	16-18	7.5	7.5
GD1200B	1200×220×80×250	>30	0.8-0.1	21-23	7.5	5.5
GD1100	1100×220×80×250	>30	0.6-0.8	16-18	7.5	5.5
GD1000	1000×220×80×250	>30	0.5	21-23	7.5	5
GD900	900×150×60×200	>30	0.3	17-19	4.5	4.5

Contact Us

Do you need to know the product price? Model? Configuration plan? Output?
Please leave your correct information and we will reply to you within 24 hours.

Gold Grinding Machine
