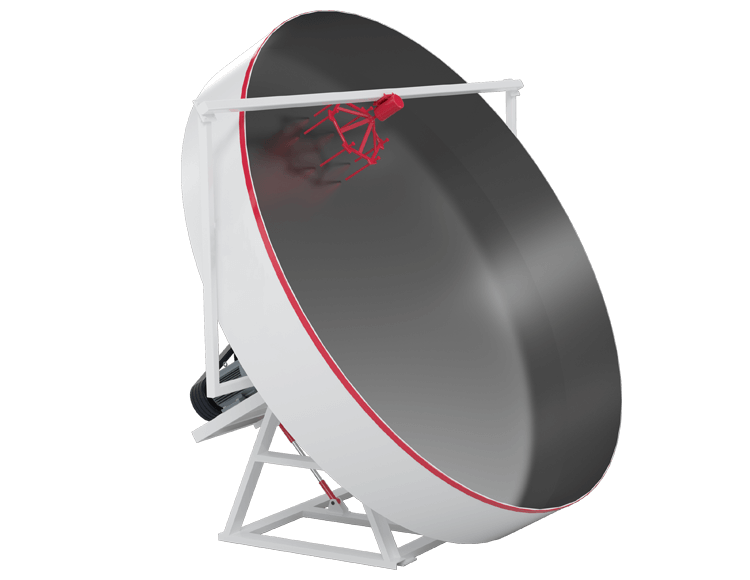

Disc Granulator-ZOOMJO

Product Introduction

The disc granulator is developed by Zhongjiao Mining Machinery based on the advanced technology of similar equipment at home and abroad. The disc granulator is lined with high-strength fiberglass reinforced plastic, featuring uniform granulation, high granulation rate, stable operation, sturdy and durable equipment, and long service life. It is an ideal granulation device.

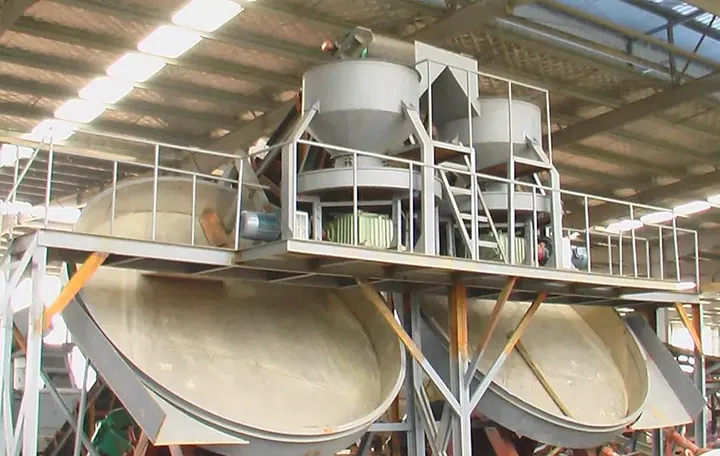

Product Advantages

High-efficiency ball-forming performance

By optimizing the inclination Angle of the disc body and the control of rotational speed, the pelletizing rate can reach over 95%, the roundness of the particles is excellent, and the compressive strength is increased by 30%.

Intelligent Control System

Convenient maintenance design

Disc granulator for sale in Saudi Arabia

Raw material:Ceramic sand raw mix (kaolin + bauxite)
Model: PQ-45
Capacity: 25–35 T/H (granule output)
Feeding size: ≤3 mm (80% passing)
Finished products: 3–5 mm (lightweight aggregates)
5–8 mm (structural fillers)
8–12 mm (insulation granules)

Free Quote

Product Parameters

Model	Disc Diameter (mm)	Disc Height (mm)	Inclination Angle (°)	Speed (r/min)	Main Motor Power (kw)	Scraper Motor Power (kw)	Weight (t)
PQ10	1000	250	35-55	2.5-25	3	1.1×1	0.6
PQ12	1200	250	35-55	2.5-25	4	1.1×1	0.8
PQ16	1600	300	35-55	2-19	7.5	1.5×1	1.4
PQ20	2000	320	35-55	1.5-15	7.5	2.2×1	2.2
PQ22	2200	350	35-55	1.4-14	15	2.2×1	3.8
PQ25	2500	350	45-55	1.2-12	15	2.2×1	5
PQ28	2800	400	45-55	1.2-12	18.5	2.2×1	5.8
PQ32	3200	400	45-55	1.2-12	22	3×1	8.5
PQ36	3600	550	45-55	1-10	30	3×2	9.8
PQ42	4200	550	45-55	1-10	37	4×2	12.5
PQ45	4500	550	45-55	1-9	45	4×2	13.5
PQ50	5000	650	43-53	6-9	55	5.5×2	18
PQ55	5500	650	43-53	5.7-8.5	75	5.5×2	30.2
PQ60	6000	650	43-53	5.7-8.5	90	5.5×2	32.8
PQ70	7000	650	43-53	5.1-7.9	132	5.5×3	45.9
PQ75	7500	650	43-53	5.1-7.9	160	5.5×3	50
