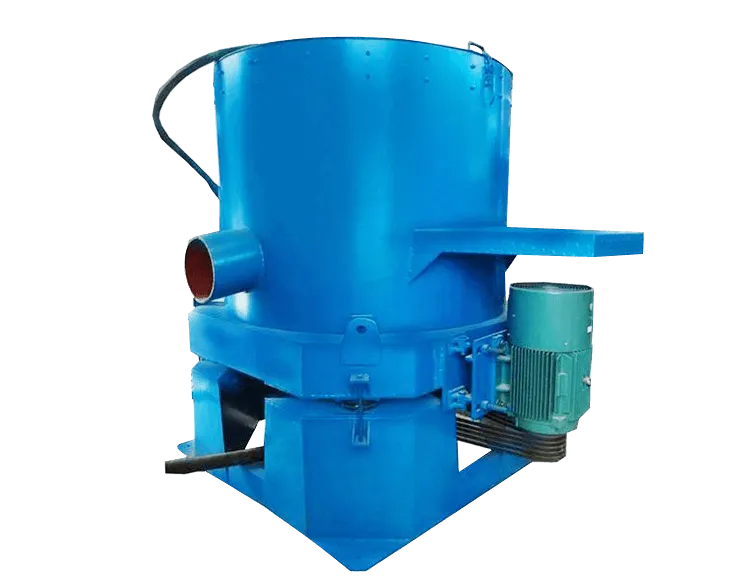

Centrifugal Gold Separating Machine-ZOOMJO

Product Introduction

Centrifugal gold beneficiation machine is a new type of gravity beneficiation equipment that utilizes the principle of centrifugation, specifically designed to recover useful minerals from fine mud. Its emergence effectively solves the drawbacks of traditional gravity equipment, such as poor and even difficult separation of mineral mud.

Product Advantages

High wealth ratio

The concentrate yield is only 0.02%~0.1%, and the grade has increased by 1000~3000 times

Energy conservation and environmental protection

Automated control

Wear resistant design

Centrifugal gold concentrator for sale in Australia

Raw material: Alluvial gold-bearing sand/gravel
Model: STLB60
Capacity: 5–8 T/H (dry feed)
Feeding size: ≤6 mm (optimal recovery range)
Finished products: Gold concentrate (≥92% Au recovery) Tailings (≤0.02 g/T residual Au)

Free Quote

Product Parameters

Model	Processing Capacity (T/h)	Backwash Water Consumption (m³/h)	Slurry Water Consumption (m³/h)	Feeding Concentration (%)	Feeding Particle Size (mm)	Concentrate Cleaning Cycle	Weight of Concentrate Discharged Each Time (Kg)	Power (Kw)	Weight (Kg)	Dimensions (mm)
STLB20	0-0.6	2-3	1.5-4	0-50	0-3	Every 1-3 hours for lode gold mines, every 2-6 hours for placer gold mines	2	0.75	205	914×700×900
STLB30	2-3	3-5	5-7	0-50	0-3	Every 1-3 hours for lode gold mines, every 2-6 hours for placer gold mines	3-5	1.5	380	1160×885×1165
STLB60	8-12	7-10	8-12	0-50	0-5	Every 1-3 hours for lode gold mines, every 2-6 hours for placer gold mines	10-20	4	1100	1820×1450×1700
STLB80	40-45	30-36	40-45	0-50	0-5	Every 1-3 hours for lode gold mines, every 2-6 hours for placer gold mines	40-50	11	2300	2476×2032×2018
STLB100	60-80	50-60	60-80	0-50	0-6	Every 1-3 hours for lode gold mines, every 2-6 hours for placer gold mines	70-80	18.5	3700	2849×2085×2426

Contact Us

Do you need to know the product price? Model? Configuration plan? Output?
Please leave your correct information and we will reply to you within 24 hours.

Centrifugal Gold Separating Machine
