K Series Medium And Fine Crushing Mobile Crushing Station

Discounts
Processing capacity:
 15-800t/h
Feed Particle Size:
 ≤600mm
Applicable materials:
 River pebbles, mountain stones (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, and artificial sand making from stone chips.
K Series Medium And Fine Crushing Mobile Crushing Station
60s
Manual response
30Min
Give technical reply
24h
Free customized solution
Hands-on guidance on factory construction
Special vehicle pick-up for factory visits
One-to-one after-sales service
Inspection of the production site nearby

Product Introduction

The K series medium and fine crushing and screening mobile station has 18 models, mainly used for secondary crushing and pure screening operations. With a vibrating screen whose installation angle can be adjusted, the whole machine has a larger processing capacity and better adaptability to users' production needs at different stages.


The equipment is superior to its peers
and the performance is unmatched


Product Advantages

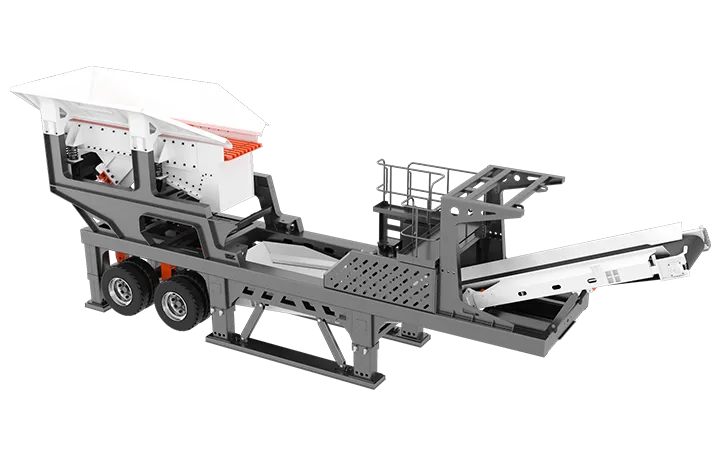

Rapid Deployment

The original shoe support device automatically retracts during transportation and only requires simple ground leveling to operate during work, eliminating the time and cost of traditional infrastructure.

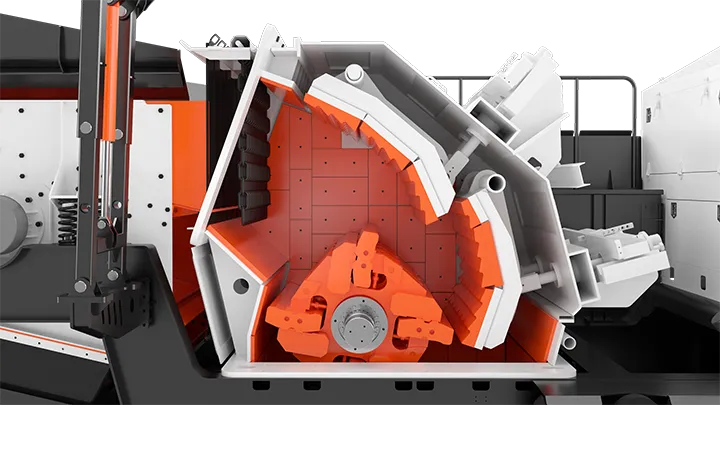

Effective and Reliable Medium and Fine Crushing Main Equipment

It has the advantages of large crushing ratio, strong processing capacity, stable and reliable performance, etc.

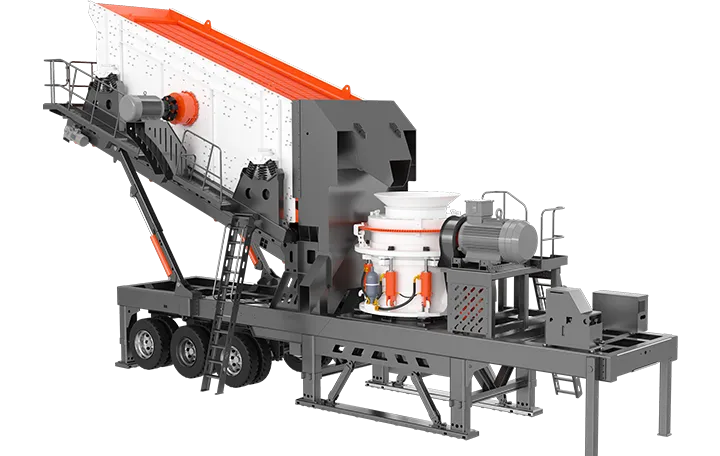

Increased Vibrating Screen Adjustment Function

The installation angle of the vibrating screen can be adjusted, making the whole machine's processing capacity more powerful.

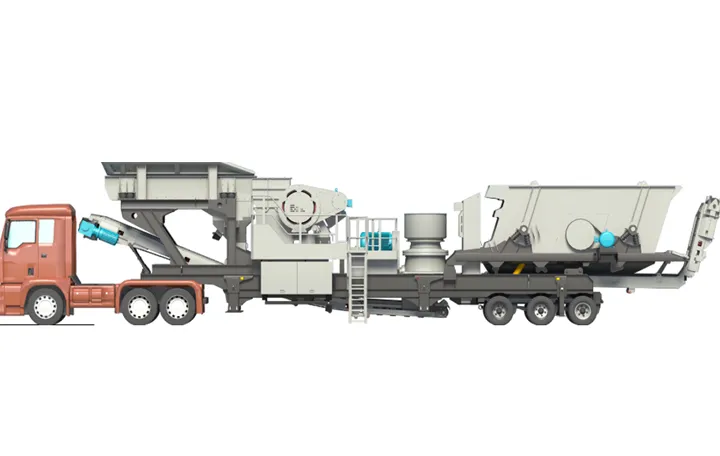

Flexible Configuration of Main Machines

Adaptable main machine equipment switching, and dozens of model products can be matched to meet customers' personalized needs.

Convenient Installation

Flexible parking function for quick entry into the working mode.

Product Parameters
Standard model
specifications
Matching
Equipment
Models
Model Feed particle size of
matching equipment
Processing
Capacity(t/h)
Transport
Dimension(mm)
KS-C75 3YZK1848 CS75 ≤160 59-163 12600×2800×4400
KS-C110 3YZK1860 CS110 ≤178 100-200 13800×3000×4400
KS-C160 3YZK2160 CS160 ≤188 132-253 13800×3000×4400
KS-C220 3YZK2160 CS220 ≤230 215-330 14500×3000×4500
KS-H420 3YZK1848 SH420 ≤240 85-170 12600×2900×4400
KS-H430 3YZK1860 SH430 ≤360 120-345 13800×3000×4500
KS-H440 3YZK2260 SH450 ≤450 255-605 14800×3200×4600
KS-HP100 3YZK1860 SHP100 ≤140 75-140 13800×2900×4300
KS-HP200 3YZK2160 SHP200 ≤185 145-250 14200×3000×4500
KS-HP300 3YZK2260 SHP300 ≤230 180-300 16500×3200×4600
KS-HP400 3YZK2260 SHP400 ≤230 220-380 16500×3200×4600
KS-PF1214 3YZK1860 PF1214 ≤300 100-200 14500×2900×4500
KS-PF1315 3YZK2260 PF1315 ≤350 130-280 15200×3000×4500
KS-PF1320 3YZK2260 PF1320 ≤500 180-400 15200×3000×4500
KS-S1860
3YZK1860 ≤400 65-586 10500×2700×4200
KS-S2160
3YZK2160 ≤400 81-720 10500×3000×4500
KS-S2460
3YZK2460 ≤400 100-810 10500×3200×4500
