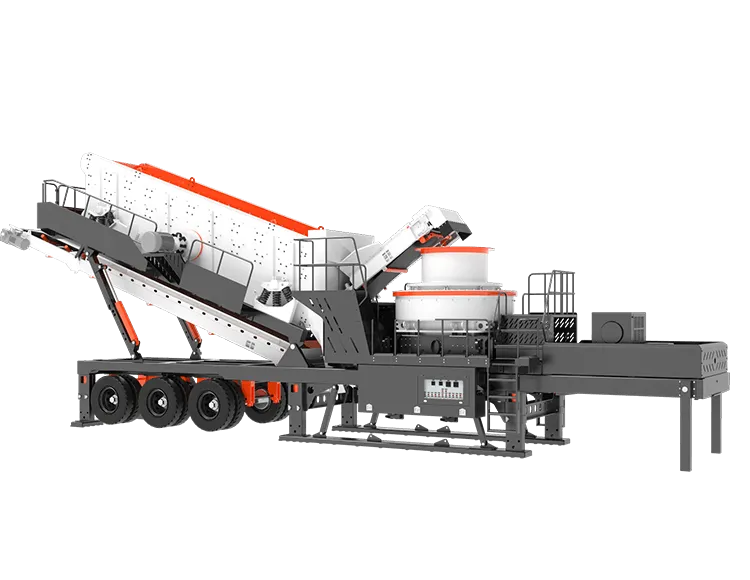

K Series Fine Crushing And Shaping Screening Mobile Station
Discounts
The K series fine crushing and shaping screening mobile station has 4 models, overcoming the problem of combining traditional mobile stations with artificial sand making equipment. It is equipped with an advanced VSI high-efficiency vertical shaft impact crusher. The crushed sand and gravel form a cube with uniform particle size, especially suitable for concrete sand.


The product is cubic, with good particle size and extremely low flake content.




| Standard Model Specifications |
Matching Equipment Models |
Model | Feed Particle Size of Matching Equipment | Processing Capacity(t/h) | Transport Dimension(mm) |
|---|---|---|---|---|---|
| KS-VSI7611 | 3YZK1548 | VSISI7611 | 35 | 120-180 | 12500x2600×4300 |
| KS-VSI8518 | 3YZK1848 | VSIS18518 | 40 | 200-260 | 14200x3000×4500 |
| KS-VSI9526 | 3YZK1860 | VSISI9526 | 45 | 300-380 | 14500×3000×4500 |
| KS-VSI1140 | 3YZK2160 | 5X1140 | 50 | 450-520 | 15500x3100×4500 |
| KS-VSI5X7615 | 3YZK1548 | 5X7615 | 35 | 150-280 | 12500×2600×4300 |
| KS-VSI5X8522 | 3YZK1848 | 5X8522 | 40 | 240-380 | 14200×3000×4500 |
| KS-VSI5X9532 | 3YZK1860 | 5X9532 | 45 | 350-540 | 14500×3000×4500 |
| KS-VSI5X1145 | 3YZK2160 | 5X1145 | 50 | 500-640 | 15500×3100×4500 |
| KS-VSI5X1150 | 3YZK2260 | 5X1150 | 50 | 550-750 | 15800×3200×4500 |
Do you need to know the product price? Model? Configuration plan? Output?
Please leave your correct information and we will reply to you within 24 hours.
