Four-Combination Mobile Crushing Station

Discounts
Production Capacity:
 15-163t/h
Feed Particle Size:
 ≤425mm
Applicable Materials:
 River pebbles, limestone, granite, diabase, basalt, andesite, construction waste, etc.
Four-Combination Mobile Crushing Station
60s
Manual response
30Min
Give technical reply
24h
Free customized solution
Hands-on guidance on factory construction
Special vehicle pick-up for factory visits
One-to-one after-sales service
Inspection of the production site nearby

Product Introduction

The four-combination mobile station is independently combined according to the needs of coarse crushing, medium crushing, fine crushing, and finished products, which is economical and applicable. It is suitable for small and medium yields and diversified integrated automatic coarse and fine secondary crushing, self-contained with conveying and screening. According to the customer's feed particle size and discharge particle size requirements, the jaw crusher is used as the primary crushing, and the secondary crushing is equipped with 8 models of cone crushers and impact crushers for selection to meet the needs of different customer groups.


The equipment is superior to its peers
and the performance is unmatched


Product Advantages

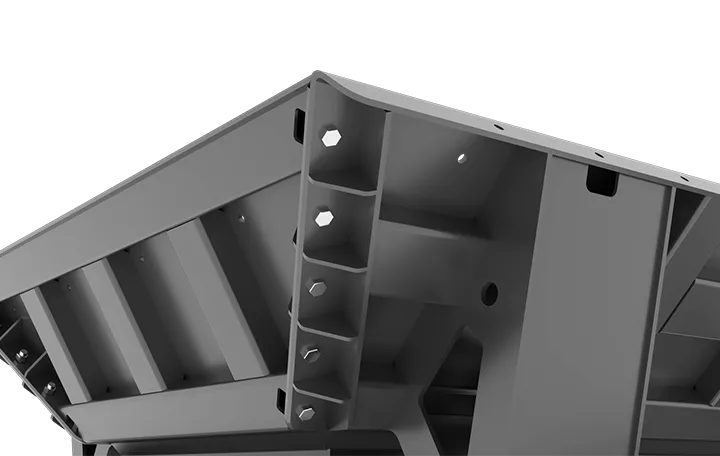

The detachable silo design is convenient for transportation and installation

The silo is connected with assembly bolts and can be easily dismantled during transportation, which is more conducive to sea transportation and transportation on complex roads

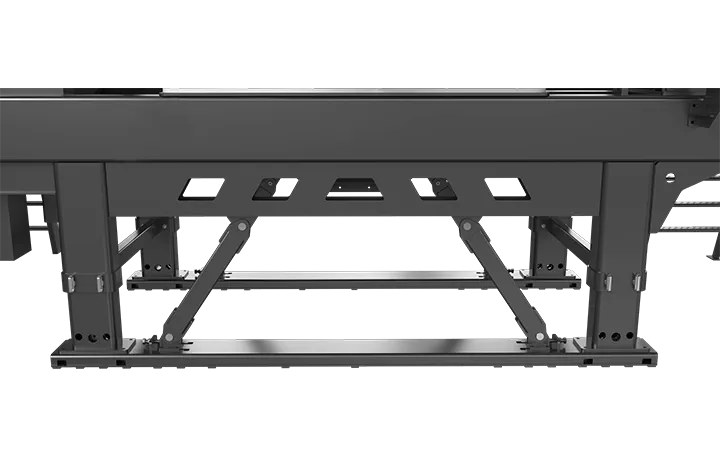

Shoe design, no infrastructure required

After entering the work area, the work can be started simply by leveling the ground, saving a lot of infrastructure construction time and allowing for rapid transfer.

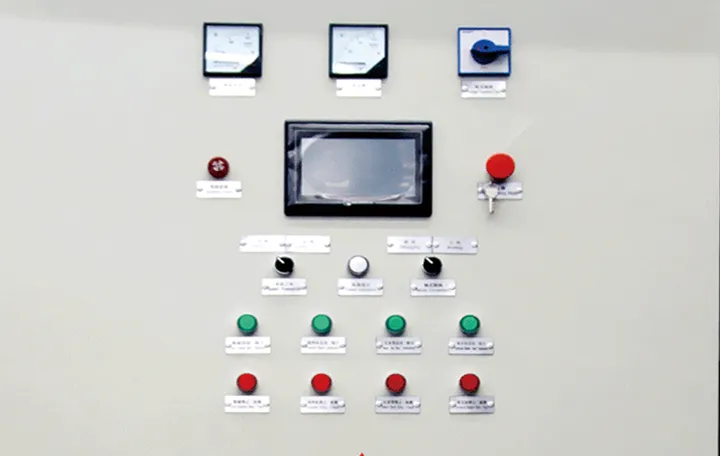

IP65 electrical components, more resistant to dust and water

The IP65 electrical components used not only completely prevent dust from entering, but also prevent water stains from entering the electrical components, greatly enhancing the mobile station's ability to adapt to the environment.

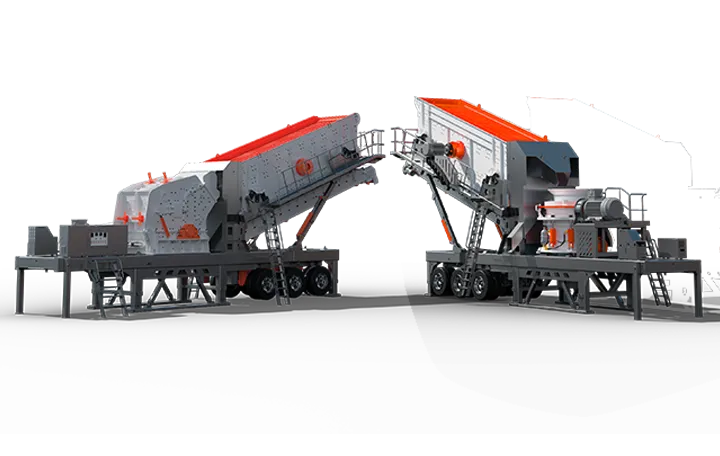

More models and wider applications

It has 72 models in 7 series, fully covering the production needs of the mining industry.

Product Parameters
Standard Model Corollary Equipment Model Feeding Size(mm) Capacity (t/h) Transport Dimension(mm)
K-E46-PF1007 3YZK1545
GZD650×2300
PE400×600
PF1007
≤350 30-50 12500×2300×4500
K-E57-PF1010 3YZK1545
ZSW850×3000
PE500×750
PF1010
≤425 50-100 13000×2300×4500
K-E69-PF1214 3YZK1848
ZSW9638
PE600×900
PF1214
≤500 100-180 15800×2550×4500
K-E57-CS75 3YZK1545
ZSW850×3000
PE500x750
CS75
≤425 50-100 13000×2300×4500
K-E69-CS110 3YZK1848
ZSW9638
PE600x900
CS110
≤500 100-180 15800×2550×4500
K-E57-SH420 3YZK1545
ZSW850×3000
PE500x750
SH420
≤425 50-100 13000×2300×4500
K-E69-SH430 3YZK1848
ZSW9638
PE600x900
SH430
≤500 100-180 15800×2550×4500
K-E57-HP100 3YZK1545
ZSW850×3000
PE500x750
HP100
≤425 50-100 13000×2300×4500
K-E69-HP200 3YZK1848
ZSW9638
PE600x900
HP200
≤500 100-180 15800×2550×4500
K-E69-HP300 3YZK1545
ZSW850×3000
PE600x900
HP300
≤425 50-100 15800×2300×4500
