ZJY Series Mobile Concrete Batching Plant-ZOOMJO

Product Introduction

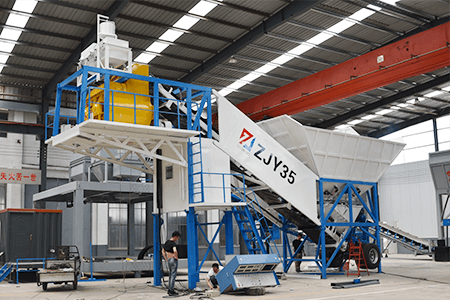

The Mobile Concrete Batching Plant is a highly integrated concrete production solution specifically designed for rapid relocation and flexible construction operations. Featuring a modular structure, it enables quick disassembly and transportation to various job sites. This plant is ideally suited for highway construction, rural infrastructure projects, small-scale commercial concrete stations, temporary site installations, and similar applications.

Product Advantages

Rapid Deployment

Installation takes only 1–3 days with no complex foundation preparation required.

Flexible Mobility

Modular design allows the entire unit to be towed as a trailer, significantly reducing relocation costs.

Compact Footprint

Space-saving design ideal for narrow or temporary construction sites.

Intelligent Control

Fully automated PLC system with precise batching and one-touch operation.

Mobile concrete batching plant for sale in UAE

Raw material: Cement / Aggregates / Sand / Water / Admixtures
Model: ZJY75
Capacity: 75 m³/h
Feed material specification: Max aggregate size 80/100 mm, Aggregate bin capacity 2×10 m³, Skip hoist feeding
Output quality:Fresh concrete slump 120±30 mm, Compressive strength C25～C50 (Customizable). Weighing accuracy: Aggregate ±2%, Cement/Water/Additive ±1%. Rapid deployment within 1-3 days.

Free Quote

Product Parameters

Model	ZJY25	ZJY35	ZJY50	ZJY60	ZJY75	ZJY90	ZJY120
Mixer Capacity	0.5 m³	0.75 m³	1 m³	1 m³	1.5 m³	1.5 m³	2 m³
Output	25 m³/h	35 m³/h	50 m³/h	60 m³/h	75 m³/h	90 m³/h	120 m³/h
Aggregate Bin Capacity	2×6 m³	2×8 m³	2×8 m³	2×10 m³	2×10 m³	2×12 m³	2×12 m³
Discharge Height	3.8 m	3.8 m	3.8 m	3.8 m	3.8 m	3.8 m	3.8 m
Control Method	Automatic Control
Aggregate Weighing Accuracy	±2%	±2%	±2%	±2%	±2%	±2%	±2%
Cement Weighing Accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Water Weighing Accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Additive Weighing Accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Max Aggregate Size	80/100 mm	80/100 mm	80/100 mm	80/100 mm	80/100 mm	80/100 mm	80/100 mm
Max Towing Speed	8 kW/t	8 kW/t	8 kW/t	8 kW/t	8 kW/t	8 kW/t	8 kW/t
Power	≤60.8 kW	≤72.3 kW	≤92 kW	≤92 kW	≤102 kW	≤102 kW	≤160 kW
Weight	14.666 ton	22 ton	26 ton	26 ton	29 ton	33 ton	38 ton
