Product Introduction

Wind swept coal mill is the main equipment for rotary kiln cement clinker production, but also applicable to thermal power generation, metallurgical industry, chemical industry, sugar industry and other powder making equipment system.

Product Advantages

High-efficiency production capacity

The wind-swept coal mill has the characteristics of large processing capacity, and the unit capacity is increased by 30% to meet the needs of large-scale production.

Precise fineness adjustment

Compact and stable structure

Wide Material Adaptation

Maintenance-friendly design

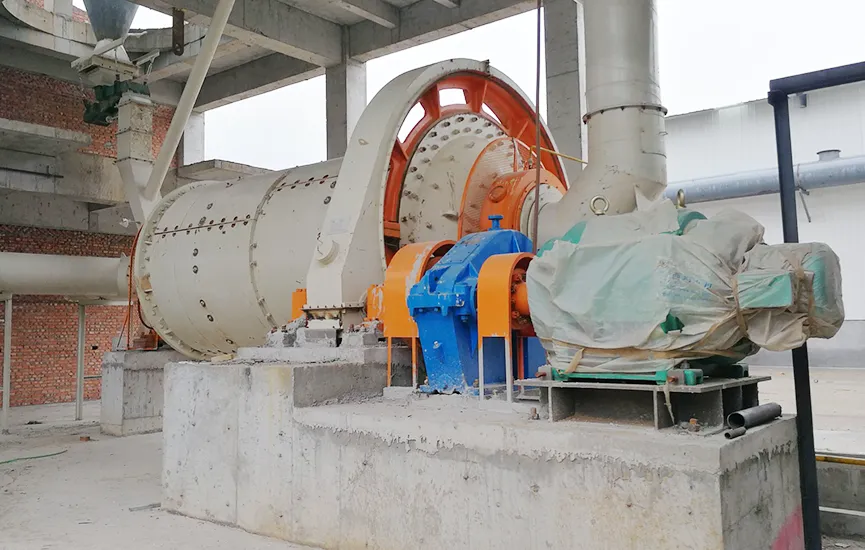

Air-swept coal mill for sale in Saudi Arabia

Raw material: Coal
Model: Φ3.8×7+2.5
Capacity: 40 T/H
Feeding size: ≤50 mm
Finished products:Fineness ≤12% R90μm

Free Quote

Product Parameters

Product Specification	Φ1.7×2.5	Φ2.2×4.4	Φ2.4×4.75	Φ2.4×4.5+2	Φ2.6×5.25+2.25	Φ2.8×5+3	Φ3.0×6.5+2.5	Φ3.2×6.75+2	Φ3.4×6+3	Φ3.8×7+2.5
Speed(r/min)	24.5	22.4	20.4	20.4	19.7	18.3	18.3	16.9	17.5	16.4
Capacity(t/h	3-5	8-9	12-14	11-12	13-14	16-17	19-20	25-30	28-30	38-40
Feeding Size(mm	＜25	＜25	＜25	＜25	＜25	＜25	＜25	＜25	＜25	＜25
Grinding Media Loading(t	7.5	20	22	22.5	28	32	43	50	55	80
Main Gear Reduce	ZD40	ZD60	ZD60	ZD60	ZD70 MBY450	ZD70 MBY500	ZD80 MBY560	JDX560	JDX710	MBY800
Main motor(kw)	95	250	280	315	400	500	630	710	800	1250
Total weight (t)	29	46	54	76	98	107	124	148	162	215
