Single Drum Cooler-ZOOMJO

Product Introduction

The single-drum cooler is one of the important equipment in the rotary kiln system. It drives the clinker (1000-1200℃) coming out of the rotary kiln to fully exchange heat with the air through the rotation of the drum, so that the material is cooled to (below 200℃), while improving the quality and grindability of the clinker. It has the characteristics of simple structure, high operation rate, and easy operation and maintenance.

The equipment is superior to its peers
and the performance is unmatched

Product Advantages

High-efficiency heat circulation system

All the air after cooling the material is recycled into the kiln as secondary air, increasing the thermal efficiency by more than 25%.

High-quality clinker output

Rapid cooling technology

Stable operation guarantee

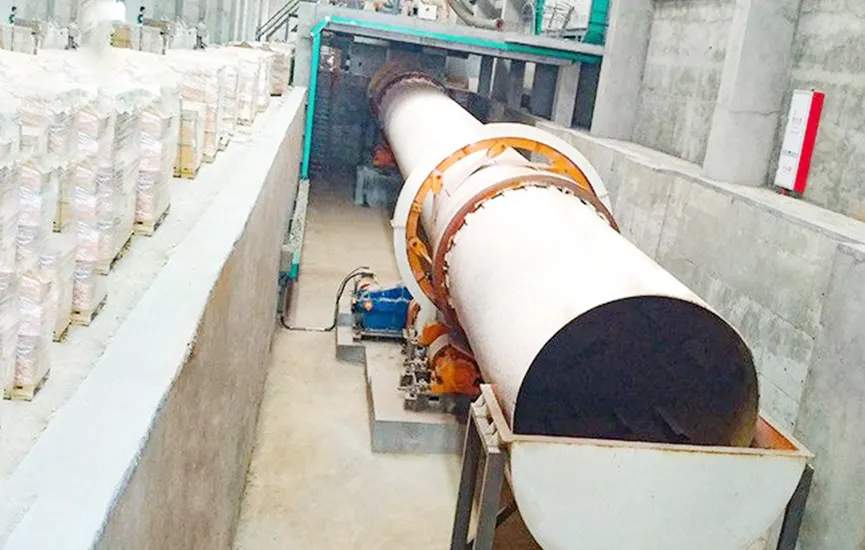

Single Drum Cooler for sale in Indonesia

Raw material: Molten Nickel-Iron Alloy
Model: 4.0×36m
Capacity: 500 TPD (tons per day)
Feed temperature: ≤1,300°C
Discharge temperature: ≤100°C
Finished products:Solidified alloy lumps (10–30 mm, 30–50 mm, 50–80 mm, 80–150 mm)

Free Quote

Product Parameters

Specifications (m) (diameter x length)	Capacity (t/h)	Installation slope (%)	MainGear reducer	Main motor(kw)	Total weight (t)
Φ1.5×15	2-3	3-5	ZQ500	15	28
Φ1.5×20	3-4	3-5	ZQ500	15	35
Φ1.8×18	4-6	3-5	ZQ500	18.5	47
Φ2.0×22	7-8.5	3-5	ZQ500	22	61
Φ2.2×18	7-8.5	3-5	ZQ500	22	64
Φ2.2×22	8-10	3-5	ZQ650	30	73
Φ2.4×24	12-15	3-5	ZS125	45	98
Φ2.5×25	15-20	3-5	ZS125	55	110
Φ2.8×28	16-22	3-5	ZL100	55	130
Φ3.0×30	20-25	3-5	ZL115	75	169
Φ3.2×36	28-32	3-5	ZL115	90	200
Φ3.3×40	32-36	3-5	ZL130	132	237
Φ3.6×36	35-38	3-5	ZSY450-28	185	318
Φ4.0×36	50-60	3-5	ZSY450-25	220	348
Φ4.0×45	60-70	3-5	ZSY450-25	250	414
Φ4.5×50	70-75	3-5	ZSY500-25	315	576
