Product Introduction

Rotary kiln refers to a rotary calcining kiln (commonly known as a rotary kiln), which is a cement building material equipment. Rotary kilns can be divided into cement kilns, metallurgical chemical kilns and lime kilns according to the different materials they process. Zhongjiao Mining Series Rotary Kilns can be divided into: ceramsite rotary kiln, metallurgical rotary kiln, chemical rotary kiln, lime rotary kiln, active lime rotary kiln, etc. according to production purposes.

The equipment is superior to its peers
and the performance is unmatched

Product Advantages

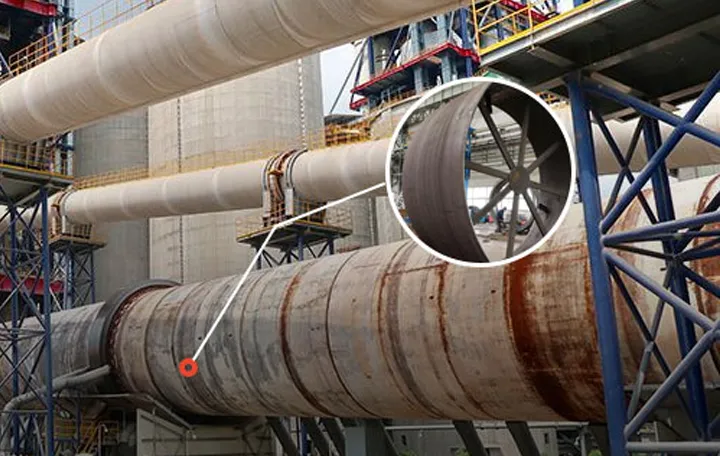

Intelligent axial control

The high-quality calm steel plate cylinder is matched with a hydraulic stopper system to achieve ±10mm precise movement control and ensure the stability of equipment operation.

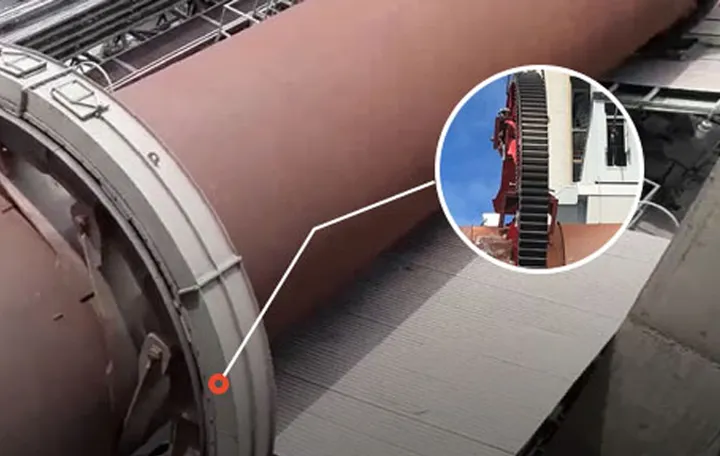

Stepless speed regulation system

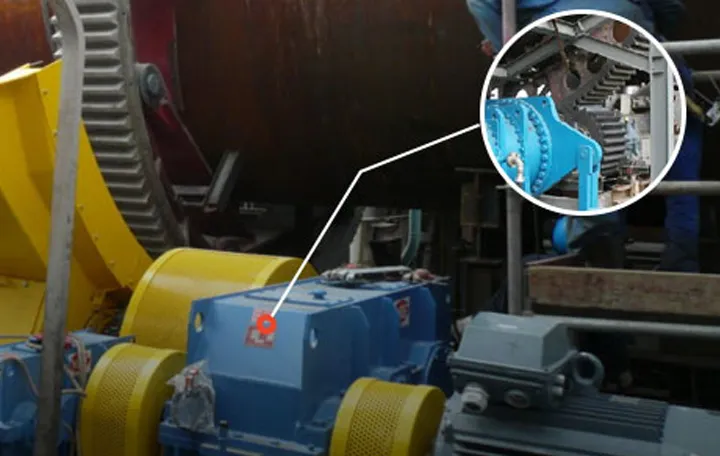

Drive device

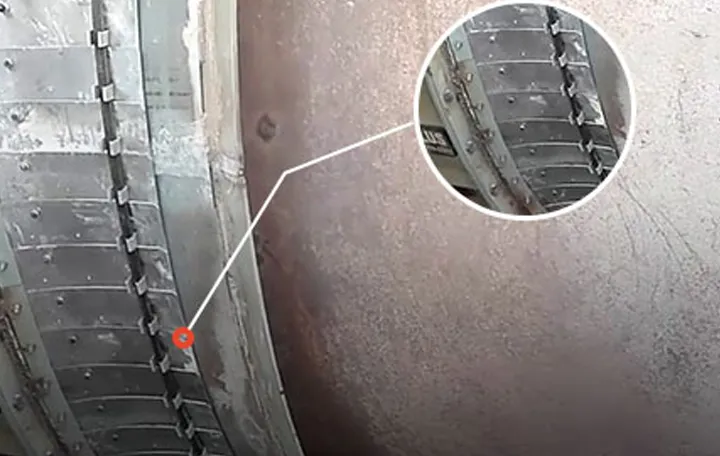

Double sealing guarantee

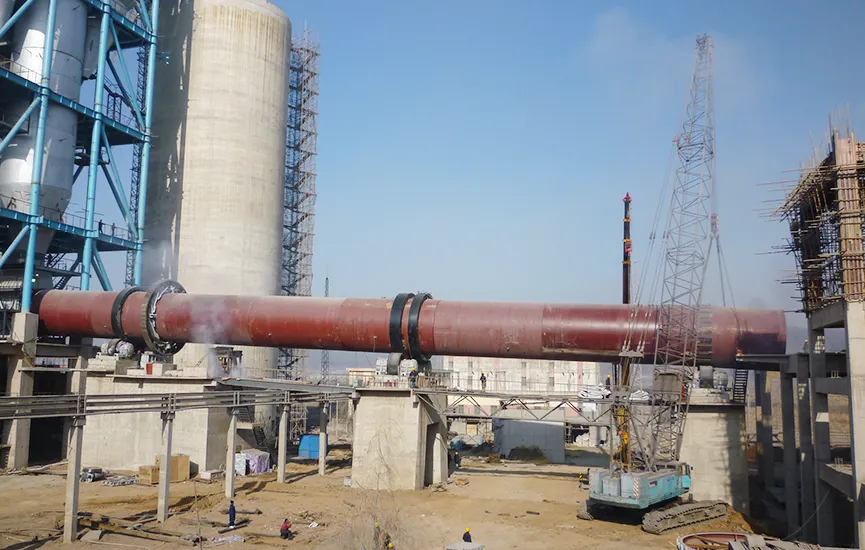

Rotary kiln for sale in Saudi Arabia

Raw material: Limestone/Clay mix
Model: Φ4.8×74m
Capacity: 5,000 TPD (tons per day)
Feed material specification:Raw meal powder ≤200 μm
Output quality: Cement clinker with free lime ≤2.0%

Free Quote

Product Parameters

Product Specification	Motor Power (kw)	Total Weight (t)	Note	Kiln Dimensions
Product Specification	Motor Power (kw)	Total Weight (t)	Note	Diameter (m)	Length (m)	Obliquity (%)	Capacity (t/d)	Rotation Speed (r/min)
φ2.5×40	2.5	40	3.5	180	0.44-4.5	55	149.61
φ2.5×50	2.5	50	3	200	0.62-4.5	55	187.37
φ2.5×54	2.5	54	3.5	280	0.48-4.5	55	196.29	Outside Disassemble Kiln
φ2.7×42	2.7	42	3.5	320	0.10-4.5	55	198.5
φ2.8×44	2.8	44	3.5	450	0.437-4.5	55	201.58	Outside Disassemble Kiln
φ3.0×45	3	45	3.5	500	0.5-4.5	75	201.94
φ3.0×48	3	48	3.5	700	0.6-4.5	100	237	Outside Disassemble Kiln
φ3.0×60	3	60	3.5	800	0.3-4.5	100	310
φ3.2×50	3.2	50	4	1000	0.6-4.5	125	278	Outside Disassemble Kiln
φ3.3×52	3.3	52	3.5	1300	0.266-4.5	125	283	Kiln with Preheater and Precalcine
φ3.5×54	3.5	54	3.5	1500	0.55-4.5	220	363
φ3.6×70	3.6	70	3.5	1800	0.25-4.5	125	419
φ4.0×56	4	56	4	2300	0.41-4.5	315	456
φ4.0×60	4	60	3.5	2500	0.396-4.5	315	510
φ4.2×60	4.2	60	4	2750	0.41-4.5	375	633
φ4.3×60	4.3	60	3.5	3200	0.396-4.5	375	583
φ4.5×66	4.5	66	3.5	4000	0.41-4.5	560	710.4
φ4.7×74	4.7	74	4	4500	0.35-4.5	630	849
φ4.8×74	4.8	74	4	5000	0.396-4.5	630	899
φ5.0×74	5	74	4	6000	0.35-4.5	710	944
φ5.6×87	5.6	87	4	8000	Max4.5	800	1265
φ6.0×95	6	95	4	10000	Max5	950×2	1659
