Raw Material Mill-ZOOMJO

Product Introduction

Raw material mill is the key equipment for re-crushing materials batched by crusher. It is an indispensable grinding equipment in cement production process. Raw material mill can be widely used in cement, silicate products, new building materials, refractory materials, glass and ceramic production industries. It can grind various ores and other grindable materials.

The equipment is superior to its peers
and the performance is unmatched

Product Advantages

High-efficiency grading design

The new grading liner and step liner are combined to increase the grinding area by 30% and significantly improve the grading accuracy.

Convenient maintenance structure

Wear-resistant and long life

Fine grinding technology

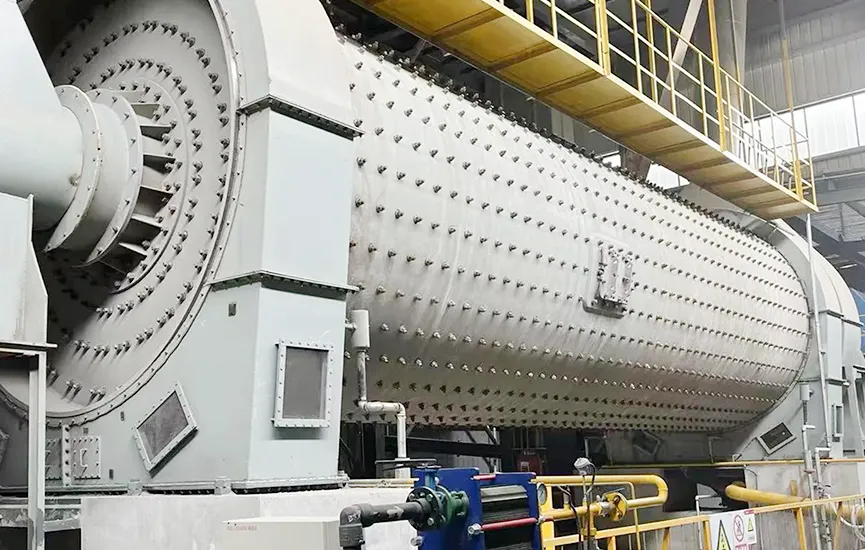

Raw Mill for sale in Russia

Raw material: Limestone, Clay, Iron Ore
Model: Φ4.6×10.5+3.5
Capacity: 200 T/H

Free Quote

Product Parameters

Product Specifications(m)	Mill form	Transmission Form	Gear Reducer		Motor Power(kw)	Capacity(t/h)	Total Weight(t)
Product Specifications(m)	Mill form	Transmission Form	Model	Speed Reduction Ratio	Motor Power(kw)	Capacity(t/h)	Total Weight(t)
φ1.5×5.7	open-circuit	Edge drive	ZD40	3.55	130	4.5-6	25.8
φ1.8×6.4	open-circuit	Edge drive	ZD60	4.5	210	7.5-15	43
φ2.2×6.5	close-circuit	Edge drive	ZD70	5	380	14-26	60
φ2.4×7	close-circuit	Edge drive	ZD70	5	475	24-28	81
φ2.4×10	close-circuit	Edge drive	ZD80-4-LL	6.44	570	32-36	118
φ2.6×10	close-circuit	Edge drive	JDX710	6.3	800	45-50	130
φ3×9	open-circuit	Edge drive	JDX800	6.3	1000	55-60	158
φ3.2×9	close-circuit	Edge drive	MBY900	7.1	1250	62-65	195
φ3.5×10	open-circuit	Edge drive	JDX900	5.84	1250	70-75	200
φ3.8×7.5	close-circuit	Edge driv	JDX900	5.6	1600	80	233
φ4.6×10+3.5	close-circuit	Center drive	JQS3550	15.1	3550	190	415
φ4.6×10.5+3.5	close-circuit	Center drive	JQS3550	15.1	3550	210	476
