Pulse Dust Collector-ZOOMJO

Product Introduction

Air box pulse bag type dust collector is widely used in building materials, cement, metallurgy, machinery, chemical industry and refractory material industry, especially suitable for dust collection system (or dedusting system) in cement plant such as crushing, packing, top of storehouse, clinker cooler and all kinds of mills and so on, which has strong applicability.

Product Advantages

High-efficiency dust removal technology

The pulse offline dust cleaning technology is adopted, and the dust removal efficiency reaches 99.99%, which eliminates the secondary adsorption of dust and is particularly suitable for high-concentration flue gas treatment.

Anti-condensation design

Intelligent temperature control system

Fully automatic control

Optimized structural design

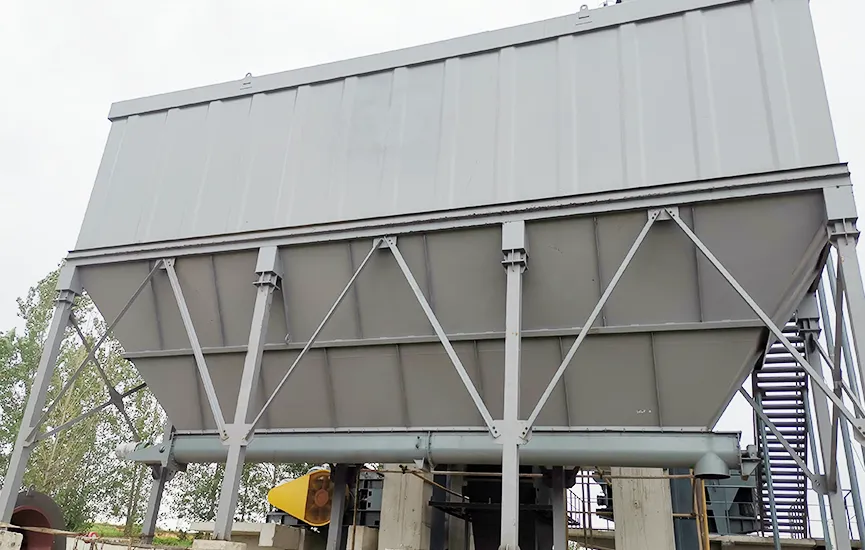

Pulse-jet dust collector for sale in Cameroon

Raw material: Clinker production dust
Model: PPCS96-7
Capacity: 46800m³/min (air volume)
Finished products:Clean gas emission: ≤15 mg/Nm³
Collected clinker fines: 15–20 T/H (recycled to kiln)

Free Quote

Product Parameters

Model	Processing air volume (m³/h)	Filtering air velocity (m/min)	Total filtration area (m²)	Net filtration area (m²)
PPCS 32-3	6900	1.2-2.0	93	62
PPCS 32-4	8930		124	93
PPCS 32-5	11160		155	124
PPCS 32-6	13390		186	155
PPCS 64-4	17300		248	186
PPCS 64-5	22300		310	248
PPCS 64-6	26700		372	310
PPCS 64-7	31200		434	372
PPCS 64-8	35700		496	434
PPCS 96-4	26800		372	279
PPCS 96-5	33400		465	372
PPCS 96-6	40100		557	465
PPCS 96-7	46800		650	557
PPCS 96-8	53510		744	650
PPCS 96-9	60100		838	744
PPCS96-2X5	66900		929	936
PPCS96-2X6	80700		1121	1028
PPCS96-2X7	94100		1308	1215
PPCS96-2X8	107600		1494	1401
PPCS96-2X9	121000		1681	1588
PPCS96-2X10	134500		1868	1775
