Product Introduction

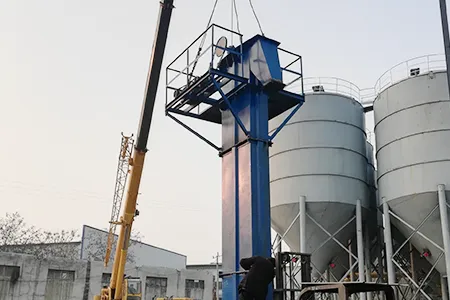

Bucket elevator is a continuous conveying machine that uses a series of buckets evenly fixed on an endless traction member to lift materials vertically. Bucket elevator uses a series of buckets fixed on a traction chain or belt to transport upward in a vertical or nearly vertical direction. It is divided into three types: ring chain, plate chain and belt.

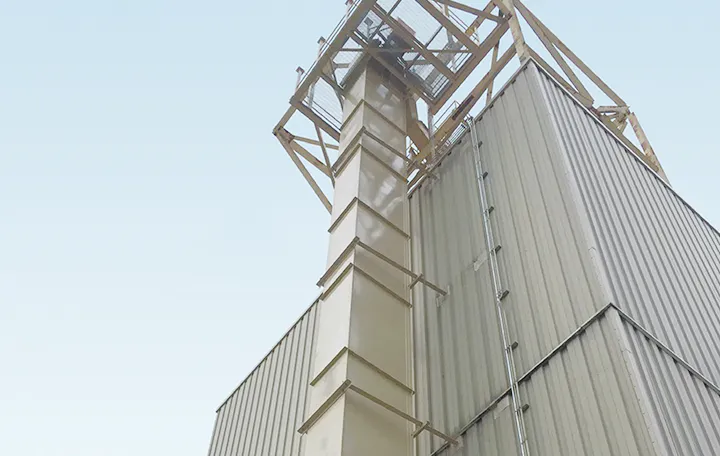

Product Advantages

High efficiency and energy saving

Inflow feeding + gravity unloading, reducing material return and reducing energy consumption by 30%

Long life design

Sealed and dustproof

Intelligent monitoring

Modular maintenance

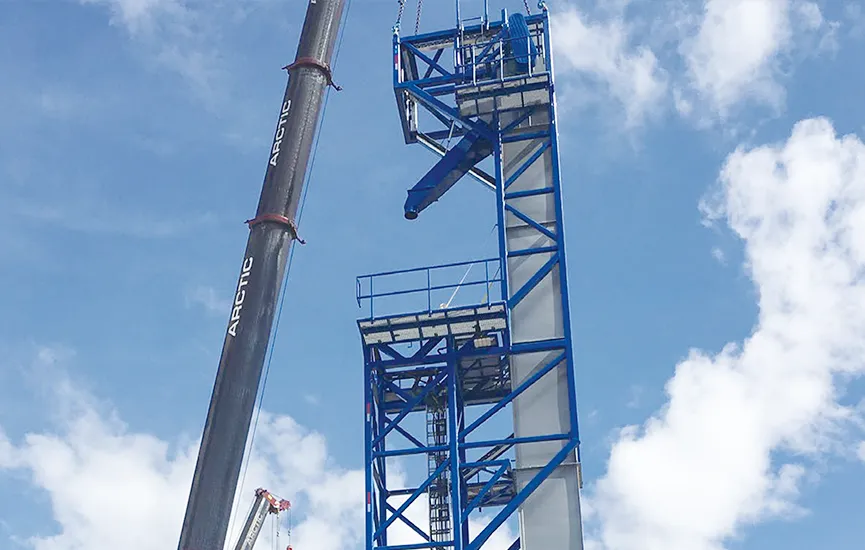

Bucket Elevator for sale in India

Raw material: Cement Clinker
Model: NE400
Capacity: 250 T/H
Feeding size: ≤80 mm
Discharge Height: 42 m

Free Quote

Product Parameters

Technical parameters of chain belt hoist

Specification	Maximum lifting height(m)	Conveying capacity(m³/h)	Maximum material block(mm)	Bucket distance(mm)	Motor power(kw)
TH160	25	7-12	15-20	400	3-4
TH200	28	8-15	20-30	500	3-5.5
TH250	30	10-25	25-35	500	4-7.5
TH300	30	25-35	30-40	500	5.5-11
TH315	40	30-40	35-45	512	5.5-15
TH400	40	45-60	40-55	512	11-22
TH500	40	65-80	50-60	512	15-30
TH630	40	100-120	60-65	688	18.5-37
TH800	40	130-150	65-75	920	22-45

Technical parameters of Wire belt hoist

Specification	Maximum lifting height(m)	Conveying capacity(m³/h)	Maximum material block (mm)	Bucket Volume (L)	Motor power (kw)
TDG160	80	34	0-20	2.6	2.2-11
TDG200	80	45	0-25	4.1	3-15
TDG250	80	71	0-30	6.5	5.5-22
TDG315	80	101	0-35	10	7.5-30
TDG400	80	158	0-40	16	15-45
TDG500	80	218	0-45	25	18.5-55
TDG630	80	345	0-50	40	30-90
TDG800	80	491	0-50	61	45-132

Technical parameters of Plate chain hoist

Specification	Maximum lifting height (m)	Maximum lifting capacity (m³/h)	Allowable percentage (%)					Pitch (mm)	Motor power (kw)
			10	25	50	75	100
			Maximum material block (mm)
NE15	40	16	65	50	40	30	25	101.66	1.5-4
NE30	59	31	90	75	58	47	40	152.4	2.2-7.5
NE50	62	60	90	75	58	47	40	152.4	3-15
NE100	58	110	130	105	80	65	55	200	7.5-30
NE150	65	170	130	105	80	65	55	200	11-37
NE200	73	220	170	135	100	85	70	250	18.5-75
NE300	61	320	170	135	100	85	70	250	22-75
NE400	47	420	205	165	125	105	90	300	45-90
NE500	58	500	240	190	145	120	100	300	45-132
