Deep Cavity Jaw Crusher and European Jaw Crusher: Comprehensive Analysis of Performance Characteristics

Among mining crushing equipment, jaw crushers are key components of primary crushing, and their performance directly impacts the efficiency and cost of the entire production line. Today, we'll focus on two common types of jaw crushers: the medium-column deep-cavity jaw crusher and the European-style jaw crusher, analyzing their performance characteristics from multiple perspectives, including structure, materials, and energy efficiency and environmental protection.

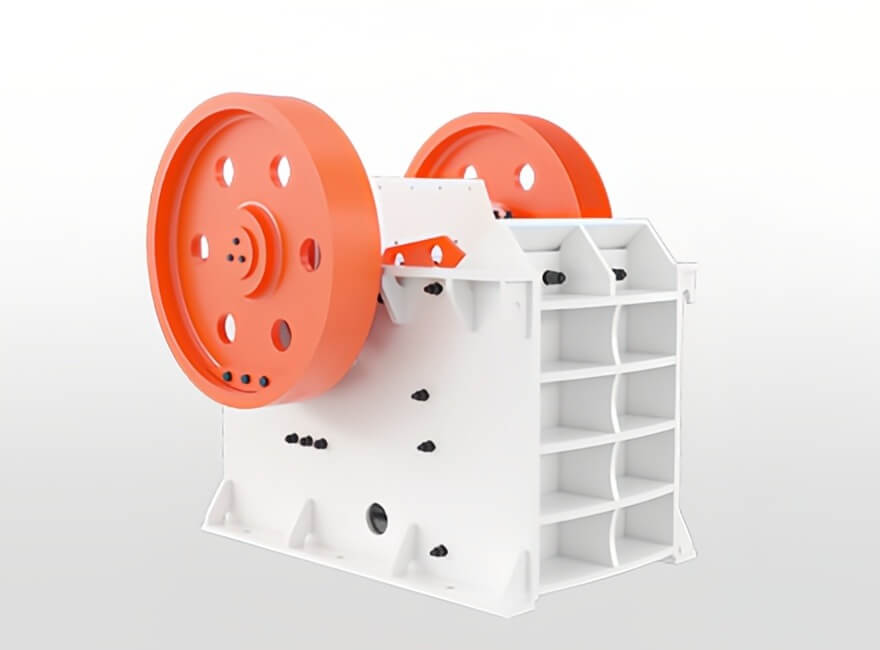

Excellent performance of deep cavity jaw crusher

1. Strong structure and obvious advantage of deep cavity

The deep-cavity jaw crusher utilizes a heavy-duty eccentric shaft and high-quality heavy-duty bearings, ensuring the movable jaw assembly possesses excellent impact resistance. A heavy-duty guard plate is installed on the top of the machine to withstand the strong impact of materials. For example, the PE750×1060 model has a fixed jaw plate length of 195 cm and a cavity depth 30 cm greater than similar products, significantly improving crushing capacity and equipment life.

2. Eccentric shaft material and advanced technology

• Material: Made of high-strength forged steel 40Cr, it has higher surface hardness and stronger wear resistance than ordinary 45# round steel.

• Process: Covering complete processes such as high-temperature forging, rough machining, fine machining, heat treatment and grinding to ensure the strength and precision of the shaft.

• Optimized structure: The eccentric shaft is about 2 cm thicker than other brands, with a larger eccentric distance and higher crushing efficiency.

3. Large bearing specifications and strong load-bearing capacity

The use of larger bearings has higher load capacity and is suitable for high-intensity crushing operations.

Other performance highlights of deep cavity jaw crusher

1. Symmetrical welded fuselage structure: PE600×900 and above models adopt welded steel plate structure, which has strong symmetry and good impact resistance. It is also easy to repair by welding if problems occur in the later stage.

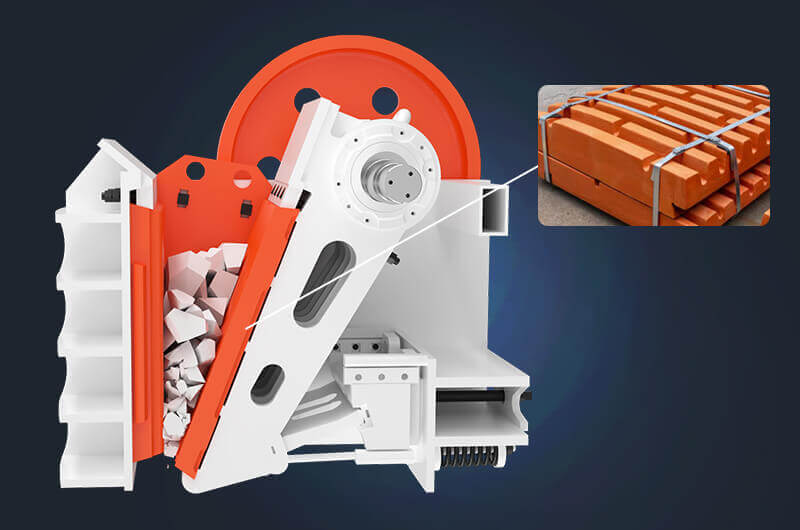

2. The jaw plate can be flipped for use: the upper and lower symmetrical design allows it to be turned over and continued to be used after wear, reducing the frequency and cost of parts replacement.

3. Significant energy-saving effect: single machine saves 15%~30% energy, and system saves more than half of energy.

4. Large crushing ratio, uniform discharge and high output.

5. Simple structure and easy maintenance.

6. Stable operation and low operating cost.

7. Low noise, less dust and high environmental protection standards.

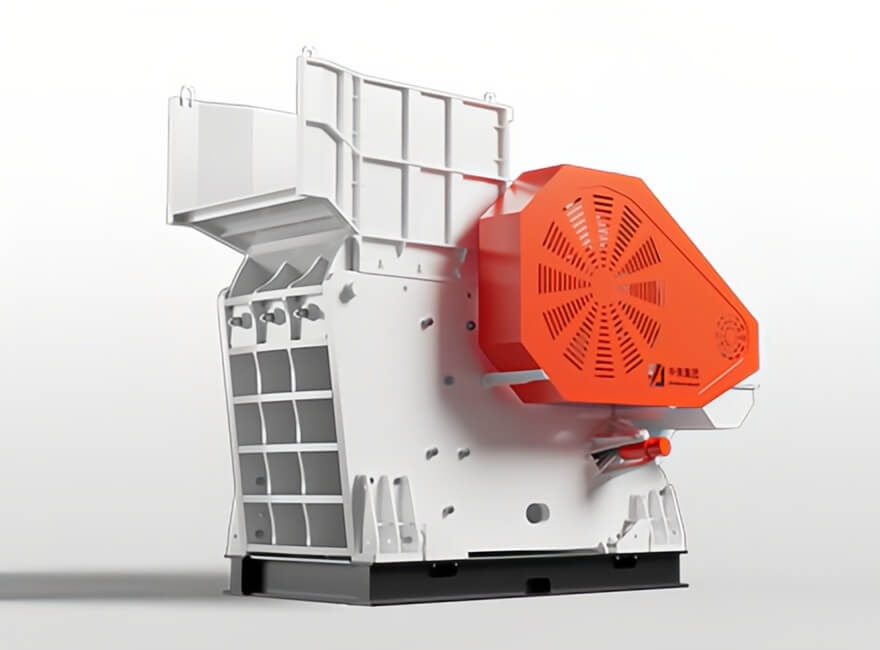

Outstanding advantages of European jaw crusher

1. "V-shaped" symmetrical crushing chamber

The crushing chamber adopts a symmetrical V-shaped structure, and the actual feed opening width is consistent with the nominal width, ensuring smooth feeding and high crushing efficiency.

2. Hydraulic wedge-shaped discharge opening adjustment

The hydraulic wedge adjustment device is simpler, safer and faster than the traditional shim adjustment method.

3. Integral cast steel bearing seat

The bearing seat is an integral cast steel structure, which fits closely with the frame, enhances radial strength, has good dust and water resistance, and extends the service life of the bearing.

4. Centralized lubrication system

Equipped with a centralized lubrication device, the lubrication operation is more convenient and the maintenance efficiency is high.

Other performance characteristics of European jaw crusher

1. Finite element analysis technology: improves the structural strength of the entire machine.

2. The pressure strip + support block can be quickly installed: the fixed jaw plate is more firm and the wear resistance of the movable jaw and the frame is improved.

3. Large bearing + labyrinth seal: greater load-bearing capacity and significantly extended bearing life.

4. Toothed guard plate design: increases the effective length of the jaw plate and improves equipment output.

Whether it's the heavy-duty, durable, energy-efficient, and efficient design of the medium-column deep-cavity jaw crusher or the precise structure and easy adjustment of the European jaw crusher, both demonstrate exceptional performance in diverse applications. Choosing the right crusher not only improves production efficiency but also significantly reduces operating and maintenance costs, making it an ideal choice for modern mining, building materials, metallurgy, and other industries.
